Author Topic: Gaf 3000s questions
Kevin Vines
Junior
Posts: 7
From: Amherstburg, Ontario, Canada
Registered: Dec 2014


 - posted December 05, 2014 04:15 PM      Profile for Kevin Vines   Email Kevin Vines   Send New Private Message       Edit/Delete Post
Hi there..I recently inherited a gaf 3000s as well as a number of super 8 family films, splicers, film editor etc. I am new to projectors and this kind of equipment, although I am familiar with SLR cameras and photography. I am determined to try and get this equipment up and running. When switched on the projector runs forwards and reverse. The speed control also seems to be working and frame rate as well,although the bulb is burnt out. I also noticed the lamphouse is also missing. Would this make it unsafe to run film? The speaker has feedback,I am missing a microphone at present and can't test this further yet. I have checked the belts and the rubber one seems ok but the wire spring belt seem loose but it does power the gears. Is the machine worth putting time and effort into or is it beyond saving. My feeling is no but I need some guidance on this one. I have included some pics. I have resized the pics, if any other pics are needed I can load more....thanks for your help, Im looking forward to some suggestions.
 -
 -
 -

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1482
From: USA
Registered: Jan 2009


 - posted December 05, 2014 06:23 PM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post
Hello Kevin....I have a GAF 3100S that is just about the same. These are actually made by CHINON. It is a smooth running quiet projector and I use mine for transfers due to the varible speed control. I think it would be worth it to get running but you may want to research the bulb prices to see if it is worth it to you. These use a DNE bulb.

It looks like you just need the lamp cover and bulb. The metal spring belts being loose should not be an issue. I would use a test film (something that is not important) to run through it first. You could run a film through it just to make sure that everything is ok without the lamp. I would also clean the film path free of dirt and debris with alcohol.

Well, hope that helps!

Bill

 |  IP: Logged

Kevin Vines
Junior
Posts: 7
From: Amherstburg, Ontario, Canada
Registered: Dec 2014


 - posted December 05, 2014 09:47 PM      Profile for Kevin Vines   Email Kevin Vines   Send New Private Message       Edit/Delete Post
Thanks for the encouragement Bill...Will it be safe to run film without the lamphouse(once I have purchase a bulb..have looked on ebay and found them in the 20 to 30 range)or will this damage the film.
Any idea on what the dimensions of the lamphouse might be, I was thinking of going into a sheet metal shop and having one made...

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1482
From: USA
Registered: Jan 2009


 - posted December 05, 2014 11:02 PM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post
I can give you the dimensions from mine...I will post a picture for you tomoorrow after I'm home from work.

Bill

 |  IP: Logged

Kevin Vines
Junior
Posts: 7
From: Amherstburg, Ontario, Canada
Registered: Dec 2014


 - posted December 05, 2014 11:34 PM      Profile for Kevin Vines   Email Kevin Vines   Send New Private Message       Edit/Delete Post
Fantastic....thanks for the help

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1482
From: USA
Registered: Jan 2009


 - posted December 06, 2014 06:19 PM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post

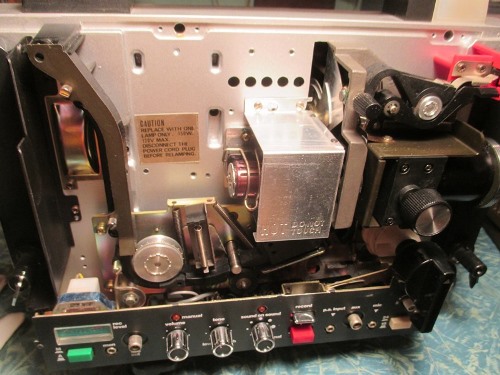

Here are pictures of the lamphouse, it is aluminum.

 -

 -

Here is my drawing of the dimensions

 -

Hope that helps!

Bill

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted December 06, 2014 06:26 PM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
Nice work, Bill!

Have you ever studied mechanical drawing?

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1482
From: USA
Registered: Jan 2009


 - posted December 06, 2014 07:00 PM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post
Yes, in High School. I enjoyed it. My sketch is a little sloppy but thanks!

Bill [Smile]

 |  IP: Logged

Kevin Vines
Junior
Posts: 7
From: Amherstburg, Ontario, Canada
Registered: Dec 2014


 - posted December 06, 2014 07:23 PM      Profile for Kevin Vines   Email Kevin Vines   Send New Private Message       Edit/Delete Post
Hey just want to say thanks...you have been a great help....now hopefully a sheet metal shop can make one at a reasonable price

 |  IP: Logged

Kevin Vines
Junior
Posts: 7
From: Amherstburg, Ontario, Canada
Registered: Dec 2014


 - posted December 08, 2014 02:35 PM      Profile for Kevin Vines   Email Kevin Vines   Send New Private Message       Edit/Delete Post
Just to let you know found a shop that will make me the lamphouse. thanks for your drawings ...will post a pic when its done

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1482
From: USA
Registered: Jan 2009


 - posted December 08, 2014 03:33 PM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post
That sound great...one thing, as I was looking over my drawing I noticed a mistake...the top right hand 2 5/8" should be 1 5/8"

I hope you can get the projector up and running.

Bill [Smile]

 |  IP: Logged

Kevin Vines
Junior
Posts: 7
From: Amherstburg, Ontario, Canada
Registered: Dec 2014


 - posted December 09, 2014 06:05 PM      Profile for Kevin Vines   Email Kevin Vines   Send New Private Message       Edit/Delete Post

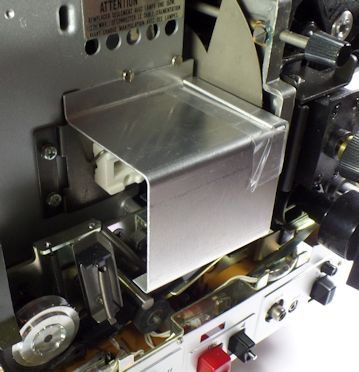

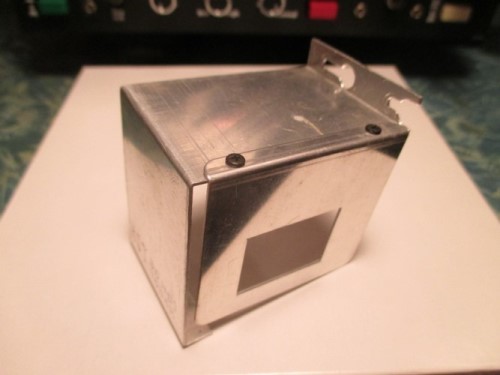

Hey just a quick note ....I picked up my new lamphouse today ,it fits just fine....The only thing I need to do is drill the holes and wait for the bulb..I have included a couple of pics....thanks for all your help bill
 -
 -

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1482
From: USA
Registered: Jan 2009


 - posted December 10, 2014 01:24 AM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post

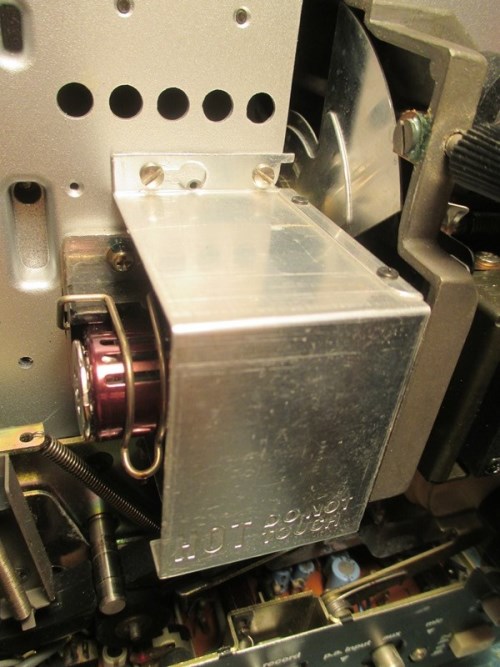

Looking good! Just make sure when you mount it you leave a little space at the front...don't fit it right up against where the shutter is. Here is another picture and you can see the space.

 -

Bill [Smile]

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted December 10, 2014 02:38 AM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
I am amazed you guys are working with unit system, while I get used with metric system.

I cannot imagine how you guys measure for (the exact) 1 5/8" with a ruler. Isn't it easier to say 41mm instead?

Can someone explain.

cheers

--------------------
Winbert

 |  IP: Logged

Martin Jones
Phenomenal Film Handler

Posts: 1269
From: Thetford , Norfolk,England
Registered: May 2008


 - posted December 10, 2014 09:31 AM      Profile for Martin Jones   Email Martin Jones   Send New Private Message       Edit/Delete Post
Winbert,
The measurement system we use is irrelevant. We don't "measure 1 5/8 inch with a ruler" and even if we did that would be just as accurate as "measuring 41mm with a ruler" as long as the rulers were accurately made! If we are making something out of metal we would measure "1 5/8" inch as 1.625 inch with a precision vernier calliper and mark it with a very sharp pointed scribe.
By the way "1 5/8 inch" is 1.625 inch... which if you insist on using "mm" is actually 41.28 mm. You are out by 0.28 mm!
Which method is more accurate now????
(With tongue in cheek)
Martin

[ December 10, 2014, 11:02 AM: Message edited by: Martin Jones ]

--------------------
