Author Topic: Eumig Lens?
Bradford A Moore
Master Film Handler

Posts: 272
From: Provincetown, Ma
Registered: Jul 2005


 - posted June 07, 2017 03:58 PM      Profile for Bradford A Moore   Email Bradford A Moore   Send New Private Message       Edit/Delete Post
I recently bought a Dual 8 Eumig Mark S 807 D. I'm curious about the Suprogon 18-28 Eumig Zoom Lens if it will fit it. My Eumig is currently being worked on. This lens has circular ridges around the base of it, and the zoom lens for the Mark S 807 D doesn't.

 |  IP: Logged

David Roberts
Master Film Handler

Posts: 394
From: Suffolk. England
Registered: Apr 2004


 - posted June 08, 2017 06:47 AM      Profile for David Roberts   Email David Roberts   Send New Private Message       Edit/Delete Post
I think the barrel size is 32.5 for the suprogon,so it should fit . you would have to focus it

The suprogon was made when eumig projectors didn't have the focusing knob on the side of the lamphouse,so it will fit,but would need focusing by turning its mount.
The suprogon had rave reviews when introduced.

 |  IP: Logged

Bradford A Moore
Master Film Handler

Posts: 272
From: Provincetown, Ma
Registered: Jul 2005


 - posted June 08, 2017 08:50 AM      Profile for Bradford A Moore   Email Bradford A Moore   Send New Private Message       Edit/Delete Post
Hi David,

I hope you are rite. That might explain the circular ridges on the base of the lens. I was lucky to buy both of these through Steve Osborne. The lens though was a after thought, after I already had the Mark S 807 D, and Steve didn't have the chance to see if it would fit, and work properly. Now I have to wait a few days till I get the Eumig back from being worked on.

One thing of useful information I found out from Steve about this Eumig model, from a friend of his that specializes on working on Eumig's, Is that thick green Mylar leader can be useful to help clean its path, and especially the sound head which is hard to get at. Before owning a Eumig, I always would remove this leader if on a film I bought, because I thought it was too heavy to go through the path, and might get torn up or stuck, and ruin the film itself. I wonder with some of this leader with a little applied filmrenew would work all the better. Just a thought.

 |  IP: Logged

David Roberts
Master Film Handler

Posts: 394
From: Suffolk. England
Registered: Apr 2004


 - posted June 08, 2017 10:26 AM      Profile for David Roberts   Email David Roberts   Send New Private Message       Edit/Delete Post
hi Bradford,
my reply got a bit fragmented but still makes sense,i think.
the sound heads on the earlier eumigs were so easy to clean,they just un plugged,so you could clean or even change them dead easy.
the thick leader you mention was sold here as "protect a print".
I never used it so don't know if any good.

 |  IP: Logged

Steve Klare
Film Guy

Posts: 6794
From: Long Island, NY, USA
Registered: Jun 2003


 - posted June 08, 2017 10:43 AM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
Protect-a-Print makes me a little uneasy: it's mildly abrasive and since wear is one of the issues we are up against, I'm not big on going that way voluntarily.

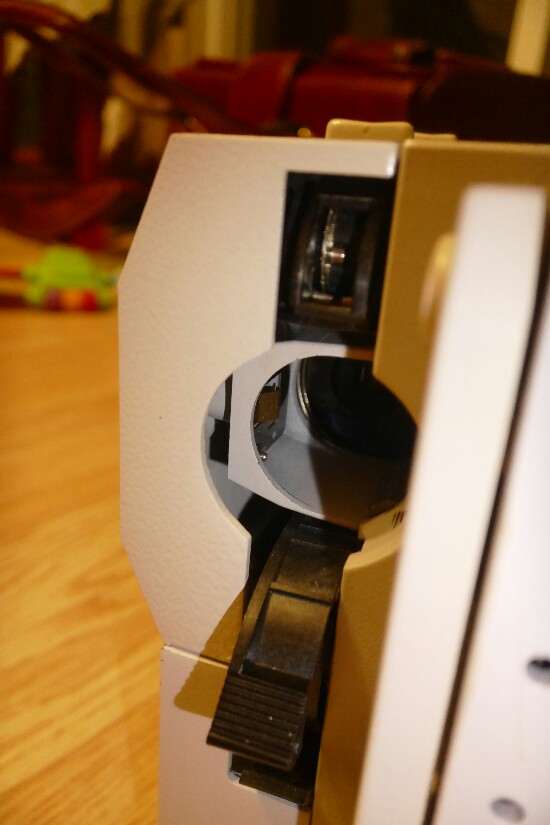

Access to the innards of an 800 series Eumig isn't super-easy, but it's not impossible either. There are little covers that pop off the guides. when you remove them you find tiny pairs of half-rollers. These tend to disappear if they escape, so it's better to lay the machine on it's side before you open these places up. (-put gravity in your favor.)

You can clean inside the sound head too:

Cleaning Eumig 800 Series Heads

-it looks harder than it really is.

These machines aren't the least bit sexy: no pairs of meters in the side and long panels of switches and LEDs. The fuselage is a lot like a box, but mine has never done me wrong ad I'm glad I have it.

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Bradford A Moore
Master Film Handler

Posts: 272
From: Provincetown, Ma
Registered: Jul 2005


 - posted June 08, 2017 11:30 AM      Profile for Bradford A Moore   Email Bradford A Moore   Send New Private Message       Edit/Delete Post
Steve,

Instead of taking every thing apart, how about using regular leader about 20 feet or so, and going over it with alcohol, or filmrenew, but I think the alcohol maybe better on the sound head in general, and running it through a couple of times. I would be then inclined to take out the removable gates, and go over them with filmrenew, which I generally do on my other projectors paths, except for the heads, which I do with alcohol.

 |  IP: Logged

Steve Klare
Film Guy

Posts: 6794
From: Long Island, NY, USA
Registered: Jun 2003


 - posted June 08, 2017 11:57 AM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
It might work, but seeing is believing.

(-Well, at least it was until they invented PhotoShop!)

It's just good to know for a fact there isn't something nasty like a shard of somebody else's film lurking somewhere. I ruined a really nice 600 footer once because of nothing more threatening than a tiny spec of leader tape.

Not to be too graphic, but think of all the medical procedures that are really nothing more than going in and talking a look. There come times when there is just no substitute.

[ June 08, 2017, 01:02 PM: Message edited by: Steve Klare ]

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3318
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted June 08, 2017 10:18 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Have any of you demagnetized the sound heads on your Eumigs?

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Zechariah Sporre
Jedi Master Film Handler

Posts: 550
From: Ladysmith, WI U.S.A.
Registered: Dec 2010


 - posted June 09, 2017 12:42 AM      Profile for Zechariah Sporre   Email Zechariah Sporre   Send New Private Message       Edit/Delete Post

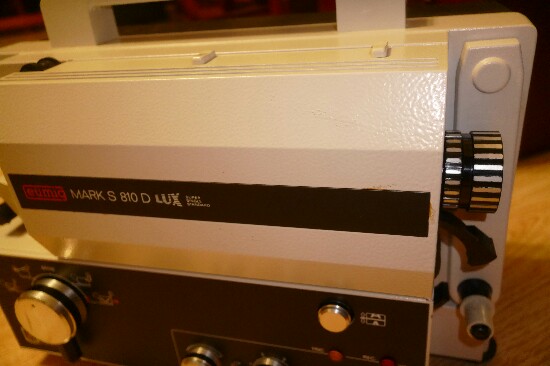

Hi Brad, it has the same lens barrel diameter, however, the focus system is different. In the 800 series I have only ever seen two 810s that takes the spiral style lens barrel. It doesn't have an external zoom knob, you just turn the lens. Of course something could probably be made that would catch the threads.
 -
 -

--------------------
There is a fine line between a hobby and a mental illness

 |  IP: Logged

Steve Klare
Film Guy

Posts: 6794
From: Long Island, NY, USA
Registered: Jun 2003


 - posted June 10, 2017 05:31 AM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
I demag the head every time I clean it.

If it makes a difference, it must be a very subtle one, because I can't hear it.

I suppose in the long term, close exposure to magnetized surfaces can't be great for the recorded sound either, so I guess it's not a bad idea.

It's kind of like this: given the benefits of either demagnetizing your sound heads or flossing your teeth, definitely floss!

-much more bang for the buck!

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Dominique De Bast
Film God

Posts: 4280
From: Brussels, Belgium
Registered: Jun 2013


 - posted June 12, 2017 09:59 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
I never tried the Suprogon 1.0 lens on another projector than the Mark 8 mm (for other Eumig models, I use the 1.2 lens). There is a noticeable improvement regarding the brightness with the Suprogon vs the original lens but the picture is smaller. Maybe it was designed for the super 8 model ?

--------------------
Dominique

 |  IP: Logged

David Roberts
Master Film Handler

Posts: 394
From: Suffolk. England
Registered: Apr 2004


 - posted June 13, 2017 01:22 PM      Profile for David Roberts   Email David Roberts   Send New Private Message       Edit/Delete Post
I think it came out around the time of the mark DL,with its very good light output.
The suprogon focal length was on the long side,so not much use in a small room.

 |  IP: Logged
