One of my two projectors ELMO GS1200 has a problem with the sound. Significant noise from clicks ... especially in optical sound

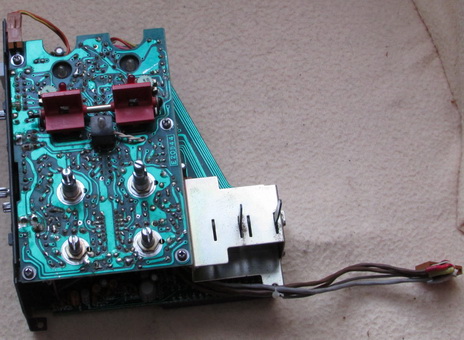

I had in reserve a spare part disassembled from an old projector broke down! An amplifier (see photo) and I did not know if it was in working order. So I removed the defective amplifier from my current projector and I replaced it with the one I had in store! But before I cleaned all the contacts with a special product!
I'm happy because not only I no longer have these parasites in the sound but in addition the optical sound is quite powerful.
It is important to buy used parts when they are put on sale on the web  - [/IMG]

--------------------
Tony

 |  IP: Logged

Joe Taffis
Phenomenal Film Handler

Posts: 1592
From: United States
Registered: Jun 2003


 - posted April 09, 2018 08:59 AM      Profile for Joe Taffis   Email Joe Taffis   Send New Private Message       Edit/Delete Post
Nice work Tony! I also keep many spare parts for my projectors and editor [Smile]

--------------------
Joe Taffis

 |  IP: Logged

Clive Carmock
Film Handler

Posts: 69
From: London, UK
Registered: Feb 2005


 - posted April 12, 2018 02:27 PM      Profile for Clive Carmock   Email Clive Carmock   Send New Private Message       Edit/Delete Post
Sounds a good repair. Another thing to watch out for on GS1200's with optical sound, particularly in dry weather is static build up on the capstan. It affects Xenon versions of the machine mainly though. The non Xenon machine has a copper earthing/grounding strap touching the tip of the capstan in the back of the machine and grounding it to the chassis. Later Xenon machines had an extra transformer in that position to increase voltage to the fan to increase airflow.

In that version of the machine this copper strap is not there, and so static builds up on the capstan and will actually discharge with small sparks. This doesn't affect magnetic playback, but the optical pickup 'sees' the spark and you hear a click or crackle on the sound.

When the weather is more humid you don't get that, but when dry you do, so watch for that as well.

On the amplifier board you show in your picture is a resistor which if cut boost the volume of the optical playback. Elmo seemed to think it needed this resistor to lower optical volume slightly.
