Author Topic: Rescuing a projector
John Armer
Expert Film Handler

Posts: 139
From: Lancaster, UK
Registered: Jan 2015


 - posted August 27, 2018 02:32 PM      Profile for John Armer   Email John Armer   Send New Private Message       Edit/Delete Post
Earlier in the year I got hold of a working Eumig 810D HQS to play standard 8mm films... it was in OK condition and came along with a job lot of films I purchased. I had it serviced and I was quite taken with it and picked up some standard 8mm features to play on it.

Browsing that well-known auction site recently, I saw an advert for another Eumig 810D non-HQS for spares. It was only £18 including postage so I thought it wouldn't harm to have another for parts. It was missing the lens, lamp house cover, control knob, lamp and super 8 gates, but it appeared to have the standard 8mm gates and the Super 8 sprockets.

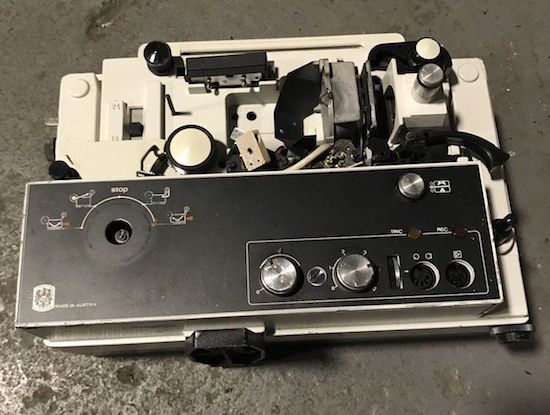

This is it as I received it:

 -

When I received it, it actually looked in OK condition but was pretty grubby. I had a good look over it and powered it up. I was pleasantly surprised when the motor ran... but when the drive train was engaged it ran slooooooow.

Part of the reason I bought it was I figured it would be a good way to have a tinker and to get familiar with these sturdy little projectors. I thought if I couldn't get it working it was no real loss but if I could, it would be an added bonus.

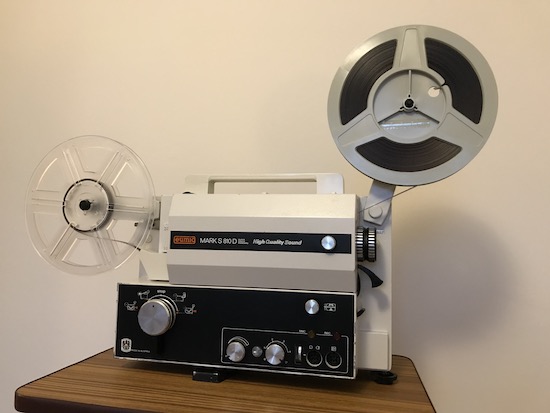

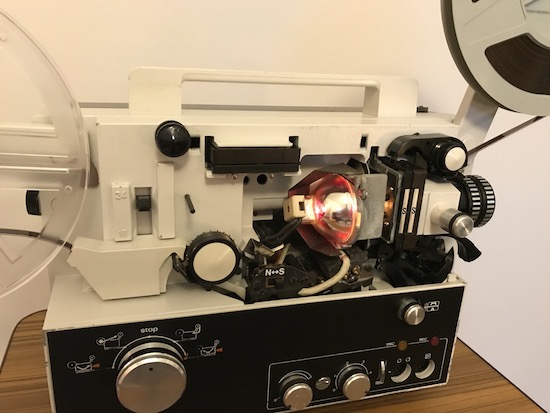

So I spent a few hours cleaning the old grease off the gears and adding new plastic-safe grease to the gears and some turbine oil to the bearings. With a clean of the rubber drive discs and some adjustment of the motor it now runs at 24 fps instantly and projects quietly and smoothly... it seems to have had less use than my other 810D too. I find that older acetate films are noisier and not quite as steady as later polyester prints probably a combination of the older films shrinking and this being a single claw design. I swapped out parts temporarily from my other 810 to get this one up and running (and luckily I had a spare lens) and this is what it looks like now:

 -

 -

I see that Edwin Van Eck can help with the main control knob so I think I'll treat it to a new 3D printed part for that, and I've got feelers out to someone for the lamp house cover and Super 8 gates and std 8mm sprockets, but just in case that doesn't materialise, is anyone breaking a Eumig 807 / 810 etc and has a spare lamp house cover and Super 8 gates and std 8mm sprockets for sale?

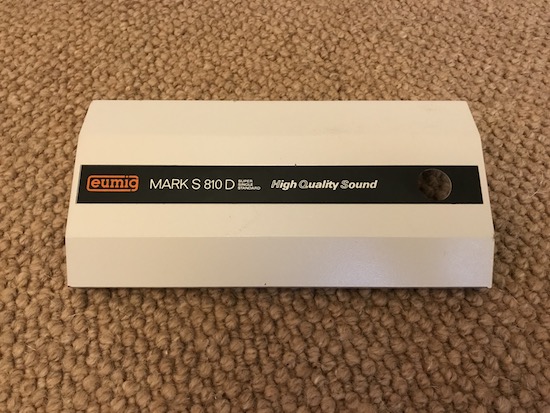

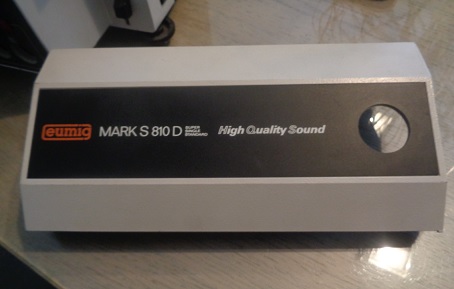

This is the lamp house cover that I need:

 -

I'm not fussy which model Eumig it comes from - as far as I am aware the 807 / 810 parts are interchangeable.

Incidentally, I've never seen quite so much shredded film in a projector: this is what I managed to retrieve from inside: [Eek!] [Eek!]

 -

So the little Eumig is up and running again and will live to project plenty more films in the future... happy days!

 |  IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003


 - posted August 27, 2018 02:46 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Well done John! One of the most satisfying aspects of this great hobby is restoring a non-working projector back to its original full working condition. Looks like you have accomplished just that! [Smile]

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Brian Fretwell
Phenomenal Film Handler

Posts: 1785
From: London, UK
Registered: Jun 2014


 - posted August 27, 2018 04:04 PM      Profile for Brian Fretwell   Email Brian Fretwell   Send New Private Message       Edit/Delete Post
By the looks of it even a 710D cover would fit, though it would be grey. I don't think Eumig changed cast past if they could get away with old ones in different paint as a new mold would be expensive.

Well done with the restoration.

 |  IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016


 - posted August 27, 2018 05:43 PM      Profile for Will Trenfield   Email Will Trenfield   Send New Private Message       Edit/Delete Post
Good man. It's a lovely feeling when you get a poorly machine working well again. All that film and leader you found inside is amazing. Didn't the previous owner wonder what had happened to his films?

 |  IP: Logged

Kev Morrison
Film Handler

Posts: 76
From: Land of the Mouse, USA
Registered: Feb 2018


 - posted August 28, 2018 12:51 PM      Profile for Kev Morrison   Email Kev Morrison   Send New Private Message       Edit/Delete Post
John,

Well done! I love to see something like this old projector saved from the dump, and brought back to working condition.

Nice job with describing the steps you took to get this old girl up & running. I found a similar "how to" document on the 'net describing how to restore a neglected viewer editor to like new condition - I've restored four grubby & dirty viewers to great physical and operating condition using this doc.

Thanks for describing how you worked on your projector. I suspect that in the near future, I also will be shopping for an Elmo or Eumig projector, and can use the advice!

 |  IP: Logged

Osi Osgood
Film God

Posts: 10204
From: #399R K.O.A. Mountian Home, ID. 83647
Registered: Jul 2005


 - posted August 29, 2018 11:22 AM      Profile for Osi Osgood   Author's Homepage   Email Osi Osgood   Send New Private Message       Edit/Delete Post
A very good read! I like these "repair posts' because, even if it doesn't relate to the specific projector I want to work on, there are some "universal" repair info that i can use on any projector, (as a general rule). [Smile]

--------------------
"All these moments will be lost in time, just like ... tears, in the rain. "

 |  IP: Logged

Nick Vermeirsch
Expert Film Handler

Posts: 110
From: West-Vlaanderen, Belgium
Registered: Jan 2014


 - posted August 29, 2018 11:46 AM      Profile for Nick Vermeirsch   Email Nick Vermeirsch   Send New Private Message       Edit/Delete Post
Hi John!

Maybe i can make you happy with some parts of my old S810D HQS that i don't use anymore. Some parts are missing, but i would be happy to give you what you can use! Just send me an email! nickvermeirsch@gmail.com

 -

 -

 |  IP: Logged

John Armer
Expert Film Handler

Posts: 139
From: Lancaster, UK
Registered: Jan 2015


 - posted August 29, 2018 01:04 PM      Profile for John Armer   Email John Armer   Send New Private Message       Edit/Delete Post
Thanks Nick, I'll be in touch.

 |  IP: Logged

Osi Osgood
Film God

Posts: 10204
From: #399R K.O.A. Mountian Home, ID. 83647
Registered: Jul 2005


 - posted August 31, 2018 11:42 AM      Profile for Osi Osgood   Author's Homepage   Email Osi Osgood   Send New Private Message       Edit/Delete Post
Now I'm getting in the mood to "rescue" my Yashica!

--------------------
"All these moments will be lost in time, just like ... tears, in the rain. "

 |  IP: Logged
