Author Topic: Use longer arms!
Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 13, 2019 11:48 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
People ask me about using longer arms! Well you can! If you have the St800 or GS800. Use the 1200 ft. Arms. For ST800 use ST1200 arms. For GS800 use GS1200 arms. Only draw back is the arms will not fold all the way! These arms I have in stock! Longer shows are better!

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted February 17, 2019 04:07 PM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
This is an interesting one, Leon.

I have an ST-800 standing next to an ST-1200HD and actually the 1200 foot reel arms would fold in on the ST-800 because the 800 foot arms fold in with a gap between the ends.

It gets more complicated where the last guide before the takeup reel is concerned. The ST-800 guide reaches up to the edge of an 800 foot reel and won't clear a 1200 foot reel even with the longer arm.

The last guide has a roller in the middle of it where the same guide on the ST-1200 ends (in 1200 Foot mode). It should be possible to cut the ST-800 guide short after this roller or maybe swap in the guide from an ST-1200.

I may try this on one of mine. 1200 Foot machines are very useful.

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Chip Gelmini
Phenomenal Film Handler

Posts: 1733
From: Brooksville, FL
Registered: Jun 2003


 - posted February 17, 2019 07:24 PM      Profile for Chip Gelmini     Send New Private Message       Edit/Delete Post
I once considered this very thing when I had a ST800. The one main reason why I did not follow through was the thought of a very heavy 1200 foot reel and based on the interior or slightly forward rear feet My only vision was the ST 800 popping a wheelie before the end of the reel.

Notice on the ST1200 the rear feet are closer to the rear of the box!

Mission to modify the ST800 aborted.

Steve: build a long play spooler device and insert any projector to it.

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted February 17, 2019 07:36 PM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
It's a thought, Chip, but I project from the dining room table and two machines and a mixer pretty much full time is already pushing my luck! [Wink] (It's my wife's house too!)

Good point about the location of the rear feet: I'll have to hang an equivalent weight on the rear spindle and see what happens. (-for Science!)

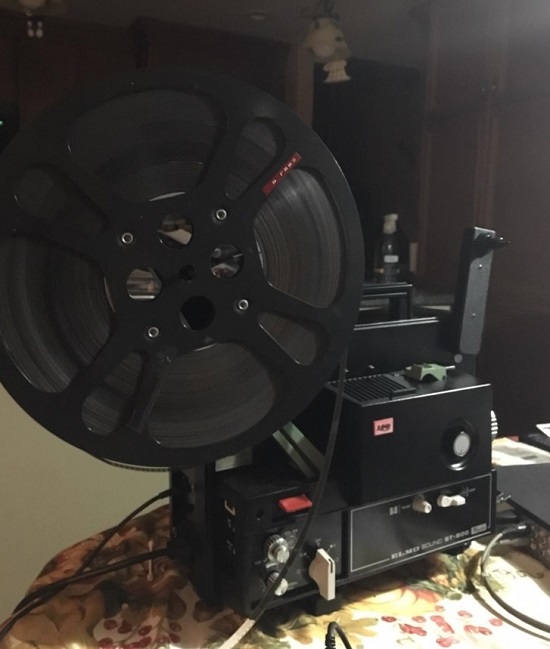

OK: I gave it a try and the ST-800 stayed firmly on the front leg:

 -

Actually, if either of the two had the feet moved to the back, maybe it should have been the ST-800: the power transformer will be the single heaviest part and the ST-800 has it mounted astern (ST-1200 has it mounted topside and amidships: between the front and back legs even in ST-800 position.).

Where this could run into trouble is the ST-1200 has a much stronger rewind: the ST-800 sometimes overpowers the front clutch at the end of a full 800 foot rewind. As it stands it may not tolerate rewinding 1200 feet.

(-but if you are among the folk that use rewinds...)

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017


 - posted February 17, 2019 10:21 PM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post

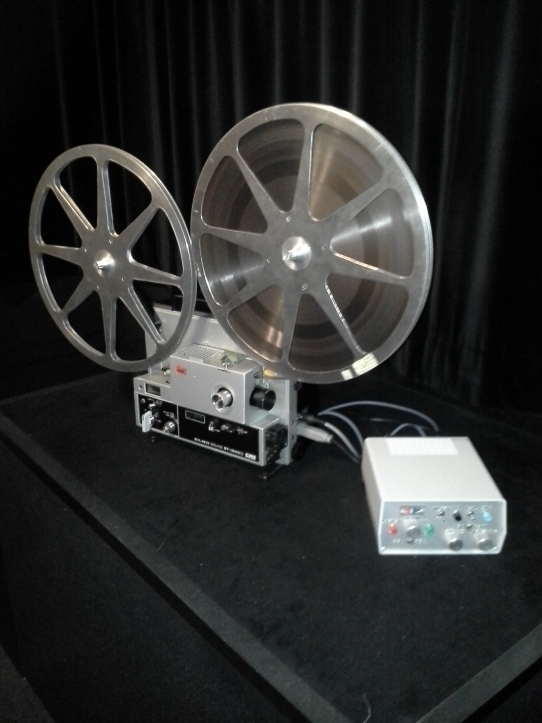

ST 1200 with 3000ft Reels.
And the Machine could be put in the original Transport Case.

 -

 -

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted February 18, 2019 05:19 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Many years ago I bought some Supa Spools from UK's Tony Churcher for my ST-1200. The spools were heavy steel, same OD as the standard Elmo 1200ft but with a smaller centre to accommodate 1600ft.
Sounded a great idea. But didn't work. [Embarrassed] The spools were too heavy and just slowed down and stopped before taking up a full spool.

--------------------
Maurice

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 18, 2019 12:49 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Thomas, How does it do when rewinding? The st1200 always had rewind problems! They would slow down towards the end of reel!But that problem can be taken care of!

 |  IP: Logged

Ethan S. Knightchilde
Junior
Posts: 13
From: Denver, CO, USA
Registered: Mar 2013


 - posted February 18, 2019 12:53 PM      Profile for Ethan S. Knightchilde   Author's Homepage   Email Ethan S. Knightchilde   Send New Private Message       Edit/Delete Post
Leon--what is the solution for the ST1200 rewind slow down?

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 18, 2019 01:05 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Ethan, Take the rewind gear. Its the double one . one small and one large. Take it apart and clean it. Then take the spring and stretch. More you stretch more the strength! Put all back together. Then try it! OK Ethan! Also clean with alcohol!

 |  IP: Logged

John Capazzo
Master Film Handler

Posts: 421
From: Hillside, NJ USA
Registered: Jan 2004


 - posted February 18, 2019 01:15 PM      Profile for John Capazzo     Send New Private Message       Edit/Delete Post
Leon, I've had success with rewind on ST 1200 that way, too; but not for long. I found tighter motor belt and that solved the problem. They're supposed to be square, but I only found a round belt that was smaller; about 3-4 mm smaller in circumference. That clutch assembly is very fickle and doesn't have the spring as the D and HD and only one belt as opposed to two motors belts the D and HD has. A smaller motor belt has an effect on the way it plays in FWD and fast rewind. I've come across dozens of these machines. Not only that, but only one sprocket on each side for the rewind belt. You can also make the rewind belt pulleys the same as the D and HD if you have the extra parts. The housing is the same on the body of the machine.

--------------------
"the image is about 30 feet ahead of us."

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 18, 2019 01:25 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
John, It always worked for me! By stretching the spring! And clamping it down with robogrips! They put pressure on it! Or replace the spring with a more thicker one! The more pressure the more strength! Makes sence!

 |  IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006


 - posted February 18, 2019 02:02 PM      Profile for Graham Ritchie   Email Graham Ritchie   Send New Private Message       Edit/Delete Post
Wow [Cool]

That's impressive Thomas [Smile]

Folks I think if you are going to use larger than 1200ft reels then a long play unit is the way to go, especially with the GS1200 with its dinky toy take up motor.

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 18, 2019 02:47 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Thomas, Were did you get the large reels? I use the supaspools that are 2400 ft. Very light weight! And I still have room! I could use reels like that! And my modified rewind would handle it! I never new they had even larger reels! Those Elmo GS1200 motors are very strong! They hold up pretty good!

 |  IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006


 - posted February 18, 2019 03:36 PM      Profile for Graham Ritchie   Email Graham Ritchie   Send New Private Message       Edit/Delete Post
The first time I pulled one of those GS1200 motors apart I was disappointed to see how small the diameter of the commutator was. Its little wonder they wear out, plus its only got two tiny brushes running on it to do all the work. I can understand fitting long arms when the projectors were new 40 years ago, but with wear due to there age now, fitting long arms is asking to much from worn motors.

The best bet really, is buying or making your own long play unit, and limit projector arms themselves to no more than 1200ft of film.

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 18, 2019 03:50 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Graham, I have the motors in stock! They are still sealed from Elmo. So I'm in good shape for motors! I have plenty!

 |  IP: Logged

Lee Mannering
Film God

Posts: 3216
From: The Projection Box
Registered: Nov 2006


 - posted February 18, 2019 04:03 PM      Profile for Lee Mannering     Send New Private Message       Edit/Delete Post
Weren't projectors manufactured to a certain tolerance?

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 18, 2019 04:26 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Not the GS1200! I will tell that I had the motors on my machine for years! And no problems! So far no takeup and rewind motor replacement! I'm telling you these motors last! The only thing I had that went bad is the motor gear. But I took care of that! I replaced them with the all brass ones. They will never go bad! Made to last! I know this machine inside and out! I worked on to many of them! If I get around to it I will take some pictures of my machine ! For all to see!

 |  IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006


 - posted February 18, 2019 06:40 PM      Profile for Graham Ritchie   Email Graham Ritchie   Send New Private Message       Edit/Delete Post
Here is a video I made a while ago regarding those motors...note the grime and wear on the brushes and commutator. It takes years of use to get like this, most of the problems with the take- up/rewind motors is down to this..... old age.

https://vimeo.com/260705521

PS I do hope no one here rewinds large reels of film on the projector, if you do you are asking for trouble with those old motors/gears.

Use hand winders folks [Smile]

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted February 18, 2019 07:05 PM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
Sometimes longer arms just don't work.

-when you reach the point where you can't drive the car without opening the windows you've taken it too far!

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 19, 2019 11:11 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Thomas, On your machine the ST1200. It looks like a GS1200 focus knob on it ? I have put several on the st1200. And it looks good. It sticks out. Which makes it easy to focus! I have some left in stock! Still sealed!

 |  IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017


 - posted February 19, 2019 10:34 PM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Hi Leon!
First I will say that rewinding this big reels on the machine is impossible. I only use a seperate selfmade Motor Rewinder for all my full length Films. Smaller Reels can be rewind on this ST 1200 as well as on an original one.
The Focus Knob is a GS1200 one because of using my Focus remute Unit which is made for thie GS Knob.
I have installed a seperate take up gear Motor n this Machine because of using the ESS Sync System which was copying from the GS Machine. I was in the little grey Box.
I have all my GS 1200 Machines moddet with long Arms since 5 Years ago. All running very well.

 -

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 20, 2019 11:21 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Thomas,I'll stick with the 2000 or 2400 ft reels on!y! My machine rewinds these reels with ease! That's large enuff!. Those Elmo motors the 5-6 volts are tough! They hold up pretty good!

 |  IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017


 - posted February 20, 2019 10:16 PM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Hi Leon!
Yes that is true, my GS 1200 are rewinding easy too. But this modified ST1200 does not.
The 3000ft Reels I have made by my self. They are large enough to play ALIENS or Magnificent Men without a Break.

Hi Graham!
This Motors are strong enough to handle this big Reels without any Problem. The Gear inside the Elmo make them even stronger. And on this little Control Board you can trimm the Potis to get more Torque.

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 958
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted February 21, 2019 10:50 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Thomas, you did a great job on those reels! Also try this on your st1200 rewind! Take the double rewind gears. Take it apart and clean it. After that take the spring and stretch it. I use a tool called Robocrips! They do the job! Or if you have a heavier spring use that. The pressure the more strength! That rewind will zip away! Again more pressure the more strength! Again great reel job!

 |  IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017


 - posted February 21, 2019 11:29 AM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Leon This ST 1200 is not driven by the original Motor.
I have spend him a DC Motor for ESS Sync like the GS 1200 has.
The original Main Motor only drive the Fan for Lamp cooling.
So it is not so strong to rewind very big Reels.

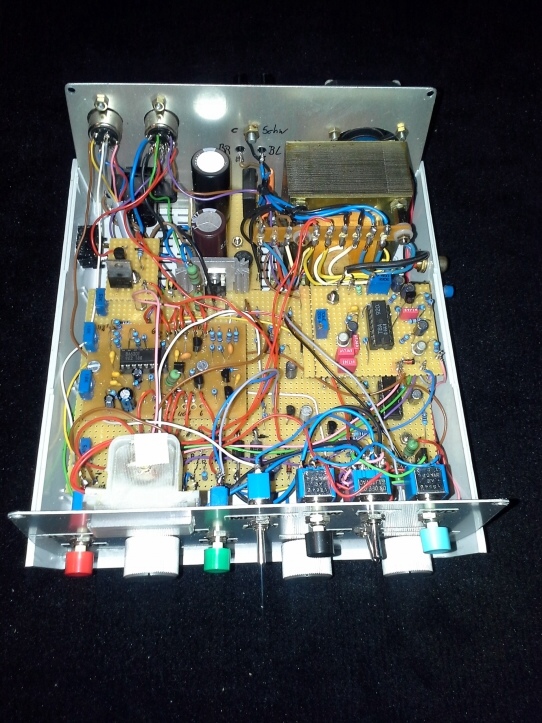

Look at the Inside of this Machine and the electronic Box.

 -

 -

 |  IP: Logged
