Author Topic: Midget Movie a camjector?
Carlo Saino
Junior
Posts: 5
From: Rivalta di Torino, Italy
Registered: Aug 2018


 - posted August 04, 2018 03:10 AM      Profile for Carlo Saino   Email Carlo Saino   Send New Private Message       Edit/Delete Post

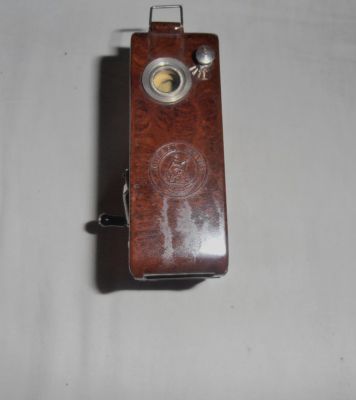

I'm new on this forum, thanks for accepting me, I write from Italy and I apologize for my bad English, I recently found a Midget Movie, does anyone have any information about it?
Is it just a small projector or is it also a manual camera?
 - [/IMG]

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5071
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted August 04, 2018 04:10 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Carlo
It looks very much like a hand turned Pathe-Baby camera, model C.201, but missing its lens.
They were made in France between 1923 and 1930.
See the attached:-
http://www.pathefilm.uk/95gearpathe.htm

--------------------
Maurice

 |  IP: Logged

Dominique De Bast
Film God

Posts: 3813
From: Brussels, Belgium
Registered: Jun 2013


 - posted August 04, 2018 05:02 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Welcome to the forum, Carlo ! Do you have other 9.5 equipement or films ? It's always nice to see ninefivers from all around the world.

--------------------
Dominique

 |  IP: Logged

Carlo Saino
Junior
Posts: 5
From: Rivalta di Torino, Italy
Registered: Aug 2018


 - posted August 04, 2018 08:29 AM      Profile for Carlo Saino   Email Carlo Saino   Send New Private Message       Edit/Delete Post
Thanks for the reply,
no it is not a Pathè, meanwhile in the Grahame N 'Web Pages 9.5MM EQUIPMENT CATALOGUE, I found this camera / projector, Mr. Grahame owns one and kindly described it to me as a puzle ..., we will try to solve it .. .

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5071
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted August 04, 2018 10:30 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
On referring to Grahame's page once again following Carlo's reply we have the following:-
A camera/projector made by Midget Movie Ltd, Garford Street. London E14 which probably comes from around 1932.

--------------------
Maurice

 |  IP: Logged

Carlo Saino
Junior
Posts: 5
From: Rivalta di Torino, Italy
Registered: Aug 2018


 - posted August 04, 2018 11:45 AM      Profile for Carlo Saino   Email Carlo Saino   Send New Private Message       Edit/Delete Post
I have just found one at the NATIONAL SCIENCE AND MEDIA MUSEUM
BRADFORD:

The Midget Movie Camera and Projector Collection: NMeM - Cinematography Object Name: cine camera-projector Maker: Midget Movie Limited Place Made: London, Greater London, England, United Kingdom Materials: bakelite; glass; white metal (unknown); brass (copper, zinc alloy)
Measurements: overall: 110 mm x 55 mm x 116 mm,Description: The Midget Movie Camera and Projector. Plastic body movie camera and projector for 9.5mm. Fitted with a simple lens with rotating plate with four apertures. Oscillating shutter, claw drive, concentric feed and takeup reels.. Built in 6v lamp for projection. Hand turned. Simple wire frame finder. Darkroom loaded. Midget Movie Ltd.
Object Number: 1990-5036/3174
Credit Line: The Kodak Collection at the National Media Museum, Bradford

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5071
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted August 05, 2018 02:31 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
The very earliest cinematographers used dual camera/projectors like Lumiere's CINEMATOGRAPHE, and there was the BIOKAM, and the BIRTAC of Bert Acres.
Later, for 9.5mm, was the SCREENUS, the MIDAS, and the CAMPRO. The latter accepted the standard Pathe chargers.
http://www.pathefilm.uk/95gear/95gearcampro.htm

--------------------
Maurice

 |  IP: Logged

Carlo Saino
Junior
Posts: 5
From: Rivalta di Torino, Italy
Registered: Aug 2018


 - posted August 05, 2018 03:23 AM      Profile for Carlo Saino   Email Carlo Saino   Send New Private Message       Edit/Delete Post
interesting, the last three I have them all, actually I have four, because there are two versions of Campro, Campro and Campro MK1.
It is interesting to note how this type of machines that are commonly called camjectors, developed in a short period from 1930 to 1933 and only in England in London.

 |  IP: Logged

Luigi Castellitto
Jedi Master Film Handler

Posts: 544
From: Campobasso, Italy
Registered: Jun 2013


 - posted August 05, 2018 04:15 PM      Profile for Luigi Castellitto   Email Luigi Castellitto   Send New Private Message       Edit/Delete Post
Interesting, I had never seen it before. I knew the other camera/projctor models, not this.
Carlo, it work?

 |  IP: Logged

Carlo Saino
Junior
Posts: 5
From: Rivalta di Torino, Italy
Registered: Aug 2018


 - posted August 06, 2018 11:25 AM      Profile for Carlo Saino   Email Carlo Saino   Send New Private Message       Edit/Delete Post
Luigi, no unfortunately it doesn'work, the internal chassis in zamak is broken, I'll try to fix it.

 |  IP: Logged

Trevor Adams
Jedi Master Film Handler

Posts: 743
From: Auckland,New Zealand
Registered: Jun 2003


 - posted August 14, 2018 10:52 PM      Profile for Trevor Adams   Author's Homepage   Email Trevor Adams   Send New Private Message       Edit/Delete Post
https://imgur.com/a/js6l8KE

Inside the wee beast!

--------------------
Trevor
