Author Topic: The GS1200 main motor News.
Leon Norris
Jedi Master Film Handler

Posts: 655
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted December 23, 2018 12:22 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
I found out that the main motor for the GS1200 Elmo projector. Is in other super 8 machines. Like the GAF models , 2000 s, 3000 s, 3100 s, and the sankyo models. There could be more? We will see! Leon Norris.

 |  IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 109
From: Erwitte, Germany
Registered: Oct 2017


 - posted December 25, 2018 01:06 AM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Hi Leon!
Have all this Motors the Generator Coil on Board?
I did not use the original Elmo Motor since many Years.
This one is much better.

 -

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 655
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted December 25, 2018 10:06 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Hi Thomas, the motor you are using I never seen before! How much better is it? And how did you get it. And what type of motor? Please reply! Leon Norris.

 |  IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 109
From: Erwitte, Germany
Registered: Oct 2017


 - posted December 26, 2018 01:21 AM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Hi Leon!

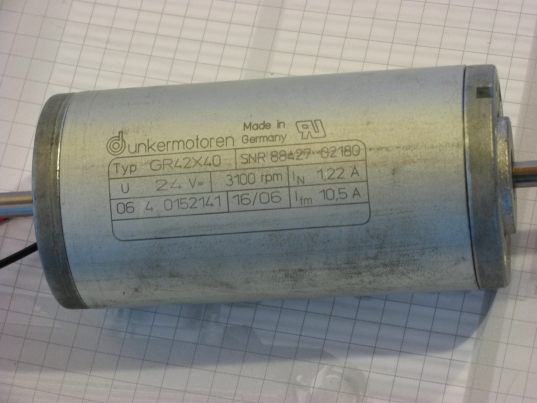

This is a german DUNKER Motor wich is complete Ball bearing on both ends. It is a 24V Type called GR 42x40. Sometimes you can find it on Ebay here in Germany. But this Motor has no Generator Coil. If you have an old original GS 1200 Motor you can get the Coil of it. If you dont have ne you must try it with a hole Disc and an optical Sensor.

 -

 |  IP: Logged
