Posted by Luigi Castellitto (Member # 3759) on November 29, 2017, 11:31 AM:
Guys, an help, I should do an offer on a Zeiss Ikon Moviscop.
We know that this model of viewer exists for 8mm and 16mm, with the same body (change only color, presence of rewinders, etc.) and it has always been said that, to see the difference of gauge, you need to see the two black spools, if are thick or thin (and, of course, the width of film window, but it's more difficult to do it from afar).

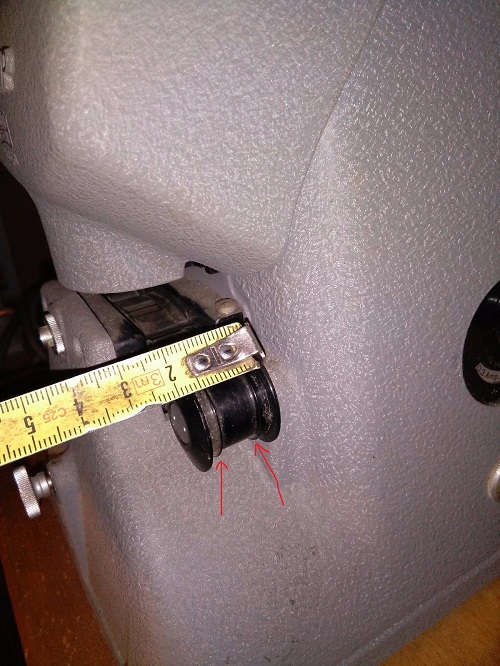

The kind seller sent me a photo, but I'm doubtful.
The spool is wide like 16mm, but has two central "strips" (marked by the red arrows), as if for "center" the 8mm film in the middle of sprocket...
So, is it a 8mm or 16mm model?
I've done research on the internet, to tell the truth, the 16mm versions are there with both the "strips" or also without!
8 or 16? [Smile]
Thank you!

Posted by Paul Browning (Member # 2715) on November 29, 2017, 11:45 AM:
Tape shows a measurement of 16mm across the guide, plus you have two drive sprockets equal about centre of the guide, so I would say this is a 16 mm editor .....
Posted by Luigi Castellitto (Member # 3759) on November 29, 2017, 02:07 PM:
Thank you, Paul, is certainly 16mm.

Only, I can't understand if of the 16mm version also exists versions with the black spools with two "stripes" market with the red arrows in photo and without the two "stripes".

And what's the use of those stripes on sprocketa? Not best a swimmingly sprockets?

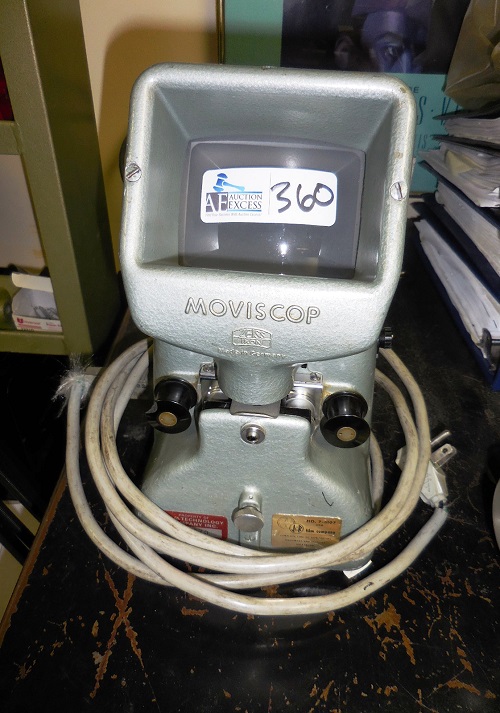

Another version with black sprockets with "stripes":

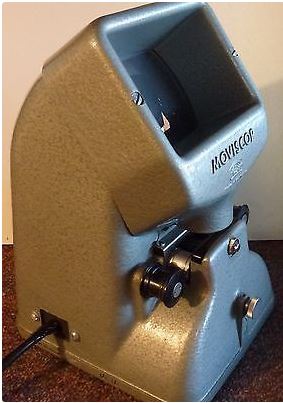

A version with black sprockets without "stripes" (maybe! check Google for other photos):

Posted by Fabrizio Mosca (Member # 142) on November 29, 2017, 02:14 PM:
The stripes are for touching the film only between the frame and the soundrack/perforations. The other type of roller is curved and touches the film only on the edges
Posted by Luigi Castellitto (Member # 3759) on November 29, 2017, 03:36 PM:
Thank you, Fabrizio, I see that even the 8mm has the same strip, but one, of course, which touches the same points taht you say (though, perhaps, not with precision).
I had the 8mm version, but I didn't remember this detail, and I don't know if even for the 8 there is a non striped version.

Posted by Luigi Castellitto (Member # 3759) on November 30, 2017, 02:25 AM:
Another curiosity: another difference from version to version, independently of type of rollers present, is the presence or absence of the presser on the film guide.
With or without also in 8mm versions.
Can also see it in the pictures above.
