Posted by Mich Asquith (Member # 6733) on December 04, 2018, 08:45 AM:

Hello, I have the 'Supersound 8' 880 projector which is my dads from the early 80's.

i cant even locate a manual to help me identify the part!

The short lenght belt that connects the cogs on the side is broken and I'm trying to source this in the U.K so I can view and flim our old family videos.

I have attached a few pictures that I have uploaded to my Google Drive account if any one can help!

https://drive.google.com/drive/folders/12pCQVD3YYMQc_sAyD3Fe8GAlscyMCXXR?usp=sharing

Posted by Luigi Castellitto (Member # 3759) on December 04, 2018, 06:32 PM:

Mich, maybe you've already solved it, but this seller has the right belt:
https://www.ebay.it/itm/Supersound-8-Cine-Projector-Drive-Belt-Main-Motor-Belt-Toothed-/401288357045
The tootheds are more rare, but often found. [Smile]

Posted by Mich Asquith (Member # 6733) on December 05, 2018, 10:10 AM:

Hello Luigi, this eBay seller has already responded that this belt is not suitable for the part I require. The belt they are selling is for the actual Drive on the otherside of the projector!

He doesnt even have a manual to help me source the part name. [Confused]

Posted by Luigi Castellitto (Member # 3759) on December 05, 2018, 01:54 PM:

True, the seller is right. That part does not seem to need a belt, you only have to have that "motor" belt and for the two spindles. These three belts go all the way to the back of the projector, no front, it seems.

 -

 -

The rest of the photos are on the good Van Eck site. [Smile]
https://van-eck.net/itable.php?lang=en&size=0&cat=film&merk=267&type=8

Posted by Nantawat Kittiwarakul (Member # 6050) on December 05, 2018, 09:29 PM:

Uh,oh. [Roll Eyes]

You may REALLY need that tooth belt to drive the rest of the machine.

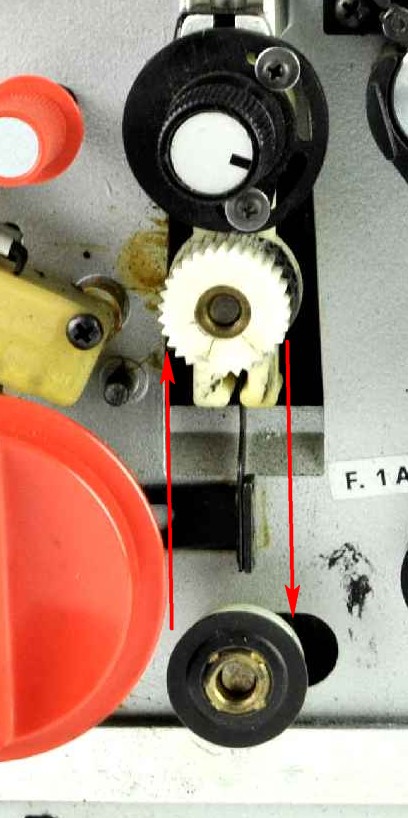

Looking on the front,the motor seems to drive the upper pulley.

 -

Which will then drive the (corroded)rubber wheel on the main shaft (simply put,"Eumig"design). The pulley will swing back/forth for fwd/rev action,and will ride in/out for speed change.

 -

I believe that the needed belt should be some sort of "off the shelf" standard toothed belt as I'm now looking into a dot matrix printer sitting next to me,which uses some fine-pitch toothed belt to drive the print head. The pitch seems similar to that motor's belt.

In extreme case,it might be necessary to replace both pulleys to use simpler round o-ring as the driving belt. The actual motor/drive pulley ratio wouldn't be so critical since it will drive that variable-ratio disc anyways.

Posted by Mich Asquith (Member # 6733) on December 06, 2018, 07:13 AM:

Firstly thank you for the replies and giving me some ideas.

I might try and work out the circumference then dividing that figure by Pi with give me the inside diameter to possible drive it.

Obviously it will require a V/toothed belt.

Posted by Luigi Castellitto (Member # 3759) on December 06, 2018, 12:52 PM:

True, even if I didn't understand the function of the belt. I'm intrigued!
But... that seller on ebay sells toothed type, those 3 behind are not toothed, why he says it's not for that specific use? Neither that motor and for the arms belts seem to originally toothed.

Posted by Mich Asquith (Member # 6733) on December 07, 2018, 09:37 AM:

If you would like me to post more photos of this Projector let me know?

Would also be nice if anyone had anymore details about the manufacture, manuals and its history as all I know its made in Italy. Hopefully in the years to come someone might come across this thread [Wink]

Posted by Luigi Castellitto (Member # 3759) on December 08, 2018, 07:23 PM:

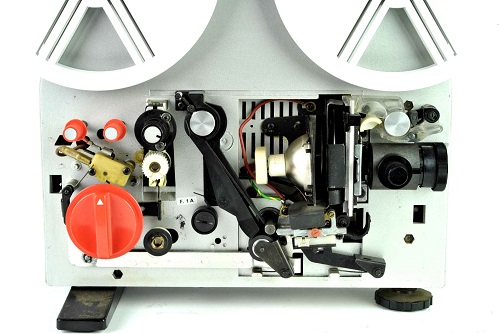

Mich, I took photos also from the Van Eck site, I didn't know this projector, I discovered thanks to you that it is Italian. [Smile]
I am curious to know news from those who know more, especially the function of the front belt.

Posted by Mich Asquith (Member # 6733) on December 10, 2018, 08:09 AM:

Luigi and all, I hope you all had a great weekend!

So I decided to open the back panel and take some more photo trying to help give me some more clues.

Manufactured on 11th Jan 1978.

I have added more photos to my Google Drive account with the internals.

https://drive.google.com/drive/folders/12pCQVD3YYMQc_sAyD3Fe8GAlscyMCXXR?usp=sharing

Belt lenght is approx 207mm/4mm width so now trying to source.

Mich

Posted by Luigi Castellitto (Member # 3759) on December 11, 2018, 07:00 PM:

Ciao at you! [Smile]
That the belt only used to change the speed from 18fps to 24fps?
I had found an image of similar model of same brand (IMAC), a Sonix 8, with similar technologies. See the photos and the front belt, It did not seem to me toothed.

https://www.ebay.it/itm/PROIETTORE-IMAC-SONIX-8-CINEPRESA-KOHKA-713-PER-SUPER-8-VINTAGE-PERFETTO/173651783368?hash=item286e73eec8:g:yPEAAOSwKXdaiwXr:rk:4:pf:0

Instead, this seller:

https://www.ebay.it/itm/DISCHI-IN-GOMMA-DI-RICAMBIO-2-x-PROIETTORE-IMAC-SUPERSOUND-8-MOTORE/264074363309?hash=item3d7c0f01ad:g:DVEAAOSwpdBbMg8~:rk:8:pf:0

has spare parts for Supersound 8, maybe not the right belt but could help with some advice, such as the measurement of the aforementioned belt, so you can try a generic.

Posted by Nantawat Kittiwarakul (Member # 6050) on December 11, 2018, 07:18 PM:

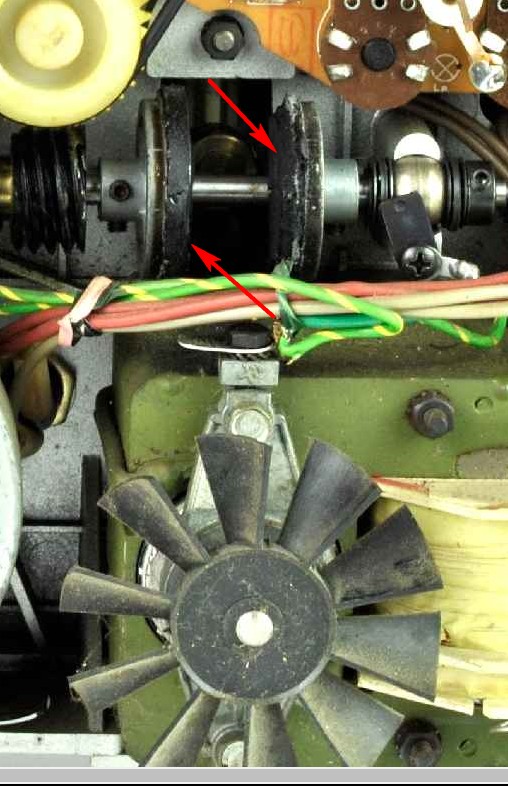

I'm afraid that not only you'll need the toothed belt,but something had to be done with that corroded rubber flanged drive wheels too. That seems quite a mess there. [Eek!]

Posted by Mich Asquith (Member # 6733) on December 14, 2018, 06:49 AM:

Luigi, excellant find!

The Sonix 8s Super 8 Projector by iMAC is identical.

http://www.filmkorn.org/super8data/database/projectors_list/projectors_imac/projectors_imac.htm

However another Projector I cant find a manual for.

@Nantawat I realise this however my goal is to get my dads old Projector working for sentimental value and as a avid technologist I feel like this is a mini-project.

Posted by Luigi Castellitto (Member # 3759) on December 17, 2018, 08:18 PM:

Nantawat, it's true, the rubbers should be changed, that seller has them, they cost little, the hardest part and disassemble and reassemble...

Mich, Imac was a fairly well known brand in Italy, I did not know this model, but I remember that it made standard and even toy-like projectors for the little ones.
Try asking that Italian seller on ebay if he has a scan of your projector's manual or similar model.

Posted by Mich Asquith (Member # 6733) on May 24, 2019, 11:47 AM:

I want to make apology for my absence. Unfortunatley my mother passed away in Dec and forgot about this project which I now want to complete more than ever now.

Posted by Dominique De Bast (Member # 3798) on May 24, 2019, 12:55 PM:

Sorry to hear that, Mich.

Posted by Mich Asquith (Member # 6733) on May 28, 2019, 08:08 AM:

Thank you Dom, need to get cracking with this!
