Topic: GS 1200 fwd, off, rev switches

Dino Everette
Phenomenal Film Handler

Posts: 1535
From: Long Beach, CA USA
Registered: Dec 2008

posted January 04, 2013 05:15 PM

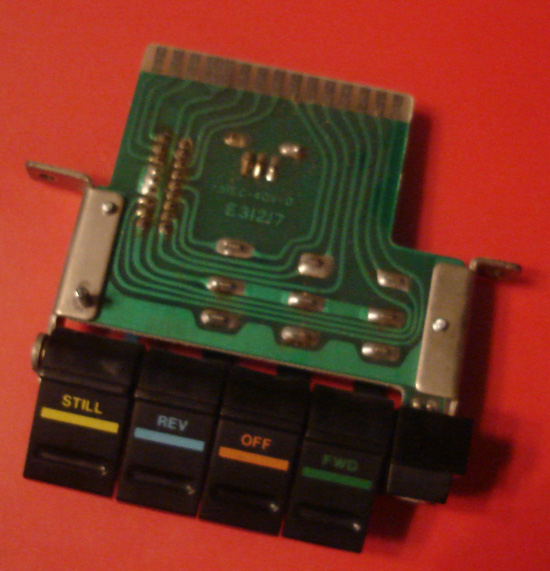

Does anyone know if the boards for the Still, rev, off, fwd are interchangeable on the different models of the GS? I just got a Version 3 but the OFF button won't move at all, so I removed the board with the 4 switches from one of my Version 1 models today at work and was going to replace it on the vers. 3 at home, but if someone knows this will not in fact work, I won't bother bringing it home...

--------------------
"You're too Far Out Miss Lawrence"

| IP: Logged

Dino Everette
Phenomenal Film Handler

Posts: 1535
From: Long Beach, CA USA
Registered: Dec 2008

posted January 06, 2013 12:07 AM

Since no one jumped in to help, I just did it myself, and I am pleased to announce that the boards are the same...The weird thing is even with the board out I still cannot figure out why the "off" switch simply won't budge...

--------------------
"You're too Far Out Miss Lawrence"

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted January 06, 2013 09:50 AM

Dino,

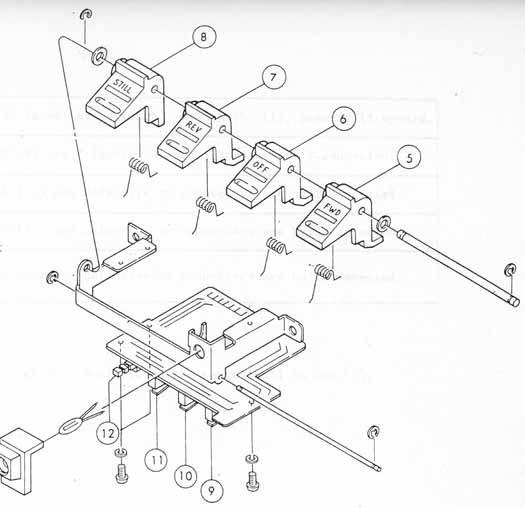

There is a little coil spring under each of the four operational switches. It sounds like the spring is jammed up in some way on the underside of the switch, or the microswitch itself might be jammed. If you remove the little circlip on the pivot bar you can slide the bar out and relign the spring. You can also replace the micro switch with an equivalent from Radio Shack, if necessary.

[ January 06, 2013, 12:28 PM: Message edited by: Paul Adsett ]

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Dino Everette
Phenomenal Film Handler

Posts: 1535
From: Long Beach, CA USA
Registered: Dec 2008

posted January 06, 2013 05:20 PM

Went back to the stuck switch this morning and it turned out to be the #10 as it was lodged in the black plastic part..I worked it loose and the switch works fine..so I am going to re-install it on the other machine.

--------------------
"You're too Far Out Miss Lawrence"

| IP: Logged
