Author Topic: Who makes this long play unit ?
Alan Gouger
Master Film Handler

Posts: 451
From: Florida
Registered: Jun 2003


 - posted April 03, 2015 10:25 PM      Profile for Alan Gouger     Send New Private Message       Edit/Delete Post
Curious if its a commercial unit avail for sale.

https://www.youtube.com/watch?v=OavNILdp3IU

Anyone have experience with the film cleaner, does it work well.

 |  IP: Logged

Ricky Daniels
Jedi Master Film Handler

Posts: 587
From: London & Kent UK
Registered: Jul 2003


 - posted April 07, 2015 05:43 AM      Profile for Ricky Daniels     Send New Private Message       Edit/Delete Post
Alan,

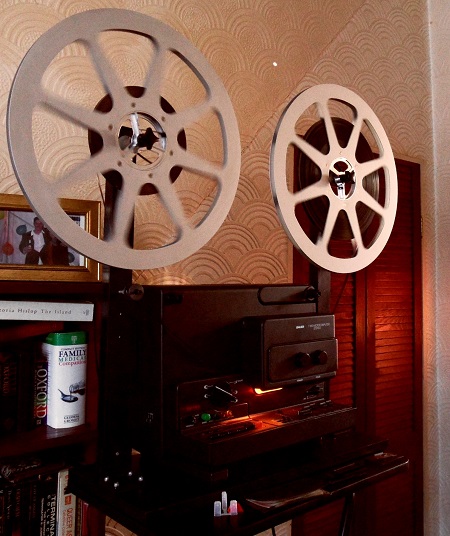

It's a Kempski GIGANT 750x sold and I believe made by Kempski/CSC in Germany back in the 80s. It's a great and reliable long-play unit that excepts up to 3hrs of 8mm sound film, and I'm lucky enough to own one. It is made to bolt on to the top of the GS1200 but the one in the video is mounted on 'speed frame', I guess as there's no room on top of the GS shown in the video?

Here's an earlier post about Kempski...
http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=001869# 000010

Best
Rick

[ April 08, 2015, 03:32 AM: Message edited by: Ricky Daniels ]

 |  IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012


 - posted April 07, 2015 08:03 AM      Profile for Andrew Woodcock         Edit/Delete Post
Great video, the unit looks fantastic with the T610!
Even more robust motors than my own Spondon Long Play unit,dare I say!!

 -

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011


 - posted April 07, 2015 10:54 AM      Profile for Paul Browning   Email Paul Browning   Send New Private Message       Edit/Delete Post
This idea is used on the high end Fumeo, I wonder who copied who with this idea, looks identical with those thin wide motors on the end of the arms, no wonder that Fumeo weighs a lot, good idea though, I wonder how the tension is regulated, there doesn't look to be any kind of variable control like the spondon unit.

 |  IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012


 - posted April 07, 2015 12:41 PM      Profile for Andrew Woodcock         Edit/Delete Post
Motors may just have a built in clutch within the gearbox section Paul. That way it will keep constant regulated torque on the reels without ever pulling on the film more than it should.

Just a guess, hopefully someone who has one will elaborate.

Alan these particular Film Cleaners are allegedly superb in use though very expensive! They are distributed at Wittners.

[ April 07, 2015, 03:29 PM: Message edited by: Andrew Woodcock ]

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged
