8mm Forum: GS1200 Head Presser Assembly Screws Needed

»	8mm Forum » 8mm equipment for sale/trade » GS1200 Head Presser Assembly Screws Needed

UBBFriend: Email this page to someone!

Author

Topic: GS1200 Head Presser Assembly Screws Needed

Alan Rik
Film God

Posts: 2211
From: New York City, NY, USA
Registered: Jun 2003

posted November 02, 2016 04:14 PM

Hi All,
So I have a version one machine and I am replacing the head presser assembly with an updated one from a version 2 machine. New Part is on the left and the old part is on the right. Does anyone have the grub screws that fit into the newer machine?
Leon is looking for the grub screw and should have it but I thought I would put it out there in case he can't find it. The new screws are smaller.

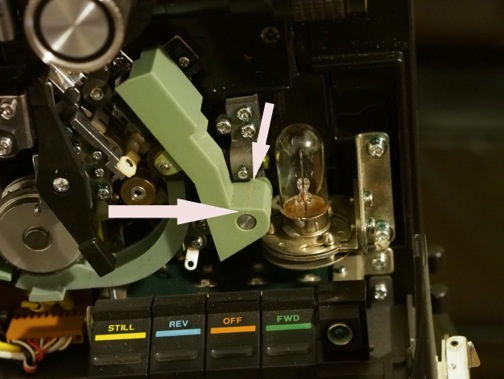

The old piece cracked here:

Magnetic sound is good but optical is warbly when this piece is cracked/broken.

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted November 02, 2016 04:58 PM

Alan any sized grub screw can be very easily be found.
If you tell me what size you're after and what length, I will send you as many as you want.

They appear around M2.5 or M2 just by looking at these photos but that's purely guess work of course just from a photo.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted November 02, 2016 05:39 PM

Hey Alan,

I spent some time in the hardware aisle at Home Depot recently because our new office chair was a couple of screws short.

They have thread gauges available there for customers to use, including metric. I'm not sure if they have them this small, but maybe.

Once you know the true size, this gets much easier!

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Alan Rik
Film God

Posts: 2211
From: New York City, NY, USA
Registered: Jun 2003

posted November 02, 2016 06:02 PM

Yes the size is sooo small! If I sneeze- I could lose them! I was hoping someone would know the size.

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted November 03, 2016 12:38 AM

If you like I will just send you 3 or 4 of each size so you have one or two spares starting with M2. I doubt it could possibly be any smaller than that.

I just need to know what length is ideal if you can let me know please by measuring your old piece with the screws still in it.

They appear M3 btw (possibly M4 at the outset)

I would say the length required should be the same despite the diameter change on the tapped holes.

I will even supply you with the Allen keys for them! 😂😂😂

They are drilled in a different place than your originals I notice. I hope this won't affect the performance!
The original part appears symmetrical, whereas these on the later one, clearly are not?

It doesn't appear to matter too much as these appear only to be utilized to clamp the part to the shaft near the exciter lamp?

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Alan Rik
Film God

Posts: 2211
From: New York City, NY, USA
Registered: Jun 2003

posted November 03, 2016 01:31 AM

That is great Andrew! But let me see if Leon finds them.. he said he should have them lying around and he will let me know tomorrow.
If he doesn't I'll take out my ruler! [Smile]

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted November 03, 2016 02:55 AM

No worries Alan. Let me know how you go with it thanks.😉

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Alan Rik
Film God

Posts: 2211
From: New York City, NY, USA
Registered: Jun 2003

posted November 03, 2016 10:15 AM

Leon has sent the part. Many thanks for all your replies! [Smile]

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted November 03, 2016 10:26 AM

Good news Alan thanks. For reference purposes, please let us know what sizes old and newer guides accepted once they arrive.😊

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged
