Posted by Gary Huggins (Member # 3948) on March 13, 2014, 08:22 PM:

I would appreciate any suggestions about where to find a part for a recently acquired Eumig 810.

It arrived missing one half of the tiny plastic split rollers in the compartment that feeds the take-up reel.

Thanks!

Posted by Zechariah Sporre (Member # 2358) on March 14, 2014, 08:56 AM:

I have one. If you send me your address I will send it to you.

Posted by Gary Huggins (Member # 3948) on March 14, 2014, 12:46 PM:

Thanks!

Posted by Bill Brandenstein (Member # 892) on March 15, 2014, 09:35 PM:

I'm missing two halves on a spare machine. Got any more, Zechariah? [Smile]

Posted by Zechariah Sporre (Member # 2358) on March 15, 2014, 10:04 PM:

I think so. Send me your address as well.

Posted by Edwin van Eck (Member # 4690) on November 16, 2016, 08:30 AM:

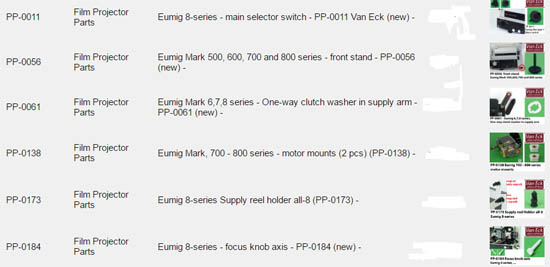

These parts are being produced newly again!
See:
http://www.van-eck.net/itable.php?lang=en&size=0&cat=film&merk=57&type=Mark%20S%20810

Today just added an new part:

The nice thing about this new part is that is works not only for super8 reels, but also for regular8!

See: http://shop.van-eck.net/PP-0173.html?_globalsearch=pp-0173

Posted by Dominique De Bast (Member # 3798) on November 16, 2016, 12:18 PM:

Edwin. I don't see the piece discussed here on your list. Maybe you don't refer to the same thing ?

Posted by Brian Fretwell (Member # 4302) on November 16, 2016, 02:46 PM:

Yes, the parts being talked about are the very small rollers that put together give a diablo shape so they do not touch the film except at the far edges, about 3mm diameter.

Posted by Edwin van Eck (Member # 4690) on November 16, 2016, 03:26 PM:

Ok! Yes, we are also working on these rollers (for the Eumig 8 series), and also for the Eumig 6 series (these are different).

Hope to release these soon as well.

Posted by Steve Klare (Member # 12) on November 16, 2016, 04:05 PM:

The rollers would be a great addition!

As nearly as I can figure, the original ones are made of some kind of anti-matter.

-any time I have worked on a Eumig and one has fallen off the table, I have never, never, never seen it again! They just vanish!

Nearly as I can figure, some distant corner of the galaxy is full of them!

I've machined a few out of Delrin rod: close, could be better.

Posted by Paul Adsett (Member # 25) on November 16, 2016, 06:07 PM:

I think the little Eumig rollers may possibly be made from Delrin AF, which is Delrin with an anti-friction very low wear Teflon filler. Delrin is typically black, whereas Delrin AF is brown.

Posted by Bill Brandenstein (Member # 892) on November 16, 2016, 10:01 PM:

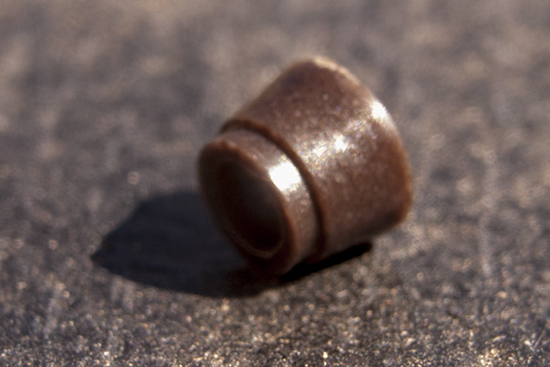

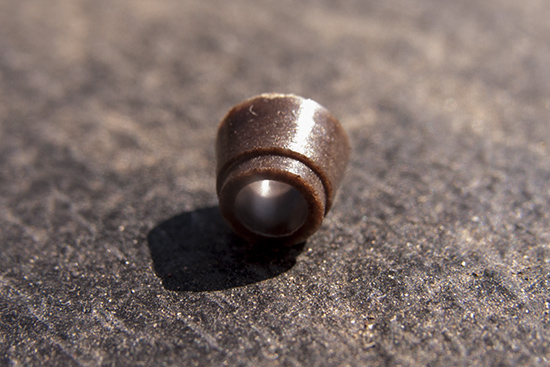

THESE elusive little cutie pies:

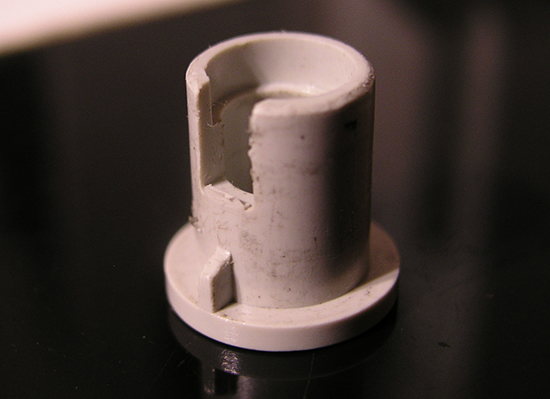

Edwin, I'm also very interested in your spindle sleeves, but if the fins aren't spring loaded and capable of retracting, won't work with some reels I have where the three notches are unevenly cut, or have fewer than three notches. Please clarify if your replacement part is solid or moveable, thanks. The original single-fin adapter works with all reels that I have:

...where that photo shows that the adapter has a piece missing, which is the reason why I'm looking for a replacement.

Posted by Edwin van Eck (Member # 4690) on November 17, 2016, 01:44 AM:

The rollers are almost ready for sale.

The adaptor is already available for sale! see:

http://shop.van-eck.net/PP-0006.html?_globalsearch=pp-0006

Adaptor sleeve - Eumig Mark S - PP-0006 Van Eck (new)

Adaptor to set super8 or single8 reel on a projector
Sleeve for take-up shaft S

Newly produced from strong plastic
Color: white

original product numbers:
Eumig 718.3414
Eumig 718.3414/0
Eumig 709 U 335

Fits on the following projectors (and many more)
- Eumig Mark 8
- Eumig Mark-DL
- Eumig Mark-S (2 adaptors)
- Eumig Mark S 709
- Eumig Mark S 710D
- Eumig Mark S 712D
- Eumig Mark S 802D
- Eumig Mark S 807D
- Eumig Mark S 810D
- Eumig R2000(some require the PP-0003 !)

Posted by Bill Brandenstein (Member # 892) on November 18, 2016, 12:21 PM:

Nice, Edwin! When the rollers are ready, I'll place an order for all of these!

Posted by John Capazzo (Member # 157) on November 18, 2016, 05:41 PM:

Does anyone have the standard 8mm sprockets for the Eumig 824? This is for the later edition that enabled you to remove the super 8 and standard 8mm sprockets.

Posted by Edwin van Eck (Member # 4690) on October 19, 2017, 08:03 AM:

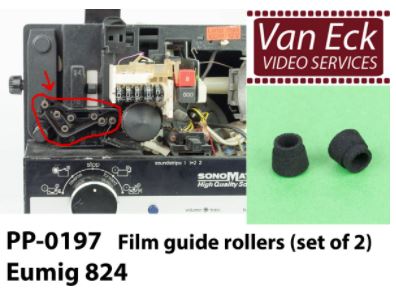

The film guide rollers for the Eumig 824 series are now also available!

See: https://shop.van-eck.net/PP-0197.html?_globalsearch=pp-0197

Eumig 824 - Film guide rollers (set of 2) - PP-0197 (new)

Fits among others the following projectors:
- Eumig 820
- Eumig 824

Set of 2 guide rollers (2 rollers needed per axis)

Weight: 1 gram.
Size:
Height: 4,9 mm
Diameter: 5,8 mm
Axis hole: 3,2 mm

Design by 3dformadesign.nl
Made in the Netherlands
