Posted by Kelly Pimentel (Member # 4583) on June 27, 2015, 04:10 PM:
Hi everyone,
I finally cleaned my father's Elmo ST800 film projector. It hasn't been used in more than 20 years and the drive belt melted. I ordered a new one on ebay but I think I'm installing it incorrect, it seems too big and loose. Please help. I'm unable to upload a picture
Posted by Andrew Woodcock (Member # 3260) on June 27, 2015, 05:44 PM:
Hopefully someone will be able to advise you here Kelly, but without a photograph and no previous ownership of that particular machine, I cannot advise you further unfortunately.

They are a popular machine so someone on here will know the correct arrangement for the belt I am sure.
Posted by Janice Glesser (Member # 2758) on June 27, 2015, 05:52 PM:

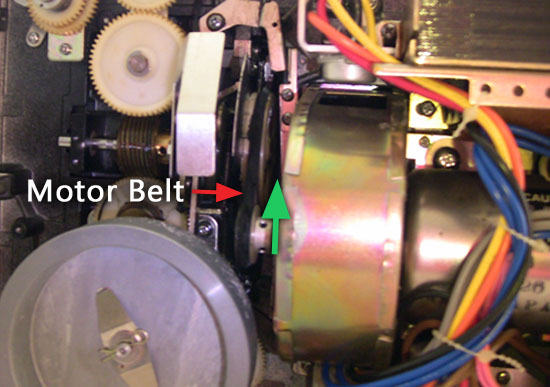

Kelly... This is a picture with the belt fitted on my ElMO maybe you could compare. The green arrow is where you slip the belt thru to the back of the pulley.

Do the gears turn with the new belt you installed? If not then it's possible you were sent the wrong size belt.


[ June 27, 2015, 07:11 PM: Message edited by: Janice Glesser ]
Posted by Andrew Woodcock (Member # 3260) on June 27, 2015, 06:01 PM:
You're a star Janice! [Smile]
