8mm Forum: Keystone K-109D power cable

»	8mm Forum » 8mm Forum » Keystone K-109D power cable

UBBFriend: Email this page to someone!

Author

Topic: Keystone K-109D power cable

Richard Feilden
Junior
Posts: 3
From: Santa Barbara, CA, USA
Registered: May 2016

posted June 07, 2016 07:43 PM

Hello all,

I'm so glad I found this place - I've been searching all over for information and I can't find it. Someone took the power cable from my 109D projector and I need to replace it. I use it when I teach film studies classes as it's a great way to bring a little reality to the medium, suggest the age of film etc. Unfortunately I don't seem to have the words to describe the cable to run a good search for it. Is there a name (or site) you can suggest I start looking with? At the moment the only possible route I have is to hunt for a complete new projector (someone is selling a straight 109 locally in apparently great condition, but they aren't listing a price and I've no sense of what to offer).

Anyway, that's a long winded opener - I'm hunting for a power cable for a Keystone 109-D and I've no idea what to call it to get my search to a successful end!

TIA

| IP: Logged

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted June 07, 2016 08:01 PM

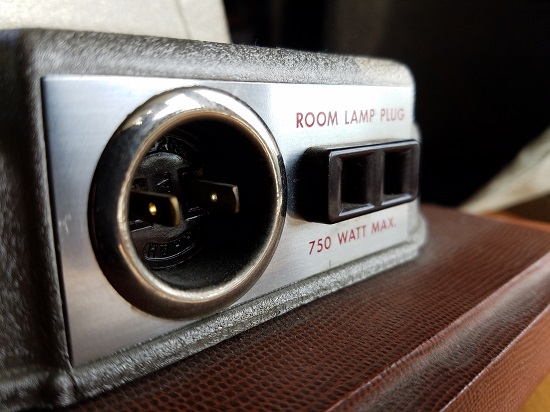

Post a pic of the socket on the projector. Close-up would be best.

| IP: Logged

Richard Feilden
Junior
Posts: 3
From: Santa Barbara, CA, USA
Registered: May 2016

posted June 07, 2016 08:25 PM

Now that I can certainly do!

| IP: Logged

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted June 07, 2016 10:45 PM

It looks like those prongs may be standard width apart. You may be able to trim the sides of non-grounded extension cord end so it would fit into the rounded perimeter of the socket. Measure and post the distance between the prongs and also the diameter of the socket hole. I have many old projector power cords laying around and I have had Keystone projectors so I may have what you need. However, I would need those measurements.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted June 07, 2016 10:58 PM

Richard...this cord will work.

http://www.amazon.com/Hosa-PWC-178-NEMA-1-15P-Powe r/dp/B000068OA6?ie=UTF8&psc=1&redirect=true&ref_=oh_aui_detailpage_o03_s00

I bought this cord for my Bolex. I needed to widen the socket holes a bit for that projector. However...I just tried it on my Keystone 109 and it worked fine. I don't think you will have to adjust the socket holes at all, but it's easy enough to do with a screw driver [Smile]

[ June 08, 2016, 01:54 AM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Richard Feilden
Junior
Posts: 3
From: Santa Barbara, CA, USA
Registered: May 2016

posted June 08, 2016 12:58 PM

Thank you both for the help. One order placed, and I get to keep film in my film studies classes!

| IP: Logged

Tom Spielman
Master Film Handler

Posts: 339
From: Minneapolis, MN, USA
Registered: Apr 2016

posted June 08, 2016 01:24 PM

750 Watt limit on the room lamp. Holy crap, that's a big bulb [Eek!]

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 08, 2016 01:39 PM

Welcome to this forum, Richard. I hope to see some pictures of your film studies classes.

--------------------
Dominique

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted June 09, 2016 01:26 AM

Glad to help Richard and hopefully this thread will help others looking for a replacement cord. I also want to welcome you to the forum. I'd love to hear what reactions your students have to the projector and films.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged
