Author Topic: Odd reel hole shape?
Alan Gouger
Master Film Handler

Posts: 451
From: Florida
Registered: Jun 2003


 - posted September 04, 2018 11:24 PM      Profile for Alan Gouger   Email Alan Gouger   Send New Private Message       Edit/Delete Post

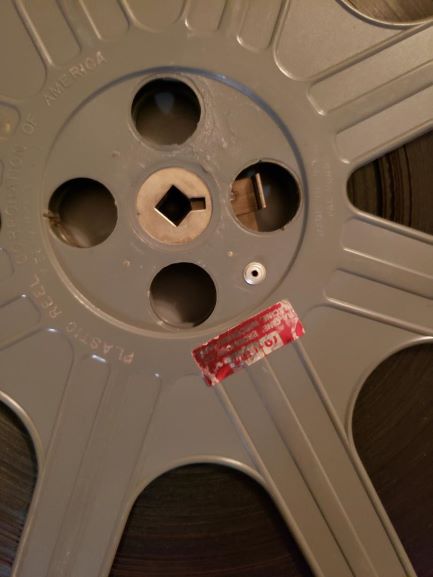

I just bought a few S8 titles off ebay some of the reels have an odd spindle opening. What is this? Do I have to transfer this to another reel leaving the reel the film came on useless?

Thank you!

 -

 |  IP: Logged

Michael O'Regan
Film God

Posts: 3083
From: Essex, UK
Registered: Oct 2007


 - posted September 05, 2018 01:31 AM      Profile for Michael O'Regan   Email Michael O'Regan   Send New Private Message       Edit/Delete Post
Hi
It looks like a 16mm hub, but I'm not sure why this would be on a S8 reel??

 |  IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1411
From: Weymouth,Dorset,England
Registered: Oct 2012


 - posted September 05, 2018 01:46 AM      Profile for Terry Sills   Email Terry Sills   Send New Private Message       Edit/Delete Post
Yes that is definitely a Sixteen mm reel. You will need to transfer the film onto a Super eight reel.

 |  IP: Logged

Kevin Clark
Jedi Master Film Handler

Posts: 978
From: Bapchild, Kent, UK
Registered: May 2004


 - posted September 05, 2018 04:53 AM      Profile for Kevin Clark     Send New Private Message       Edit/Delete Post
Hello Alan

Those reels were produced a long time ago for use on the Extend-A-Reel long play unit made in the USA by RaCine.

The system used 16mm reel size shafts hence yes they are indeed the same square size as a 16mm reel. Lots of collectors at the time also modified 16mm reels to use as long play super 8 reels - I used to split 16mm 2000ft Tuscan ones, cut down the inner hub width, then re-glue the side back on and use them on Spondon long play units.

Sadly the reels you have will of course never fit your Fumeo or Beaulieu so it looks as though you will need to track down some suitable replacements.

Kevin

 |  IP: Logged

Alan Gouger
Master Film Handler

Posts: 451
From: Florida
Registered: Jun 2003


 - posted September 05, 2018 09:38 AM      Profile for Alan Gouger   Email Alan Gouger   Send New Private Message       Edit/Delete Post
Thank you Kevin that now makes sense. I bought several films some on different reel sises and all have this hub. Luckily I already have on hand replacement reels.
Cutting down a 16mm reel for S8mm use sounds interesting, too bad they never standardized the same shaft for both formats.

 |  IP: Logged

Winbert Hutahaean
Film God

Posts: 5423
From: Nouméa, New Caledonia
Registered: Jun 2003


 - posted September 05, 2018 04:21 PM      Profile for Winbert Hutahaean   Email Winbert Hutahaean   Send New Private Message       Edit/Delete Post
That very reel has been discussed at least in these two posts:

Racine Films - Extend-A-Reel

Does this reel fit on ST-1200?

You may get some more info there.

Cheers,

--------------------
Winbert

 |  IP: Logged

Alan Gouger
Master Film Handler

Posts: 451
From: Florida
Registered: Jun 2003


 - posted September 06, 2018 11:30 AM      Profile for Alan Gouger   Email Alan Gouger   Send New Private Message       Edit/Delete Post
Thank you for the links Winbert, good reading and good info.

 |  IP: Logged

Bill Brandenstein
Phenomenal Film Handler

Posts: 1627
From: California
Registered: Aug 2007


 - posted September 06, 2018 09:37 PM      Profile for Bill Brandenstein   Email Bill Brandenstein   Send New Private Message       Edit/Delete Post
Alan, if those are 14 or 15 inch reels, I may have some use for them if you don't need them. Thanks!
