Author Topic: CIR 16mm splicer
Bill Anderson
Junior
Posts: 2
From: London, UK
Registered: Mar 2018


 - posted March 10, 2018 10:00 AM      Profile for Bill Anderson   Email Bill Anderson       Edit/Delete Post
First post on the forum.

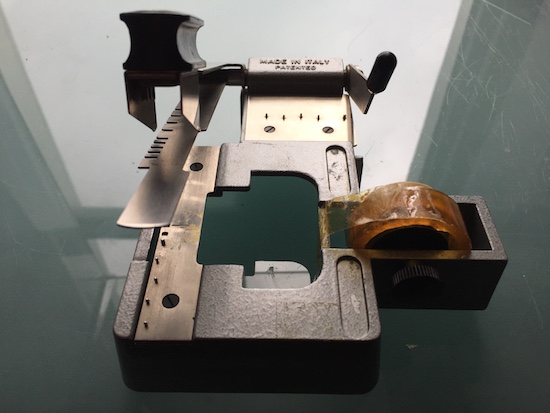

Just acquired this splicer:
 -
I've never seen a guillotine that cuts at right angles to the workflow like this - anyone know the ergonomic rationale for this orientation of the guillotine?
Many thanks

 |  IP: Logged

Ty Reynolds
Film Handler

Posts: 92
From: Calgary, Alberta, Canada
Registered: Nov 2015


 - posted March 10, 2018 12:29 PM      Profile for Ty Reynolds   Author's Homepage   Email Ty Reynolds   Send New Private Message       Edit/Delete Post
The twin blades cut the tape at a perfect right angle so that it is flush with the edge of the film.

 |  IP: Logged

Maurice Leakey
Film God

Posts: 4963
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted March 10, 2018 01:50 PM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Bill observes that the cutting section is at right angles to the tape joining bed.
I've never seen a CIR like this. It could almost be a prototype that never got into production.

--------------------
Maurice

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3055
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted March 10, 2018 02:29 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post

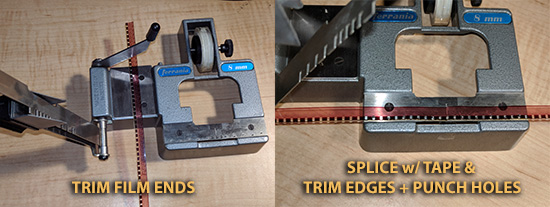

Bill...I have the same type Std. 8mm splicer. The only difference in this model splicer is that the guillotine is located separate and vertically from the spicing area.

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Nantawat Kittiwarakul
Film Handler

Posts: 63
From: Rajburana, Bangkok, Thailand
Registered: Aug 2017


 - posted March 12, 2018 01:48 AM      Profile for Nantawat Kittiwarakul   Email Nantawat Kittiwarakul   Send New Private Message       Edit/Delete Post
Still don't see any advantage of this design anyways. [Roll Eyes]

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3055
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted March 12, 2018 02:15 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
This is just the earlier model design...the later models had the guillotine and the splicing section on the same horizontal plateform.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Nantawat Kittiwarakul
Film Handler

Posts: 63
From: Rajburana, Bangkok, Thailand
Registered: Aug 2017


 - posted March 13, 2018 09:40 PM      Profile for Nantawat Kittiwarakul   Email Nantawat Kittiwarakul   Send New Private Message       Edit/Delete Post
Ah,that clearly explain its (un)ergonomically design. Thanks a lot! [Big Grin]

 |  IP: Logged

Bill Anderson
Junior
Posts: 2
From: London, UK
Registered: Mar 2018


 - posted March 17, 2018 11:42 AM      Profile for Bill Anderson   Email Bill Anderson       Edit/Delete Post
Many thanks Janice!

 |  IP: Logged
