Author Topic: elmo 912 problem
Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 26, 2013 07:49 PM      Profile for Jim Schrader   Author's Homepage   Email Jim Schrader   Send New Private Message       Edit/Delete Post

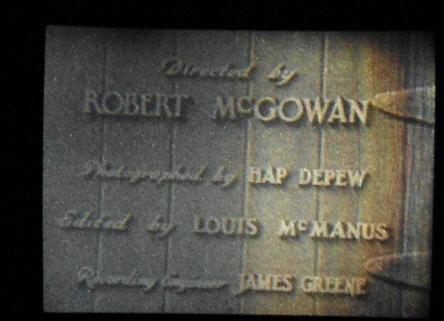

Can anybody tell me what I might have to adjust on my elmo editor the left side appears darker than the rest although this picture barely shows it.
 -

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Brian Stearns
Master Film Handler

Posts: 487
From: Lexington
Registered: Jun 2013


 - posted August 26, 2013 09:02 PM      Profile for Brian Stearns         Edit/Delete Post
Hows the bulb? Any burns?

 |  IP: Logged

Brian Stearns
Master Film Handler

Posts: 487
From: Lexington
Registered: Jun 2013


 - posted August 26, 2013 09:03 PM      Profile for Brian Stearns         Edit/Delete Post
Hows the bulb? Any burns?

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 26, 2013 09:50 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Try removing the plastic and metal covers exposing the lamp. Loosen the screw securing the lamp and moving the bulb forward or back to see if the picture improves.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1628
From: Savage, MN, USA
Registered: Jun 2003


 - posted August 27, 2013 09:30 AM      Profile for Jim Schrader   Author's Homepage   Email Jim Schrader   Send New Private Message       Edit/Delete Post
By moving the bulb out it fixed the problem thanks Janice [Wink]

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted August 27, 2013 01:51 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Great Jim! There's not much that can go wrong on that viewer. Although I did repair one that the shutter fell off. It was tricky to get it lined up again, but I glued it back on and it was good to go [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).
