Author Topic: Eumig 824 Volume Fluctuates Up & Down
Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 11, 2017 07:08 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post

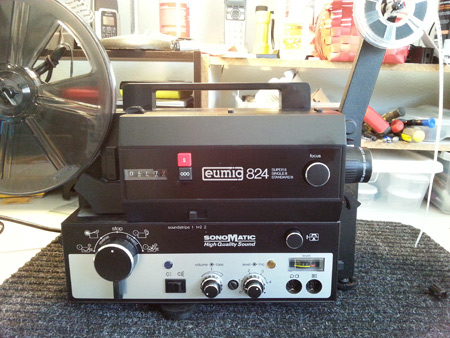

I just received a Eumig 824 projector. How many times have you heard..."It's in perfect condition....EXCEPT FOR ONE THING...." Well I'm also singing that tune right now.

 -

Before I even opened the back I knew there was a problem. First I had to turn the volume knob all the way to the max to hear anything. Then the audio volume like a wave would abruptly dip and then rise again. This behavior is continuous.

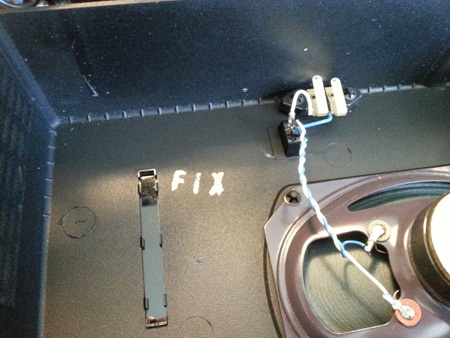

The next thing I noticed after opening the back was this little clue:

 -

I know very little about this model and hope I can get some ideas on how to troubleshoot.

Any help appreciated [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003


 - posted May 11, 2017 07:40 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Janice, try turning the machine on, in standby mode, then press the red recording button and hold it in place, and turn the control knob to the forward with sound (4-o'clock) position. This activates the sound recording circuitry. Do this a few times and see if it solves the low sound problem, which on these machines is often associated with corroded or dirty contacts on the recording switch. You may also wish to try removing the speaker lid and blowing compressed air around these contacts which are on a sliding switch at the end of the recording switch actuation cable.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 13, 2017 02:40 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thank you Paul...That helped slightly...but to hear any sound the knob has to be at least at the half-way mark and of course as I turn it further there is significant hummm.

As far as the sound cutting out...It turns out that is only occurring with one reel of film. I tried other reels both R8 & S8 on the Eumig 824 and there was no drop-out ...so it appears to be just that one reel. Comparing the films sound stripe I couldn't see what was different...so it's a mystery to me. I ran the same reel thru my Eumig 810D and the sound was fine....no drop-out. I'm guessing there may be something with the 824 sound head.

I have the user manual which contains a schematic, but unfortunately I can't read schematics [Frown] I read all the Forum back threads on this projector...but most just addressed the "no sound" issue.

I'm not sure if this is a sound head or component issue. I connected a small external speaker...but the volume was still low. So I'm guessing the built-in speaker is ok. I don't like that you can't test the audio without putting the back cover back on...Grrrgh! Maybe I can rig up some alligator clips.

Anybody ever worked on one of these? I don't really know where to start trouble-shooting.

[ May 13, 2017, 03:46 PM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016


 - posted May 13, 2017 06:34 PM      Profile for Will Trenfield   Email Will Trenfield   Send New Private Message       Edit/Delete Post
Odd. I wonder if the reel you mention has shrunk given that other films play ok. Perhaps your 810 is more tolerant than your 824? I've a L & H sound film that played up but was fine after treating it with Filmguard.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 13, 2017 09:33 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Yes Will... very strange. I think I'll get some Filmguard and see if that has any effect....can't hurt.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Paul Browning
Phenomenal Film Handler

Posts: 1006
From: West Midlands United Kingdom
Registered: Aug 2011


 - posted May 14, 2017 06:27 AM      Profile for Paul Browning   Email Paul Browning   Send New Private Message       Edit/Delete Post
Hello Janice, perhaps the film and head are not in continuous contact with each other, giving you this up and down effect. Do these have a spring loaded presser's, I would check this if you can locate it, may have to remove the front cover, perhaps lost or sticking or a broken spring preventing even pressure on the sound head.

 |  IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003


 - posted May 14, 2017 06:40 AM      Profile for Tom Photiou   Email Tom Photiou   Send New Private Message       Edit/Delete Post
Janice, once that machine is all up and running you will be very pleased with it. Those eumigs are extremly kind to film and are very quite with excellent sound and light. And they look very good. I dont think there look has ever dated over the years.

 |  IP: Logged

David Skillern
Jedi Master Film Handler

Posts: 582
From: South Wales
Registered: Apr 2006


 - posted May 14, 2017 07:15 AM      Profile for David Skillern   Email David Skillern   Send New Private Message       Edit/Delete Post
Hi Janice,

I hope you get this problem sorted - as i've got 2 of these machines and they both perform very well.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 15, 2017 06:02 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
In running some more sound film through the projector...some films are louder than others...but I still think there's a sound issue effecting the volume and there's a high-pitched screeching sound that comes and goes on longer reels. I'm still baffled at the one reel where the audio drops out.

I'm guessing that these are not common problems. However...perhaps one of you has knowledge of the sound heads? How to get to them? What to look for? They appear to be in a metal casing...so I can't really see the heads by just removing the cover. There doesn't seem to be a service manual on this projector.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003


 - posted May 15, 2017 08:11 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Janice, this may help you:

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=000254

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 15, 2017 09:19 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thanks Paul...Just as you posted I found those instructions online from a 2013 presentation that Dino Everett was involved. This is just what I was looking for [Smile]

Small Gauge Projection and the Art of Projector Maintenance and Repair
November 5‐6, 2013
Association of Moving Image Archivists Annual Conference
Richmond, VA

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 17, 2017 01:05 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post

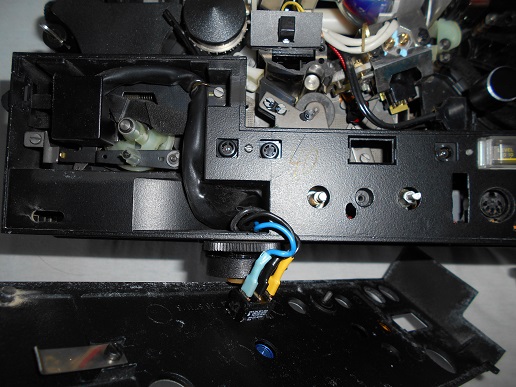

Steps 1-3. Following the instructions above I removed the main control knob (1)...the volume knob (2)... and the mixing control knob (3). I unscrewed the screw between the volume and mixing knobs (4). I'm not sure why it's referred to as the "side" panel. I call it the "front" panel...am I missing something? [Confused] ... but the panel loosens on the right side, but not the left. Something still seems attached...could it be the lamp brightness selector switch?

 -

Step 4. Not sure what "unplug the sound head" means. I see the 2 white wires going from the sound assembly to the switch...but nothing that looks like it can be unplugged.
[Confused]

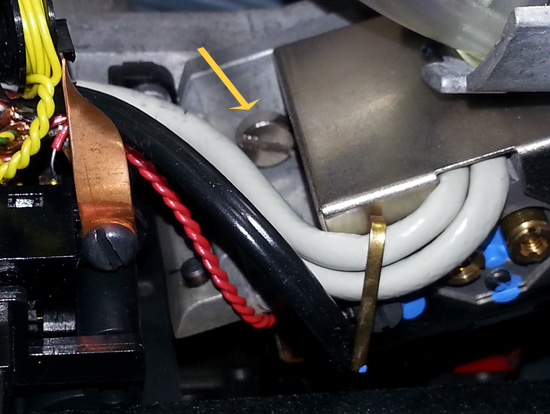

Is this the single screw holding the head assembly to the chassis?
 -

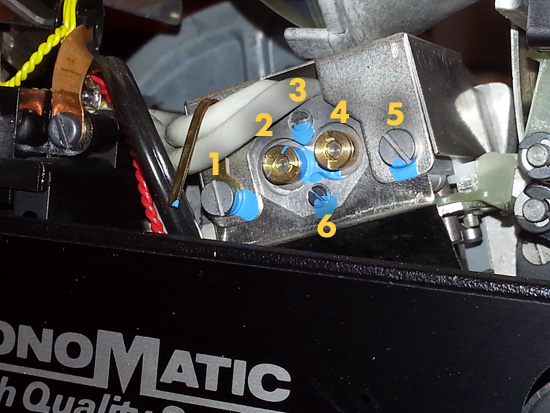

Steps 5&6. Even though I haven't even gotten to the removing the sound head stage...are these the 6 screws the instructions are referring to? Are the 2 outer screws the ones I've numbered 1 and 5?

 -

Am I safe in assuming that the instructions are more for earlier Eumig 800 series models and not for the 824?

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013


 - posted May 17, 2017 01:59 PM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Janice, I have the same projector but not working correctly (and since the 8 mm gate is missing I didn't want to spend too much effort on it so it's still not working). I could however remove the part you mention but it was not easy so I thought there was glue but it not that : there is a metallic piece that holds that part so you have to slide a little bit to be able to remove it. Be careful as the lamp power selector is connected with three wires.

 -

--------------------
Dominique

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 17, 2017 02:31 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thanks Dominique...I'll give it another try and let you know. Sometimes the hardest part is just getting to the area that needs fixing [Roll Eyes]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003


 - posted May 17, 2017 06:47 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Hi Janice,
As Dominique has pointed out, there is a little clip at the back end of the chassis that engages with the back end (furthest from lens end) of that little side cover. So you have to move the side cover about a half inch towards the lens to totally remove the side cover. You may also need to pull the wires off the HI/LOW lamp switch as well (this switch is unique to the 824).
Yes that big screw holds the head assembly to the chassis wall. Make sure you have no power to the projector and have rotated the control knob to the 4 o'clock position before removing (or replacing) the sound head. On the 802 and 820 the head has a small harness and plug which plaugs into a small socket on the chassis. The 824 head may be hard wired, so proceed carefully.
On the sound head, DO NOT TOUCH screws 2,3,4,6,these are the elevation and azimuth adjustments for the head. You only need to remove screws 1 and 5 that hold the mumetal shield in place.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 19, 2017 03:01 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thanks for the details Paul. I haven't had a chance to get back to the head cleaning yet...but I should at least be able to get the panel off this time [Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged
