Author Topic: Hokushin SC-10
Maurice Leakey
Film God

Posts: 5787
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted December 20, 2015 04:50 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
We all have auto-loading projectors but have many members seen a Japanese Hokushin SC-10 in action?
I have one of these and film friends are always astounded to see it loading a film.
I bought it on eBay. It wouldn't work correctly but my engineer soon fixed it.
The model shown in the video is an earlier mauve model with one tone control. Mine is blue and has two tone controls.
The commentary is Japanese (?) but that is not a problem as the visuals are very clear.
https://www.youtube.com/watch?v=JJLbcYUNyFs

--------------------
Maurice

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted December 20, 2015 05:49 AM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
I must admit I didn't see that loading system coming!
Very clever [Smile]

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Dave Groves
Jedi Master Film Handler

Posts: 503
From: Southend on Sea, Essex, UK
Registered: Feb 2015


 - posted December 20, 2015 06:19 AM      Profile for Dave Groves   Email Dave Groves   Send New Private Message       Edit/Delete Post
I used to own one. It was very kind to film but being only two claw and rather noisy, I got rid of it. Loved the loading mechanism. Very cleverly thought out.

--------------------
Dave

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5787
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted December 20, 2015 06:30 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
There is no need to trim the film which is placed under a spring clip and held in position by pins through the perforations.
I don't consider that mine is in anyway noisy. It, of course, has had a service.

--------------------
Maurice

 |  IP: Logged

Bill Phelps
Phenomenal Film Handler

Posts: 1477
From: USA
Registered: Jan 2009


 - posted December 20, 2015 07:06 AM      Profile for Bill Phelps     Send New Private Message       Edit/Delete Post
Wow that is really cool! A friend of mine has a Hokushin 16mm projector but it is different than the model in the video. His loads in more of a standard manner....I've never seen one like that. Thanks for sharing.

Bill [Smile]

 |  IP: Logged

Thijs de Kort
Film Handler

Posts: 51
From: Tilburg, Netherlands
Registered: Jun 2015


 - posted December 22, 2015 02:12 AM      Profile for Thijs de Kort   Email Thijs de Kort   Send New Private Message       Edit/Delete Post
The automatic threading is quite extraordinary. It does break at some point since there is quite a lot of power needed to move the arm, film and lens at the same time.
Edwin van Eck has created the part using his famous 3D printer. Hokushin Threading gear if you ever need one the link is above.
/Thijs.

 |  IP: Logged

Terry Sills
Phenomenal Film Handler

Posts: 1417
From: Weymouth,Dorset,England
Registered: Oct 2012


 - posted December 22, 2015 10:38 AM      Profile for Terry Sills   Email Terry Sills   Send New Private Message       Edit/Delete Post
I had one of these a while ago that I bought from the late great John Ferrari. Fascinating to watch the threading mechanism and a good performing projector.

 |  IP: Logged

Josef Grassmann
Expert Film Handler

Posts: 190
From: Hennef-Sieg, Germany
Registered: Apr 2005


 - posted March 03, 2016 01:35 PM      Profile for Josef Grassmann   Author's Homepage   Email Josef Grassmann   Send New Private Message       Edit/Delete Post
Take always care for you fingers. Many users got injured by threading arm. There is no safty-clutch employed!

But is is a nice maschine and very relaiable. Visitors are always impressed to see threading arm in action.

Josef

 |  IP: Logged

Pasquale DAlessio
Film God

Posts: 3523
From: Bristol,RI, USA
Registered: May 2010


 - posted March 03, 2016 05:17 PM      Profile for Pasquale DAlessio   Email Pasquale DAlessio   Send New Private Message       Edit/Delete Post
That's the craziest auto threading I have ever seen! I watched it 4 times. It's so smooth running. Thanks for posting the link.

There's one on eBay now but it doesn't have the crazy auto thread arm.

http://www.ebay.com/itm/HOKUSHIN-SC10-16MM-SOUND-PROJECTOR-JUST-SERVICED-RARE-/252223482408?hash=item3ab9b0ea28:g:QaAAAOSwk1JWet1f

PatD

 |  IP: Logged

Lindsay Morris
Film Handler

Posts: 87
From: Darlington, WA, Australia
Registered: Jul 2013


 - posted March 07, 2016 04:44 AM      Profile for Lindsay Morris   Email Lindsay Morris   Send New Private Message       Edit/Delete Post
That Hokushin as posted on EBay is worthless really as the loading arm has been removed and the BIG black knob seen on the lamphouse cover is fitted to the shaft that SHOULD carry the loading arm.
My guess is that the loading mech gear inside has broken & the seller or a past user has simply removed it to flog off a unit that can only be loaded manually...NO big deal but the machine is certainly NOT worth what the buyer is asking.
For quite some years I used a pair of those units doing mobile 16mm shows & I found them to have better light due to the shape of the shutter than the TQIII Bell & Howells I also had. Plus they were far easier to load on the run quickly and very easy to unlace if ever needed to in a hurry.
I did 20min reel changes using a control box I made up that switched lamps over as well as the audio as the changeover cues came along often pushing the image to 5M wide outdoors using the ELC lamp GE Multi Mirror type. Had a stand on the back of my ute that the machines sat on with a pair of big column speakers either side of the screen fed with a 30W per side stereo amp & would park the ute about 30m from the screen & away we would go.
Sometimes screening to 200 people.
Never ONCE did those Hokushins let me down & the kids were fascinated by the Circa Load action to thread up.
Only negative was the crude framing that moved the image up and down on screen so any adjustment there meant you had to either raise or lower the projection angle..other than that they were bullet proof.

--------------------
Lindsay

 |  IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015


 - posted May 31, 2017 08:47 AM      Profile for Edwin van Eck   Author's Homepage   Email Edwin van Eck   Send New Private Message       Edit/Delete Post
Hello all,

For a 16mm film lover, I am fabricating the plastic gears for the Hokushin SC-10 projector. The first 3 are ready know and I am putting these on our webshop.

I have one question, does someone know the spare-part number of the original gear? I don't have the service manual for this projector yet.

 -

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015


 - posted August 30, 2017 09:41 AM      Profile for Edwin van Eck   Author's Homepage   Email Edwin van Eck   Send New Private Message       Edit/Delete Post

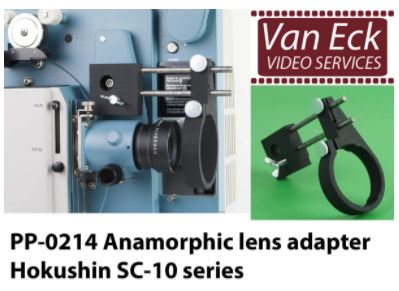

And launched today the newly fabricated anamorphic lens adaptor for this nice projector!

https://shop.van-eck.net/PP-0214.html?_globalsearch=pp-0214

 -

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged
