Topic: Zeiss Ikon Movielux

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted April 15, 2008 04:55 AM

I've just acquired a standard 8 silent projector. It's a Zeiss Ikon Movilux 8A, the smallest projector I've ever seen.

Unfortunately there is no mains lead with it. The male socket at the back has two pins, parallel to one another, someting like the American two-pin but closer together. The pins are spaced 10mm apart, they are 4mm x 1mm wide.

Does anyone know where I can get a female line socket to make up a mains lead?

I had thought of changing the plug assembly for a standard IEC 3-pin as the fixing holes are the same spacing but there will not be enough room as the latter have solder tags sticking out the back whereas the plug as fitted has side entry wires.

Perhaps one of our Continental friends can help, please?

[ April 15, 2008, 09:48 AM: Message edited by: Maurice Leakey ]

--------------------
Maurice

| IP: Logged

Antonio Costa Mota
Expert Film Handler

Posts: 171
From: Portugal
Registered: Jun 2004

posted April 15, 2008 01:30 PM

Hi Maurice
Let me join your appeal. I have tried to find here in Portugal
a replacement cable in vain. I hope someone in the forum can suggest some sort of solution. Regards.

--------------------
António C. Mota

| IP: Logged

Joerg Niggemann
Expert Film Handler

Posts: 127
From: Germany
Registered: May 2006

posted April 15, 2008 05:31 PM

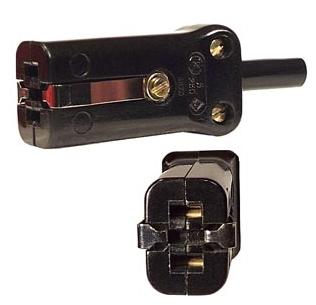

Hi, some older Projectors used a mains plug like that one:

Could it fit to the Movilux? If yes you can find it here:

http://www.wittner-cinetec.de/katalog/07_vorfu/a_allgem.php

Joerg

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted April 16, 2008 04:01 AM

Joerg

Many thanks for this information. The picture shows what appears to be the correct socket.

Price is 15.88 EUR netto, 18.90 EUR brutto. This I assume means before and after Tax. I do not know German but the English order details say that International despatch is a for a minimum order of 30 EUR. But I do not know if the United Kingdom (from Germany) is "International."

I wlll put the German into a translator, however the dimensions given certainly would match the male socket on the projector.

I have now "lashed" up a lead with crock clips, (not really recommended), just to see if it runs. It does. It will need new belts, a new lamp 8 volt, 50 watt, [A1/17], the new socket, a new lead, and general lubrication. I am not sure if all this expense can be justified, although I see a pink one is on eBay for quite a high price.

The advertisments for it said it was the size of a "lady's handbag." It sure is, unfortunately the long handle/strap is also missing.

But it's probably coming up to being 50 years old. Should I get a "Classic" going again?

--------------------
Maurice

| IP: Logged

Joerg Niggemann
Expert Film Handler

Posts: 127
From: Germany
Registered: May 2006

posted April 16, 2008 01:37 PM

Maurice,

you are right, netto/brutto means before and after tax.
If you decide to order there you'll have to use the international order form. You could also get the Movilux belts and lamp:

http://www.wittner-kinotechnik.com/katalog/07_vorfu/c_riemen.php
(Have a look at the section "ZEISS - Riemen")

http://www.wittner-kinotechnik.com/katalog/05_licht/a_lampen.php
(8V 50W lamp, section "Glühlicht")

Joerg

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted April 16, 2008 04:24 PM

Joerg

I am now well on the way to finding the parts I need. I've discovered that the lamp is OK, it just had a dirty centre contact. The motor belt is a strange item, it's a spring belt covered in rubber. Although the rubber on mine has perished and is flaking off and not making any tight contact between the motor pulley and the main drive pulley. I've never seen such a belt before.

Can I please ask for some more help from you and the Wittner site? I also need a carrying belt/strap. This goes from the back to the front and curves up over the top of the projector.

I suppose this could probably be made locally here by a shoe/saddle maker as I assume it is leather.

With many thanks for your help.

Maurice

--------------------
Maurice

| IP: Logged

Joerg Niggemann
Expert Film Handler

Posts: 127
From: Germany
Registered: May 2006

posted April 18, 2008 05:31 AM

Sorry I have no idea where to get a carrying belt. Maybe the only chance to get the original part is to go for a second projector on ebay...

Joerg

| IP: Logged
