Topic: Elmo ST-1200HD belts (picture needed)

Terryll Loffler
Junior
Posts: 12
From: montreal, quebec
Registered: Aug 2007

posted March 02, 2010 08:46 PM

I just picked up my first 1200HD and it came beltless or with out belts if 'beltless' isn't even a word.

anywho, i was wondering if anyone has a picture of the inside of the projector (without the back cover) so i could get a look at where the belts go and how many i'll need. i am not sure if it is 4 or 5 belts.

| IP: Logged

Jon Addams
Jedi Master Film Handler

Posts: 638
From: New York, NY, USA
Registered: Apr 2007

posted March 02, 2010 09:50 PM

Terryll,

You will need 4 belts:

1 Upper Take-up Belt
1 Small Motor/Drive Belt
1 Large Motor/Drive Belt
1 Tiny Counter Belt

Jon

| IP: Logged

Terryll Loffler
Junior
Posts: 12
From: montreal, quebec
Registered: Aug 2007

posted March 02, 2010 10:17 PM

thanks jon.

you wouldn't happen to have a photo of the opened back of this projector just so i can see the placement of the belts?

| IP: Logged

Douglas Meltzer
Moderator

Posts: 4554
From: New York, NY, USA
Registered: Jun 2003

posted March 02, 2010 11:04 PM

Terryll,

The service manual for the ST-1200 can be downloaded from here . Pictures of the similar ST-1200D with belts visible can be found at this site.
Belts are available on eBay .

Doug

--------------------
I think there's room for just one more film.....

| IP: Logged

Jon Addams
Jedi Master Film Handler

Posts: 638
From: New York, NY, USA
Registered: Apr 2007

posted March 02, 2010 11:33 PM

Terryll,

I just took a couple of pictures of my ST-1200HD and send them to your regular email address.

I hope this helps.

Jon

| IP: Logged

Douglas Meltzer
Moderator

Posts: 4554
From: New York, NY, USA
Registered: Jun 2003

posted March 03, 2010 08:10 AM

Jon,

That's great! Could you post those pictures here?

Doug

--------------------
I think there's room for just one more film.....

| IP: Logged

Terryll Loffler
Junior
Posts: 12
From: montreal, quebec
Registered: Aug 2007

posted March 03, 2010 10:07 AM

thanks, jon + doug.

i ordered belts last week from ebay, so well see how that goes. i just picked up three elmo projectors from a school - 1200HD, 600D, 800 - and the 1200 & 600 had almost liquid belts, i removed and cleaned then as best i could without a complete disassemble. this is my first time doing this so i may ask for more help.

thanks!!

| IP: Logged

Jon Addams
Jedi Master Film Handler

Posts: 638
From: New York, NY, USA
Registered: Apr 2007

posted March 04, 2010 01:43 AM

Thanks Doug,

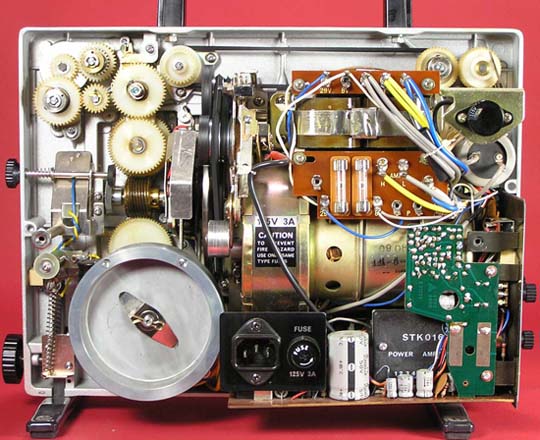

Here is the picture Terryll

Jon

| IP: Logged
