Author Topic: Viscount Viewer
Mike Carro
Junior
Posts: 23
From: Tempe, AZ
Registered: Oct 2007

- posted August 17, 2010 07:47 PM      Profile for Mike Carro   Author's Homepage     Send New Private Message       Edit/Delete Post

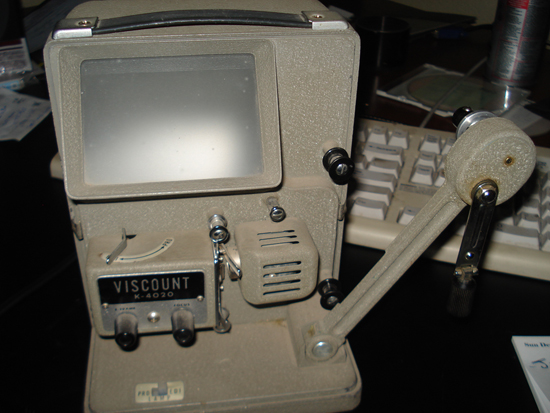

Anybody ever seen one of these one-armed viewers? It's really crazy. It actually works although this one needs some work in forward mechansim. Both reels mount on one shaft. I just came across this on craigslist and bought it. The little lever below the screen moves a prism so you can project on a screen.
-

 |  IP: Logged
Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

- posted August 17, 2010 10:56 PM      Profile for Bryan Chernick   Email Bryan Chernick   Send New Private Message       Edit/Delete Post
So when you crank forward it turns the take-up reel and when you reverse it it turns the feed reel?

 |  IP: Logged
Mike Carro
Junior
Posts: 23
From: Tempe, AZ
Registered: Oct 2007

- posted August 18, 2010 10:13 AM      Profile for Mike Carro   Author's Homepage     Send New Private Message       Edit/Delete Post
yeah is has a gear on the winder that's mounted on a cantilever so when you go forward the gear engages the take up, when you go in reverse the friction moves the gear into the feed reel. That's the problem i'm having there's not enough friction to move the gear forward anymore. If you want to see a picture of the mechanism I'll post one.

 |  IP: Logged
