Topic: Failure on a GS1200

Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

posted February 29, 2016 09:14 AM

One of my two Elmo GS1200, main motor is not running!

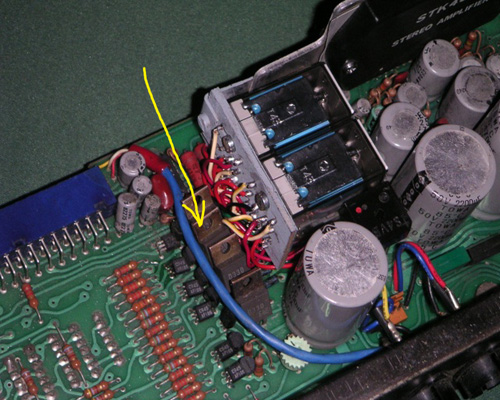

I found the cause of the failure that comes from one of the transistors marked by the arrow on my picture!
Someone can give me the reference of these transistors and where can I get them?

I am thinking in particular of Ugo that has fully restored one of these projectors

Thank you very much

--------------------
Tony

| IP: Logged

Ugo Grassi
Jedi Master Film Handler

Posts: 506
From: Avellino (Italy)
Registered: Dec 2003

posted February 29, 2016 10:02 AM

Genuine part: 2SD330
equivalent part:BD241C
http://www.distrelec.biz/en/power-transistor-to-220-npn-100-st-bd241c/p/17110331?q=bd241c&page=1&origPos=1&origPageSize=25&simi=99.4

[ February 29, 2016, 12:19 PM: Message edited by: Ugo Grassi ]

--------------------
Bye
Ugo

| IP: Logged

Phil Murat
Jedi Master Film Handler

Posts: 671
From: Villeneuve St Georges, France
Registered: Dec 2015

posted February 29, 2016 12:17 PM

Si necessaire BD241C :

WWW.FARNELL.COM

Approx 1,22 Euros

TAT : 3 Jours......

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted February 29, 2016 08:16 PM

Antoine,

While you have the machine apart, you may as well replace all of the transistors of this type.

They are all alike, and have been operating in the same environment, and probably doing the same thing.

So the one that failed is probably just the first to go, and not the last.

(Just like light bulbs in a chandelier!)

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

posted March 01, 2016 02:45 AM

Thank you very much to all those who replied.
I easily found in France the BD241C.
It is not me who will repair my projector, I am not able.
I have a friend who is going to do. When I told him that I had found the BD241C, here's his response:
"it is not worth the bd241c they have in stock"
but it is of small differences in operating voltage
If one replaces a transistor by equivalency
need to replace the entire chain of transistor that works together"
This is what seems to also say Steve.
Thank you all once again

--------------------
Tony

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted March 01, 2016 02:55 AM

Steve's right. Do one, you may as well do them all with the same while you're in there.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

posted March 01, 2016 04:03 AM

This forum is great. We receive help from serious and competent members. I warmly thank. Unfortunately I do not write as I would in English and I spend every time by a web translator. The translation is not famous but I hope I can make myself understood

--------------------
Tony

| IP: Logged

Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

posted March 03, 2016 01:45 PM

My friend was able to repair my projector Elmo GS1200. There's much damage at the level of the electronics. Now it runs very well.
I'll give him another projector GS1200, the motor begins to run 4 minutes after switching on the projector and the reverse does not work! Maybe a relay problem?

--------------------
Tony
