Posted by Jim Karl (Member # 5446) on June 22, 2016, 02:25 PM:

having a problem with this projector autoloading. Film is getting caught pass the lens at the bottom when trying to make the turn around the wheel. See pic. Any help would be appreciated. Fixed belts/power supplies etc and can repair with some minor guidance as to the cause, though ignorant about the most of the mechanics.
Google Drive pic of projector path

Posted by Janice Glesser (Member # 2758) on June 22, 2016, 08:06 PM:

Hi Jim...I have a different model than yours...but the film path and threading is pretty much the same on many of these B&H projectors.

Here are some basic trouble shooting tips:

1) Use the film cutter on the head of the film to make sure it feeds correctly.
2)When threading the film...depress the film threading lever down until the projector pulls the film from the front reel (about 6 inches) ....then release the film threading lever.
3) Clean the film path/gate and rollers with alcohol.
4) Check that there isn't any broken pieces of film blocking the path.
5) Check that the plastic guides are clean and not cracked or broken.
6) Check that the claw (the pin that inserts into the sprocket holes to pull each frame of the film down) is not broken or bent.

Does the film get jammed and start to accordian when making the lower turn?...OR Does the film stop and not move forward into the lower feed roller?

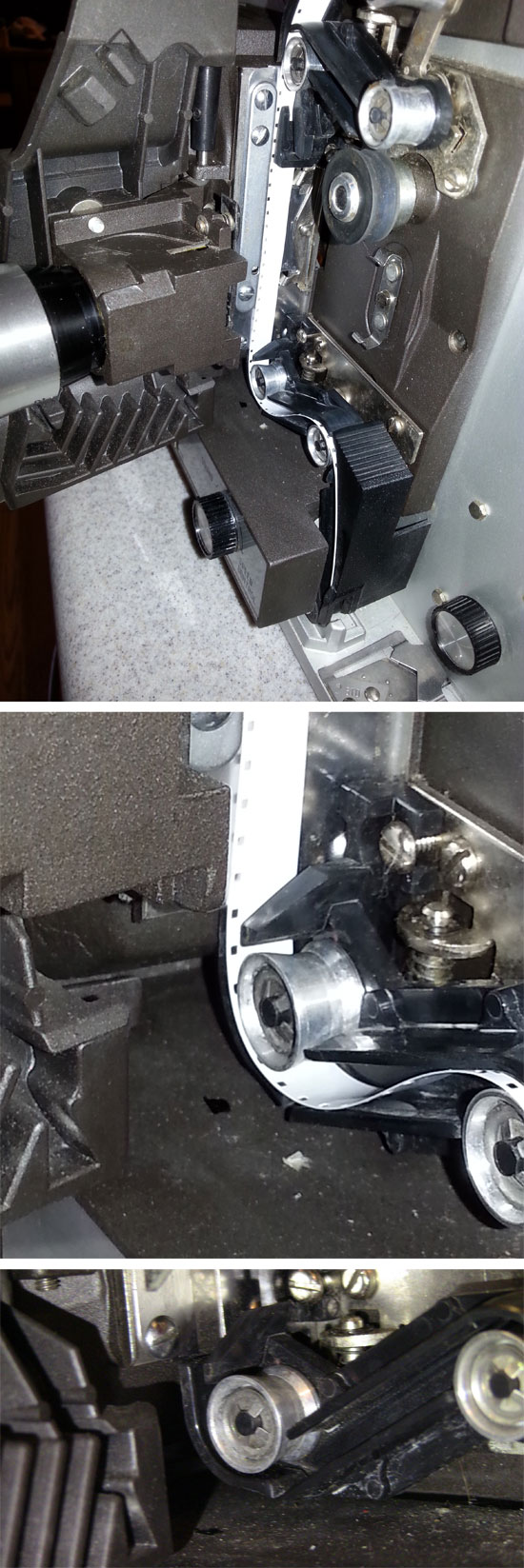

Here are some pics of my machine where I've manually threaded some white leader to check the path. Compare yours to this.

Posted by Jim Karl (Member # 5446) on June 22, 2016, 08:56 PM:

EDITED - Success!

Not sure which it was was but I did 3 things
1) Cut the tape end with the cutter. Not sure I actually cut it correct though, it looks like a triangle at the tip?
2) Let go of the lever once the unit took over
3) Cleaned the path with alcohol

One or more of them now autoloads perfect. Tried 10 times in a row!

[ June 22, 2016, 10:43 PM: Message edited by: Jim Karl ]

Posted by Janice Glesser (Member # 2758) on June 22, 2016, 11:54 PM:

Congrats Jim! That's good news. Most likely it was the combination of using the trimmer and releasing the thread lever.

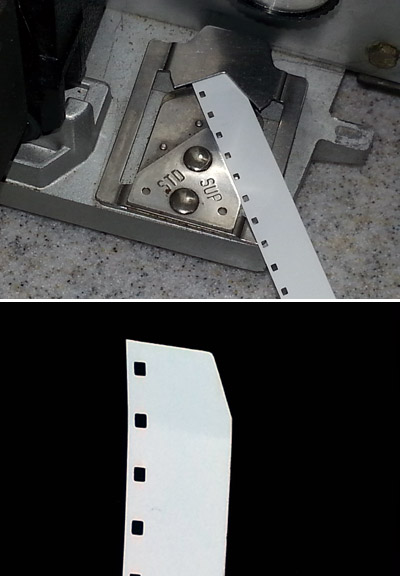

Here's how the trimmed film should look:

Posted by Jim Karl (Member # 5446) on June 23, 2016, 12:37 AM:

Janice - Thank you VERY much for all your help! I learned a LOT today and that actually makes me happier then the fact the projector is actually working fine now. Really appreciate the support and super glad I joined this site now. Thanks again!
