posted September 19, 2016 09:53 PM

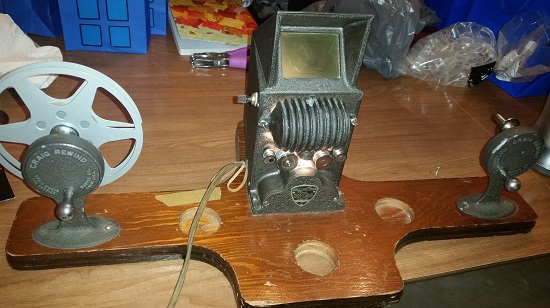

I bought an old Craig editing station to use just for the rewinder. The right one has a major problem though. It is extremely stiff. It will move, but not without quite a bit of effort. Before I just spray the thing down with WD-40, I wanted to ask if anyone knew what the mechanism inside looked like. Specifically, am I going to damage anything by using some penetrating oil on it?

| IP: Logged

Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

posted September 19, 2016 11:10 PM

It's just a few gears inside. Open it up, clean the old grease off and re-grease it. It will run like new.

| IP: Logged

John Vice
Junior
Posts: 21
From: Lexington, KY, USA
Registered: Sep 2016

posted September 19, 2016 11:18 PM

Hmm. I don't readily see an easy way to do that. I think there may be a c clip or retaining ring of some kind on the main axle which protrudes through the opposite side of the body. I don't have the tools to remove and then replace it, but it gives me a place to start, anyway.

| IP: Logged

Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

posted September 20, 2016 11:01 PM

You should be able to push it off with a flat screwdriver. Be careful not to damage it. You can get it started from the open side then gently pry it off from the the other side once you can get a small flat screwdriver between the ring and the shaft. I usually use pliers to slide or squeeze it back on.

| IP: Logged

Bill Brandenstein
Phenomenal Film Handler

Posts: 1632
From: California
Registered: Aug 2007

posted September 21, 2016 02:11 PM

John, I have a setup like this on a similar base that I've about killed and worn out from use. Guess I liked using it a lot! Not bad for $10. So good luck with this.

I added some cheap rubber feet to the corners from Home Depot, by the way.

| IP: Logged

John Vice
Junior
Posts: 21
From: Lexington, KY, USA
Registered: Sep 2016

posted September 21, 2016 04:43 PM

Mine was $27 with shipping, but the small frosted glass projector mechanism works. I happened to have some electronics contact cleaner on hand, and I decided to give it a try first, since it's a little less messy than WD40, and evaporates quickly. I didn't expect it to do anything, but it's working great now.

| IP: Logged
