Topic: Praise For Eumig 824

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted April 13, 2017 02:43 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

The Eumig 824, introduced in 1977, was the last of the Eumig range which was suitable for Super 8 and standard 8 sound films. As mentioned recently in this Forum, it was attractive with its black finish and had an f1.2 zoom lens.

Extra features were a two-position switch for the lamp giving high and low settings. Other features were the addition of a tone control and a frame counter.

These are quite sought-after which tends to keep prices high but it is a projector to seek out if a decent dual-gauge projector is required.

http://www.filmkorn.org/super8data/database/projectors_list/projectors_eumig/eumig_824sonomatic.htm

--------------------
Maurice

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted April 13, 2017 07:47 AM

Edit/Delete Post

Unusually and very much untypically on the Super 8mm Database site, the motor fitted to this machine is described as an
AC Magnetic Motor?...Something of a conflict in terminology there as they generally use the term "Magnetic Motor" to describe a machine fitted with a DC Motor, typically with permanent magnets fitted to create the "field" for these motors, hence the term "Magnetic", as they permanently are, when this type of motor is fitted.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted April 13, 2017 08:44 AM

Email Steve Klare

Send New Private Message

Edit/Delete Post

Yes, If I were to seek out another Eumig, this is the one I would be after.

All of my R8 capable machines are pretty minor-league, maybe 50W lamps at best. At least with this one I'd have something that could run with the big dogs!

In general the Eumig 800s are so simple they are almost spartan. That much said, I've had mine for 15 years. I've worn out cars, major and minor appliances and a couple of jobs, but not had a bit of trouble with it.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 13, 2017 02:51 PM

Send New Private Message

Edit/Delete Post

The 824D is indeed a stunning looking machine. Here's a pic of my 824D Sonomatic HQS which I purchased from Gary Crawford at the April 2015 Cinesea, and Gary very kindly gave me an exceptional deal on it:

It works equally well on Standard 8mm or Super 8mm - a brilliant design by the Eumig engineers. I love the rugged construction and compact design of all the 800's.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted April 13, 2017 04:37 PM

Send New Private Message

Edit/Delete Post

And its one we are looking out for right now.
We have an 822 sonomatic but would like an 824 to replace the 802 we have. [Wink]

[Wink]

| IP: Logged

David Roberts
Master Film Handler

Posts: 405
From: Suffolk. England
Registered: Apr 2004

posted April 14, 2017 02:47 AM

Send New Private Message

Edit/Delete Post

The f1.2 lens on this is far better than the standard f1.3,and gives a bigger picture.

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted April 14, 2017 03:41 AM

Send New Private Message

Edit/Delete Post

Defiantly, our 822 has the 1.2, what a difference,especially for the std 8s. [Wink]

[Wink]

| IP: Logged

Gary Crawford
Jedi Master Film Handler

Posts: 979
From: Manassas, VA. USA
Registered: Jun 2003

posted April 17, 2017 07:09 AM

Send New Private Message

Edit/Delete Post

Thanks, Paul, for the kind words. Glad the 824 is working well for you. I have to give Steve Klare some credit, since he was able to perform some surgery on that 824 while at Cinesea to get it running perfectly. It was only after he worked on it that I sold it. He's a brilliant and warm person. So thank him as well.

| IP: Logged

David Hardy
Jedi Master Film Handler

Posts: 955
From: Johnshaven Village , Montrose, Scotland
Registered: Jan 2015

posted April 17, 2017 07:21 AM

Send New Private Message

Edit/Delete Post

I still have my Eumig 824 with F1:2 lens and it still runs great.
One of the most unfussy projectors ever when it comes to
running the various 8mm film stocks.

For me it was the best dual gauge they made.
Brilliant build and rugged with a great performance apart from
that infamous Eumig hum.

The best they made before the plasticky build of the later 900 series. [Smile]

[Smile]

--------------------
" My equipment's more important than your rats. "

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 17, 2017 10:45 AM

Send New Private Message

Edit/Delete Post

The 900 series have much better performance both picture and sound than the 800's, but as David says they are a step backward in terms of build quality and durability.
The ideal 900's would have been an electronic upgrade of the 800's with the high quality stereo capability of the 938 and 150 watt lighting:

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

David Hardy
Jedi Master Film Handler

Posts: 955
From: Johnshaven Village , Montrose, Scotland
Registered: Jan 2015

posted April 17, 2017 01:42 PM

Send New Private Message

Edit/Delete Post

Paul you are correct there.
I wished the 900 series could have been built to the same rugged standards as the 800 series with the advanced electronics and picture performance of the 900 series included.

I like the picture very much. [Smile]

[Smile]

--------------------
" My equipment's more important than your rats. "

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 17, 2017 03:48 PM

Send New Private Message

Edit/Delete Post

You know David, I am wondering if pairing an 800 projector with the base electronics of the 926/938 is such a far fetched notion. After all the 800 already has the twin track heads in place that could conceivably be spliced into the existing head wires of the 900 stereo, and the power connections could also be carried up to the 800's transformer and switch. Might make a damn interesting project! [Smile]

[Smile]

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted April 17, 2017 04:40 PM

Email Steve Klare

Send New Private Message

Edit/Delete Post

If we were car collectors thinking like this we'd be more like hot-rodders than restorers!

We care a lot more what works well than what's original.

Somewhere I bet there are purist collectors that would be shocked.

"GS-1200: Still in the original packaging...seal never broken!" (This wouldn't be us...)

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 17, 2017 05:09 PM

Send New Private Message

Edit/Delete Post

Well Steve, I have often wondered why Eumig thought it necessary to retire the 800 series projectors. Here they had a superb little workhorse design with a very efficient and reliable mechanism that threaded flawlessly and never scratched a frame of film. An electronic upgrade similar to what I have illustrated would have saved them a fortune in design costs and new tooling, and arguably they would have ended up with a better projector.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted April 17, 2017 05:32 PM

Email Steve Klare

Send New Private Message

Edit/Delete Post

Classic "new is better" thinking, I'll bet!

-yet every design is a roll of the dice, sometimes for better, sometimes not...

I'm all in favor of modifying my machines for improved operation: these are working pieces of equipment, not antiques.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted April 17, 2017 06:11 PM

Edit/Delete Post

I really like the 9' series. Aluminium chassis surrounded by Plastic and all!

My only very slight niggle, is the lens chosen for the S938 as opposed to the S940 and the friction drive system, which I really am not a fan of.

The light output isn't brilliant either on the 150w variants when compared to S936 or S934 which I have had the pleasure of seeing both in action and using on several occasions.
They both use only an A1 231 yet maximize it somehow to look hardly any different on screen to the flagship models?

If the light output however, was still the only thing I felt I could be slightly critical of, These machines would still gain my full respect and admiration.

Film handling wise, they are very much among the very best. This is a hugely important factor to most of us collectors.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 17, 2017 08:12 PM

Send New Private Message

Edit/Delete Post

Well, as you know Andrew I am a big fan of the 938, it's still my favourate projector. But I really would have liked a more rugged design like that represented by the 800's, particularly with heavier wall thickness on the various plastic components which are prone to crack. And I do agree with you about the 'optical levelling' lens on the 938. A nice feature for small screen shows, but you definitely need a higher quality lens to get the best from these machines.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted April 18, 2017 02:46 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

There is the possibility that Eumig thought the 800 range to be too small and not look flashy enough like other makes of around the late seventies.
After all the white coloured earlier models the 824 was finished in black.

--------------------
Maurice

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted April 18, 2017 03:42 AM

Edit/Delete Post

Yes Paul, We have discussed previously and also agreed, that the wall thickness of various plastic components could have been made a little better.

There is still no better buy though than a S938 in good working order when they surface. Pound for pound, dollar for dollar, they offer by far the best value for money for the relevant prices I see them sell for.

They were offered originally and still are today,for far less than any other feature loaded model.

You simply cannot get more bang for your buck.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

David Hardy
Jedi Master Film Handler

Posts: 955
From: Johnshaven Village , Montrose, Scotland
Registered: Jan 2015

posted April 18, 2017 05:54 AM

Send New Private Message

Edit/Delete Post

Paul i agree it should be possible to link an 800 mech with 900
electronics.
It should eliminate that Eumig hum and improve the sound quality
significantly.

Wow that would be a great machine.

I always disliked having to unscrew that flimsy plastic cover in
order to clean the gate and film path on the 900 series.
I also dislike that crap partially opening film aperture gate.
At least you could always remove the aperture plates on the 800 series ( and previous series 700s ) for a good old clean and scrub.
[Smile]

[Smile]

--------------------
" My equipment's more important than your rats. "

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted April 18, 2017 07:06 AM

Edit/Delete Post

I must admit David, the gate isn't the easiest in the world to clean thoroughly and often I did wonder why the lamphouse cover required a screwdriver to be able to quickly remove it?

Elmo Sankyo & Bauer had the edge in these two departments for their similar classed machines.

[ April 18, 2017, 08:44 AM: Message edited by: Andrew Woodcock ]

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Martin Dew
Expert Film Handler

Posts: 204
From: Henley-on-Thames, UK
Registered: Jan 2017

posted April 18, 2017 07:59 AM

Send New Private Message

Edit/Delete Post

Yes, agree with all points. It would have been fantastic if the S938 had a steel housing like the 800s. I do think the S938 looks amazingly contemporary, though - its design was well ahead of its time.

Someone who knows nothing about film projectors saw my S938 the other day and thought it was a new piece of equipment. I think it looks just as sleek and 'present-day' as any video projector or high-end hi-fi component.

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted April 18, 2017 08:44 AM

Edit/Delete Post

Agreed Martin, aesthetically they are a very sleek and handsome design.
That are also one of the easiest in use, to duplicate one track onto another, something Bauer got very wrong with their design.

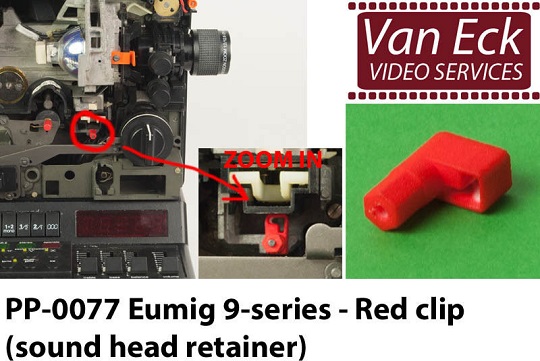

Here is a very useful part to place onto your wishlist Martin.
Over time, one side of the flimsy plastic will inevitably fail at some point or another. When it does it is very difficult to get the correct pressure onto the head.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

David Hardy
Jedi Master Film Handler

Posts: 955
From: Johnshaven Village , Montrose, Scotland
Registered: Jan 2015

posted April 18, 2017 10:31 AM

Send New Private Message

Edit/Delete Post

Yes just what the hell were Eumig thinking of when they decided to build cheap plasticky bits into their machines ?

Was it a cost saving exercise ? [Wink]

[Wink]

--------------------
" My equipment's more important than your rats. "

| IP: Logged

Martin Dew
Expert Film Handler

Posts: 204
From: Henley-on-Thames, UK
Registered: Jan 2017

posted April 18, 2017 10:32 AM

Send New Private Message

Edit/Delete Post

Thanks, Andrew. I've already clocked that piece on Van-Eck, realising I will probably need a new one at some point.

I assume it was the advance of VHS that drove all the Super 8 PJ manufacturers into hyper-drive when it came to the sophistication of model design in the late 1970s and early 1980s. Amazing what commercial market pressure forces a manufacturer to deliver when the going gets tough.

| IP: Logged

All times are Central

This topic comprises 2 pages: 1 2

Move Topic

Delete Topic

next oldest topic

next newest topic

Printer-friendly view of this topic

Visit www.film-tech.com for free equipment manual downloads. Copyright 2003-2019 Film-Tech Cinema Systems LLC

UBB.classic^TM 6.3.1.2
