Author Topic: ESC Lamps for Elmo GS-1200
Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

- posted November 10, 2017 10:06 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
A reminder to owners of the Elmo GS-1200 that the correct ESC lamps are available on UK eBay. They are quite expensive but these appear to be new from the Nantong Donar company in China. The filament in the ESC is designed to cover the small Super 8 frame.

The seller says that the ESC are now obsolete.

While the EJL lamp will fit electrically, it's designed for 16mm use and as such the filament covers the larger 16mm frame.

The photo appears to show that the lamp has a brown cast. This is just a poor photo. I have bought some lamps and can say that they are quite alright.

https://www.ebay.co.u k/itm/ESC-PROJECTOR-LAMP-24v-200W-FOR-ELMO-GS1200-PROJECTORS-CORRECT-GS1200-LAMP/232535255092?hash=item36242e6834:g:4I8AAOSw-0xYNuqj

--------------------
Maurice

 |  IP: Logged
Brian Fretwell
Phenomenal Film Handler

Posts: 1785
From: London, UK
Registered: Jun 2014

- posted November 10, 2017 10:31 AM      Profile for Brian Fretwell   Email Brian Fretwell   Send New Private Message       Edit/Delete Post
Yes I heard that the EJL lamp heats the gate too much as well. One suggestion made at the Big Screen Scene Revival was to mount the EJL further back than the ESC. I have no idea of the validity of this idea as I don't the geometry of the cone of light from the lamps.

 |  IP: Logged
Chip Gelmini
Phenomenal Film Handler

Posts: 1733
From: Brooksville, FL
Registered: Jun 2003

- posted November 10, 2017 10:47 AM      Profile for Chip Gelmini     Send New Private Message       Edit/Delete Post
I have written a post on the Donar ESC lamps available in the states, for those of you in the USA. I believe it's here, but also in the other 8mm forum.

 |  IP: Logged
Matthieu van der Sluis
Master Film Handler

Posts: 373
From: Barendrecht, The Netherlands
Registered: Aug 2017

- posted November 10, 2017 11:13 AM      Profile for Matthieu van der Sluis   Author's Homepage     Send New Private Message       Edit/Delete Post
I have 4 of these ESC Donar lamps.
I've never seen my projector with an origenal Fuji, so I cannot say how they compare.

I can comparre my GS1200 MKIII with my Bauer T610 that has a 150W Xenophot which looks brighter and whiter, so I was about to order a Fuji ESC, but I have to pay big time.

 |  IP: Logged
Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

- posted November 10, 2017 01:59 PM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
The Fuji ESC lamps were available in the UK some years ago from Bart Smith of Blue Cine Tech. But that supply seems to have finished, so the new Donar lamps, whist expensive, are filling the gap.

The UK seller on eBay also offers (on a separate listing) a pack of five lamps which work out cheaper overall.

I didn't mention the availability of the Donar lamps in the US as this was covered a few weeks ago on this Forum.

--------------------
Maurice

 |  IP: Logged
Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

- posted November 10, 2017 04:44 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Which way is the filament supposed to run on the ESC lamp, along the optical axis of the projector or perpendicular to the optical axis? And if perpendicular to the optical axis, should it be mounted with the filament horizontal or vertical?

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged
Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017

- posted November 11, 2017 01:03 AM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Here in Germany you canīt get this 200W ESC Lamp. And the Fujis from Wittner are to expensive.

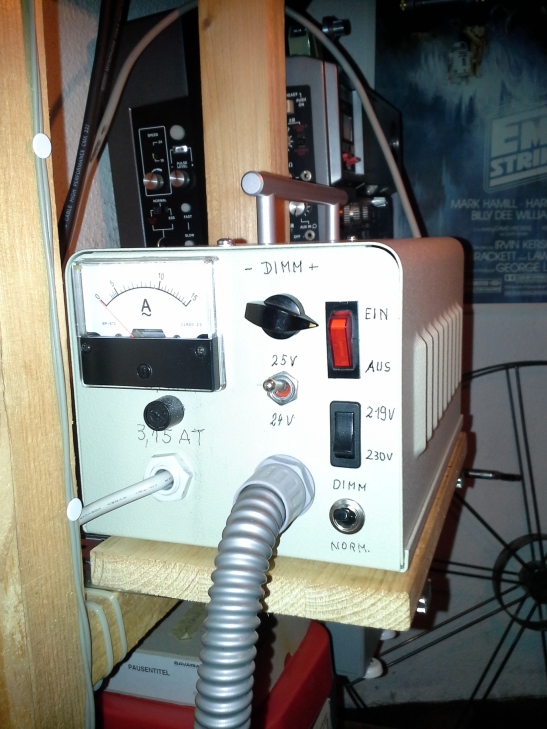

So the best alternate Lamp is the Philips ELC 24V/250W for the GS 1200. Because of setting the Lampholder back 10mm and use an external regulating Transformer from 22 to 26 Volts. So I have made this one for my machines which I can regulate without any Step to the best Voltage for the used Lamp. The Transformer in this Case has 400W.

-

 |  IP: Logged
Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

- posted November 11, 2017 03:10 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
I don't think that Wittner have any Fuji ESC lamps left in stock as they do not come up on their web-site.

--------------------
Maurice

 |  IP: Logged
Matthieu van der Sluis
Master Film Handler

Posts: 373
From: Barendrecht, The Netherlands
Registered: Aug 2017

- posted November 11, 2017 05:23 AM      Profile for Matthieu van der Sluis   Author's Homepage     Send New Private Message       Edit/Delete Post
The Real Image have the Fuji ESC for sale.

 |  IP: Logged
Mark Todd
Film God

Posts: 3846
From: UK
Registered: Aug 2003

- posted November 11, 2017 05:29 AM      Profile for Mark Todd     Send New Private Message       Edit/Delete Post
https://www.replacementlightbulbs.com/lampesc.html

Best Mark.

 |  IP: Logged
Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

- posted November 11, 2017 09:43 AM      Profile for Antoine Orsero   Author's Homepage     Send New Private Message       Edit/Delete Post
I just bought 5 lamps ESC 200 for Elmo Gs Ģ99.95 at CINEMA_PARADISO
Thank you very much aurice for your information
Best regards

--------------------
Tony

 |  IP: Logged
Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

- posted November 11, 2017 09:55 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
And thank you, Antoine.
I always hope that my postings are of assistance to fellow members.

--------------------
Maurice

 |  IP: Logged
Matthieu van der Sluis
Master Film Handler

Posts: 373
From: Barendrecht, The Netherlands
Registered: Aug 2017

- posted November 11, 2017 10:03 AM      Profile for Matthieu van der Sluis   Author's Homepage     Send New Private Message       Edit/Delete Post
https://www.replacementlightbulbs.com/lampesc.html
Here I bought mine, but I don't know how the Fuji ESC's are so I cannot compare.

I'm now llooking for a conversion to the Xenophot 250 myself.

 |  IP: Logged
Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

- posted November 11, 2017 10:17 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
The lamps from the American company, as refereed to, are cheaper than those from the UK eBay seller.
However, there could be an extra charge in the UK from Customs & Excise for an import from outside of the EU.

--------------------
Maurice

 |  IP: Logged
Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

- posted November 11, 2017 10:19 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Matthieu, to give you an idea, a German company does that job for 65 euros but of course you must add the shipping costs http://www.ffr-film.de/index.php?page=elmo&language=eng

--------------------
Dominique

 |  IP: Logged
Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

- posted November 11, 2017 10:27 AM      Profile for Antoine Orsero   Author's Homepage     Send New Private Message       Edit/Delete Post
Dominique, I did not understand, what to send to do the transformation? The projector?

--------------------
Tony

 |  IP: Logged
Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

- posted November 11, 2017 10:30 AM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Now I'm confused. The Ansi specification for the ESC bulb clearly requires that the axis of the filament coil to be oriented along the optical axis of the projector. Yet my Fuji ESC bulb has the filament oriented sideways, that is perpendicular to the optical axis, as in the EJL lamps. So what is going on here? Are EJL's being rebadged as ESC's?
Here's the ANSI drawing for the ESC:
http://www.donsbulbs.com/cgi-bin/r/b.pl/esc~ansi.html

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged
Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

- posted November 11, 2017 10:34 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Yes, Antoine.

--------------------
Dominique

 |  IP: Logged
Antoine Orsero
Master Film Handler

Posts: 374
From: marseille france
Registered: Jun 2003

- posted November 11, 2017 10:47 AM      Profile for Antoine Orsero   Author's Homepage     Send New Private Message       Edit/Delete Post
Dominique!!!! it will cost a fortune in shipping!!!

--------------------
Tony

 |  IP: Logged
Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

- posted November 11, 2017 10:52 AM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
I would not say a fortune as there are other companies cheaper than La Poste but that would indeed have a cost. It may be interesting if you send the projector for other transformations at the same time suche as replacing the blades shutter.

--------------------
Dominique

 |  IP: Logged
Chip Gelmini
Phenomenal Film Handler

Posts: 1733
From: Brooksville, FL
Registered: Jun 2003

- posted November 11, 2017 11:00 AM      Profile for Chip Gelmini     Send New Private Message       Edit/Delete Post
Here is the link for ESC Donar bulbs within the USA:

https://www.replacementlightbulbs.com/lampesc.html

I have ordered from them and have no trouble running the lamp.

Paul in Orlando: Call the toll free number. The manager should answer your concerns.

Chip G

 |  IP: Logged
Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017

- posted November 12, 2017 12:50 AM      Profile for Thomas Knappstein   Email Thomas Knappstein   Send New Private Message       Edit/Delete Post
Dominique Wearing 5 Coils more round the internal Transformer is the easy but not the right Way. If you play Films with a longplay Unit over two hours without a brake the overheating of the Transformer is still there. There are two Ampere more that the Transformer must cary on between 200 and 250 Watts.

 |  IP: Logged
Matthieu van der Sluis
Master Film Handler

Posts: 373
From: Barendrecht, The Netherlands
Registered: Aug 2017

- posted November 12, 2017 04:33 AM      Profile for Matthieu van der Sluis   Author's Homepage     Send New Private Message       Edit/Delete Post
Ha Thomas. No Dominique refers to a conversion with an extra 400W travo added and a 250W Xenophot placed 10m more backwards.

Thank you Dominique. I placed your reply in my conversion topic here:
http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=011 795;p=2#000027

@Chip. You compared this lamp to the origenal Fuji ESC and they are the same?

 |  IP: Logged
