Topic: Two blades ST1200

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 17, 2018 11:27 AM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

I saw on EBay an add for an Elmo two blades shutter that is supposed to fit all the models. I asked the seller (who hasn't replied, yet) if he's sure that it would suit a ST 1200 model as I know they have a specific design. FFR, in Germany upgrade the ST 180, the GS 800/1200 but not the ST 1200 with their own (2 or 2/3 blades) shutters, so there must be a reason. I've just open my projector and noticed it looks difficult to remove the existing shutter but what's more, it's a 4 blades one ! Am I right if I say it takes more light than a 3 blades shutter ? And has anyone successfully remove one of those pieces from a ST 1200 to replace it by a 2 blades one ?

--------------------
Dominique

| IP: Logged

Maurizio Di Cintio
Jedi Master Film Handler

Posts: 977
From: Ortona, Italy
Registered: Jan 2004

posted June 17, 2018 12:19 PM

Send New Private Message

Edit/Delete Post

Yes, you are right: you are getting about 25% less light than you could: three blades are OK for screening films at 18fps and certainly more than necessary for 24. Now the shutter assembly of this model is way more complicated than other Elmo's, but replacing the shutter with a 2-bladed one is not impossible at all: I know a person who does it in Italy and certainly there must be in other places...

--------------------
Maurizio

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 17, 2018 12:33 PM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

Thanks, Maurizio. When you say that someone in Italy does it, do you mean that he did for his own projector or that he offers this service for everyone ? My projector is not working at 18 fps (but since I have other machines, it's not a problem) so a 2 blades shutters would be perfect in my case.

--------------------
Dominique

| IP: Logged

Jean-Pierre Labus
Junior
Posts: 12
From: Puy de Dôme, France
Registered: Sep 2017

posted June 18, 2018 02:01 AM

Email Jean-Pierre Labus

Send New Private Message

Edit/Delete Post

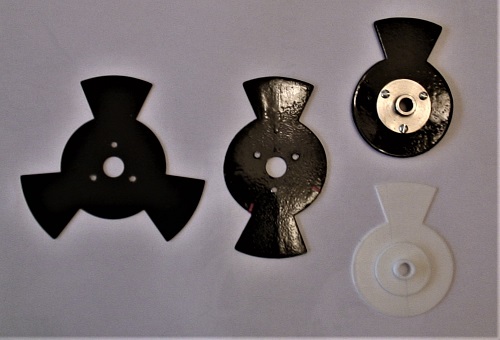

4 different shutters for HEURTIER Stereovox Super 8mm sound projector.

1/ Original shutter 3 blades for 18 or 24 fps

2/ Modified shutter 2 blades fps controled by laser for video transfer

3/ Modified shutter 1 blade fps controled by laser for video transfer

4/ 3D printer created shutter 1 blade fps controled by laser for video transfer

http://8mmforum.film-tech.com/cgi-bin/showpic.cgi?dir=uploads0503&file=4obturateursrnnduit.jpg

It is possible to modify ST-GS 1200 in the same way...

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted June 18, 2018 08:45 AM

Email Steve Klare

Send New Private Message

Edit/Delete Post

I'd love to do two blades on my own ST-1200, but that could be an easy thing to do badly. On most machines the shutter just does an optical job: interrupting the beam. It can be pretty flimsy and do just fine. The ST-1200 shutter is structural: it holds up the ring that accepts torque from the rollers. If you went from three blades to two it would leave a large angle of open space under the wheel, and it might want to stop being round if it wasn't strong enough.

Impossible?

Not at all!

It's just something that would need to be done right: good design,strong materials, skilled work.

-I'd buy that!

I wouldn't want to ship a machine to Italy and back, but if I could buy the part I'd probably wait until the machine died and make it part of the fix.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted June 18, 2018 02:45 PM

Send New Private Message

Edit/Delete Post

Although ive never really been interested in changing the shutter from 3 to 2 blade i have changed a few of these now. The last one was a bit of a nightmare as the ST1200HD shutter is a slightly different size to the ST1200, as is the motor pulleys.

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted June 18, 2018 03:04 PM

Email Steve Klare

Send New Private Message

Edit/Delete Post

Tom,

How is the shutter mounted to the main shaft?

Thanks!

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted June 18, 2018 03:22 PM

Send New Private Message

Edit/Delete Post

There are two tiny grub screws, once these are loosened it should pull / slide off, it is a very tight fit, i have had one or two where i was very worried i was going to do some damage with the force i needed to get it off.

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted June 18, 2018 03:27 PM

Email Steve Klare

Send New Private Message

Edit/Delete Post

Judging from the location these are probably camouflaged in grease, correct?

Is the shutter keyed on the shaft?

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted June 18, 2018 04:02 PM

Send New Private Message

Edit/Delete Post

to get the shutter off you need to remove the machine frame assembly, its not keyed, once fitted you have to set up the "timing", i think i put up a thread on this some time ago Steve, i will try and find it and put a link on. [Wink]

[Wink]

This was my last experience, not quite what your looking for but its a start. If you look at the image of the pulley you will see the grub screws, these are the same type holding the shutter in place. Early 1200s only had one, later ones and the HDs have two.

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=011982# 000000

Better still, here you go Steve, this may help.

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=011672#000000

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 19, 2018 05:34 AM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

Thanks for all those feedback. The EBay seller has not replied, yet. I'm still intersted to know if it's possible to have a modification made in Italy (or elswhere else).

--------------------
Dominique

| IP: Logged

Maurizio Di Cintio
Jedi Master Film Handler

Posts: 977
From: Ortona, Italy
Registered: Jan 2004

posted June 19, 2018 07:45 AM

Send New Private Message

Edit/Delete Post

The person I know is based in Northern Italy and offers that mod for others too. I'll retrieve his contact details and PM them to you later.

Ah, and the mod does not impact on structural issues: there should be non concern as for such regard. Cheers,

--------------------
Maurizio

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 19, 2018 10:06 AM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

Thanks a lot, Maurizio !

--------------------
Dominique

| IP: Logged

Maurizio Di Cintio
Jedi Master Film Handler

Posts: 977
From: Ortona, Italy
Registered: Jan 2004

posted June 19, 2018 01:27 PM

Send New Private Message

Edit/Delete Post

You're most welcome!

--------------------
Maurizio

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 19, 2018 01:37 PM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

I sent an e-mail to the Italian gentleman and he answered (in English) after a very short time. To be sure (it seems that a 4 blades shutter is not the norm on this model, so I may have not seen properly but I'm not at the moment in the same place than the projector), I will send more pictures tomorrow but it seems that it's possible to replace the existing shutter by a 2 blades one. The only dark point is that I will have to send my projector and trust the post but I have no other choice.

--------------------
Dominique

| IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017

posted June 23, 2018 12:33 AM

Email Thomas Knappstein

Send New Private Message

Edit/Delete Post

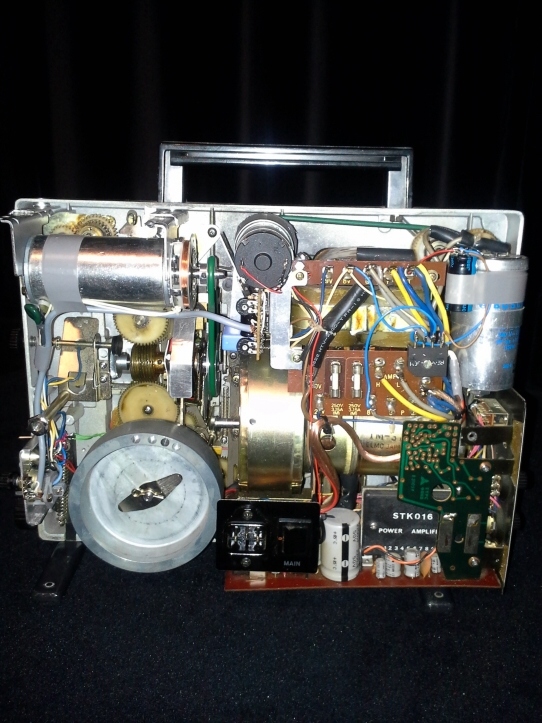

In the Past i changed to a self made two blade shutter Wheel in an original standard ST 1200. The Light output was not much higher than the three blade shutter. Why not?
The Problem is the Head proof Glas in the black Lamp house. But if you throw it away, the Filmpath will get to hot.
So the right Way to do this is mount a DC Motor into the Machine for the Calw mechanic. Than you can change wo Lines of the big original AC Motor and the Fan blows otherwise. Now you can take the heat proof Glas out and it will not be to hot. The Two blades could have a 40 degree dark phase. Now the Lightoutput is even brighter than the standard machine. And use the Elmo Zoom 1:1,0.
A little computer Fan on the Front of the Projektor for more cooling is a good Option.

I did this a few Years ago and it was much much work.

| IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006

posted June 23, 2018 06:55 PM

Email Graham Ritchie

Send New Private Message

Edit/Delete Post

That's fantastic Thomas [Cool]

[Cool]

what voltage is the DC motor and is that a variable speed control at the front? [Smile]

[Smile]

| IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017

posted June 24, 2018 01:18 AM

Email Thomas Knappstein

Send New Private Message

Edit/Delete Post

Hi Graham!

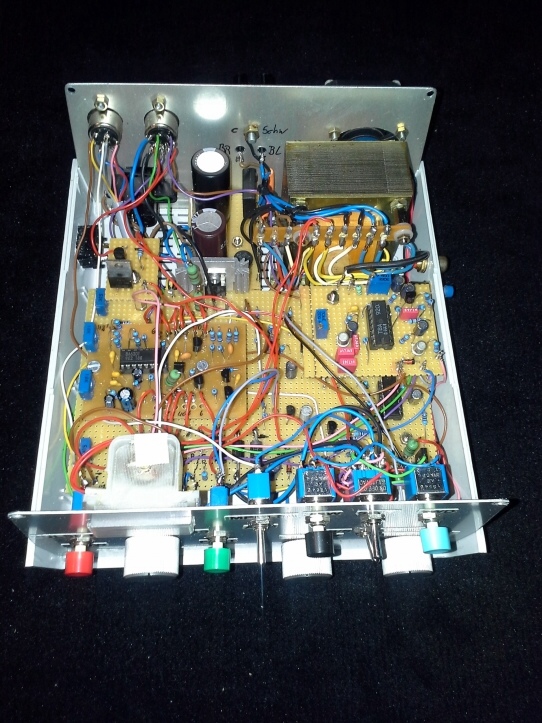

I rebuild the complete ESS electronic from the GS 1200 in an external Housing to drive this Motor. So I can use this ST1200 like a GS with ESS Sync The Sound is comming from a special made DVD.

| IP: Logged

Graham Ritchie
Film God

Posts: 4001
From: New Zealand
Registered: Feb 2006

posted June 24, 2018 11:52 PM

Email Graham Ritchie

Send New Private Message

Edit/Delete Post

That's brilliant Thomas [Cool]

[Cool]

[Smile]

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted June 25, 2018 03:47 PM

Send New Private Message

Edit/Delete Post

i take my hat of to anyone who can do this sort of work. [Wink]

[Wink]

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 26, 2018 07:53 AM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

Thanks for having talked about the filter, Thomas. I asked the Italian specialist about this and he told me that his home manufactured two blades shutters are designed to have also a fan function so he removes the original filter and replaces it by a normal piece of glass. Since I intend anyway to use the projector only at 24 fps, it should be ok. I'm impressed by what you did.

--------------------
Dominique

| IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017

posted June 26, 2018 09:46 AM

Email Thomas Knappstein

Send New Private Message

Edit/Delete Post

Hello Dominique!

In my ST there is no Glas in the Lamphouse.
But I have a little Computer Fan on the Front Cover.

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted June 26, 2018 11:08 AM

Email Dominique De Bast

Send New Private Message

Edit/Delete Post

Looks great !

--------------------
Dominique

| IP: Logged

Daniel Macarone
Expert Film Handler

Posts: 224
From: Summit NJ, USA
Registered: Nov 2015

posted June 26, 2018 09:38 PM

Author's Homepage

Send New Private Message

Edit/Delete Post

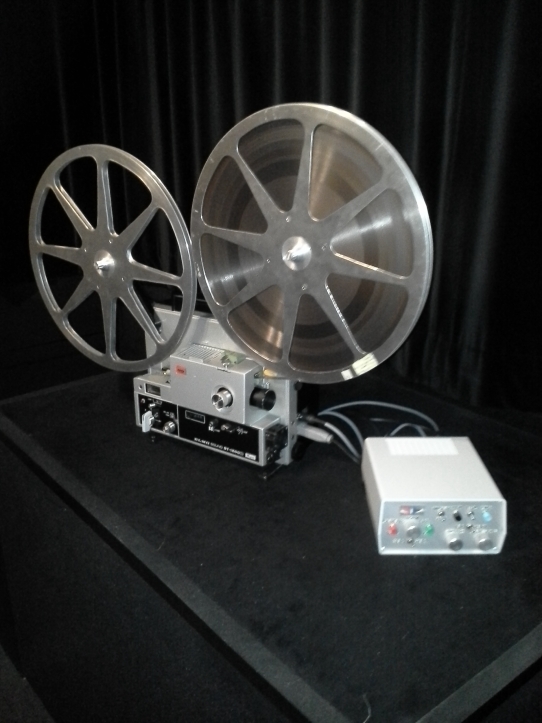

Hi Thomas, How long have you been using your ST-1200 with extended arms for long play?

| IP: Logged

Thomas Knappstein
Expert Film Handler

Posts: 124
From: Erwitte, Germany
Registered: Oct 2017

posted June 26, 2018 10:26 PM

Email Thomas Knappstein

Send New Private Message

Edit/Delete Post

I have used it many Times.
The Reels are on there have a running Time of two Hours.
