Topic: Wanted: Control Knob for Eumig S810D

William Olson
Master Film Handler

Posts: 287
From: Poughkeepsie, NY USA
Registered: Jun 2010

posted September 06, 2013 11:52 AM

The control knob on my Eumig S810D just broke. Can anyone help me find a replacement?

| IP: Logged

Martin Jones
Phenomenal Film Handler

Posts: 1269
From: Thetford , Norfolk,England
Registered: May 2008

posted September 06, 2013 01:28 PM

See this thread for ideas...

http://8mmforum.film-tech.com/cgi-bin/ubb/ultimatebb.cgi?ubb=get_topic;f=1;t=008501

--------------------
Retired TV Service Engineer
Ongoing interest in Telecine....

| IP: Logged

William Olson
Master Film Handler

Posts: 287
From: Poughkeepsie, NY USA
Registered: Jun 2010

posted September 08, 2013 11:30 AM

Thanks. I think my control knob is beyond repair. The part that fits onto the shaft broke into 2 pieces.

| IP: Logged

Mike McCord
Film Handler

Posts: 36
From: Birmingham, AL, USA
Registered: Jun 2013

posted September 09, 2013 07:16 AM

William:
Not true. Using the 2 part plastic repair pare products mentioned in the above referenced thread, I have repaired knobs - even when one of the broken side shaft pieces was missing. Mix this stuff up, and it becomes like putty or clay, and can be molded to make the knob shaft whole. Use something to keep your shaft hole open (slightly smaller than your shaft) then, align the knob and press it onto shaft. Better instructions are on the bottle...

You just might have to do this in two or more steps. Make the knob shaft whole with an insert slightly larger than the shaft. Then, when dry (8 hrs) mix some more and place in the shaft hole and insert knob on shaft - with proper alignment.
Never give up!!

| IP: Logged

William Olson
Master Film Handler

Posts: 287
From: Poughkeepsie, NY USA
Registered: Jun 2010

posted September 09, 2013 08:25 AM

Mike:
thanks for assuring me that this method will work.

| IP: Logged

Mark L Barton
Jedi Master Film Handler

Posts: 621
From: Bristol, South Glos, England
Registered: Mar 2009

posted September 09, 2013 09:43 AM

Theres one for sale on Ebay uk , its just been listed.
http://www.ebay.co.uk/itm/EUMIG-807-or-810-super-8-sound-projector-spares-collection-Control-knob-gates-/271273779077?pt=UK_Photography_Film_Projectors&hash=item3f292d5f85

| IP: Logged

William Olson
Master Film Handler

Posts: 287
From: Poughkeepsie, NY USA
Registered: Jun 2010

posted September 09, 2013 10:37 AM

Thanks Mark

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted March 03, 2015 12:13 PM

We produce the main cotrol knobs for the Eumig S810D (and all others in this series).

The design is an improved design compared with the original buttons. These buttons fit now on all models in the Eumig 800 series.
See:
http://shop.van-eck.net/PP-0011.html?_globalsearch=pp-0011

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted March 08, 2015 01:04 AM

Hi Edwin

If this knob works Ok then could you look into making a main control knob for Elmo ST 1200?

The same knob fits some of the lessor Elmos like St-800, GS-800, St-600 etc.

These knobs work hard and they get loose on the shaft. They rock around and come off and eventually break up.

When this happens, we cannot get these knobs anywhere unless off another Elmo, so it should be on the development list. It will be in demand world wide.

Has anyone else had a problem with these Elmo Control Knobs?

dogtor [Smile]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted March 08, 2015 11:23 AM

I gotta say Frank,I have had 5 ST1200's over the years but never had any issues with the main control knob on any of them.

Plenty of faults and flaws elsewhere I hasten to add, but never any issues with this part. Maybe I have just been lucky in this respect.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted March 09, 2015 02:11 AM

Hi Andrew,

I am a bit surprised at what you say about the life expectancy of Elmo St 1200 knobs in the UK.

Here in Australia these knobs do not seem to stand up to the extremes of the climate. It seems like the plastic knob cracks and the weird steel spring clip on it gets stretched and is too loose.
I have had at least 3 selector knob breakages occurring on my Super 8 Elmos in the past 3 years. I know because I have the broken knobs and the offending Elmo projectors still here. They have now became spare-parts machines for me.
One is an old Elmo St 1200HD and its knob has already been taken to repair another ST 1200 that came in with a loose and broken knob.
Then there is an Elmo ST-800 and an Elmo ST-600. Both all black machines. Both still have their knobs and both knobs are broken and loose. I could not repair them no matter what I tried.

With Dougs help, I will post a picture here of these 2 broken knobs so you can see how flimsily they are made. If you have an Elmo from this series it would be wise to get a spare selector knob when the opportunity arises and treat them gently till then.

I have no doubt that these knobs have a habit of breaking in Australia and I would buy some spare knobs if I could.

dogtor

[Smile]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted March 09, 2015 03:12 AM

Yes, please post some pictures of these broken knobs and for which projectors these are suited. I need to know what the weak spot is, so we can take this in consideration for the design.

I will add this to our design list!

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted March 10, 2015 09:21 PM

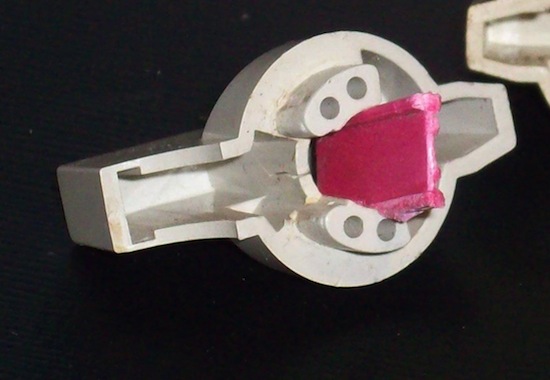

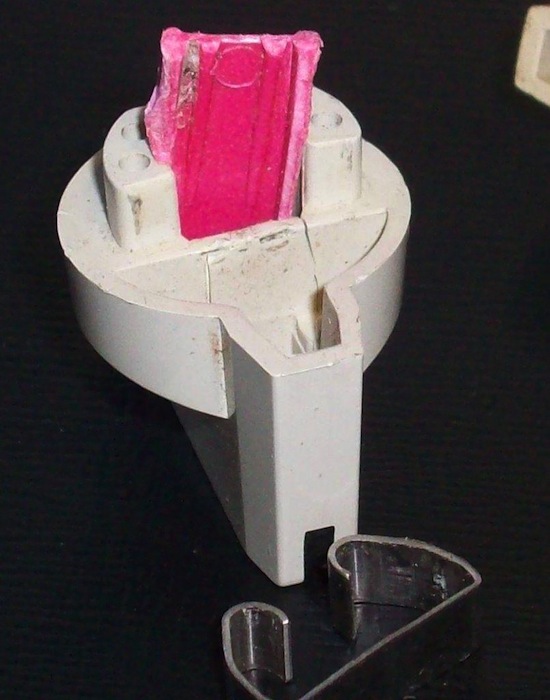

Hi to those that doubt if Elmo knobs are weak.,

Here are a couple of pics that Doug is going to post for me.
See what the Elmo knobs are really like.
I hope Edwin decides to go ahead on this one.

dogtor

[ March 11, 2015, 07:39 AM: Message edited by: Douglas Meltzer ]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted March 11, 2015 12:26 PM

Thx for the pictures. It is on my project list!

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted March 11, 2015 02:15 PM

It appears to me Frank and Edwin, that the whole arrangement would benefit by those hollow sections on the ends of the knob being made solid. Then the shoulders of the inner parts would be better supported I guess and stop the well used shoulders splitting and coming apart from all of the torque stresses whilst turning.

Looking at this Frank, I must have been extremely lucky with all five I've had or perhaps not quite as heavy handed maybe.

Maybe this fits in with Jons Elmo conspiracy theory on early retiring Elmo service Engineers from the sheer number of jobs and spare parts sold! Ha Ha [Wink]

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted March 11, 2015 07:37 PM

I agree Andrew, if the hollows in the knob can be made solid then it would be a substantially stronger knob.
Heavy handed operators could well be the main cause of many cracked knobs. You are obviously gentle on your machines and so its not all due to good luck.

dogtor
[Smile]

--------------------
At Projector Heaven the Focus is always on Detail.

____
[o:/o]<|=- dogtor@projectorheaven.com.au
//``\\
-----------------------------------------------

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted March 12, 2015 04:50 AM

Hopefully Frank, Edwin will make his replica of this from solid nylon then.

It must have something to do with climate though Frank if this is something you see a lot of down under. I would be interested to know if anyone here in the UK has experienced this on more than one occasion.

--------------------
"C'mon Baggy..Get with the beat"

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted May 01, 2015 04:57 AM

We have started the design for this knob. Hope to have a first version ready in a couple of weeks!

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted June 03, 2015 10:46 AM

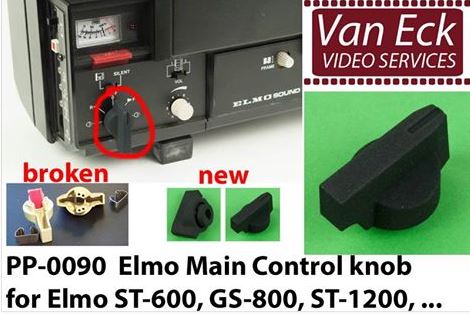

Hello, your wish is my command :-)

Elmo ST-600, GS-800, ST-1200 main control knob
New improved version made of solid nylon.
With specially designed flexible coupling clamp for secure clamping to the shaft.

See: http://shop.van-eck.net/PP-0090.html?_globalsearch=pp-0090

[ June 04, 2015, 09:46 AM: Message edited by: Edwin van Eck ]

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Joel Whybrow
Expert Film Handler

Posts: 100
From: Essex, UK
Registered: Dec 2008

posted June 04, 2015 09:33 AM

Fantastic work, it's great to see someone producing these hard to find parts for the community [Smile]

Do you have plans at all to reproduce the plastic greebly for the ST1200 focus knob? It has a square end that the outer knob attaches to which is part of the shaft that moves the lens but on mine (and from the looks of how delicate it is maybe others) it's snapped clean off. I shoved a screw in there for the moment but it's a bit hokey to say the least!

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted June 04, 2015 09:41 AM

no plan yet for this part. But my intention is to produce any part where there is demand for.

I put it on my list. If someone else need this as well, please reply, so that it becomes higher on the priority list!

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted June 24, 2015 05:37 AM

Edwin, this is great news.

Congratulations on making this hard to get knob for Elmo owners all around the world. I will be ordering this and other parts soon.

dogtor frankarnstein

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted August 05, 2015 02:57 AM

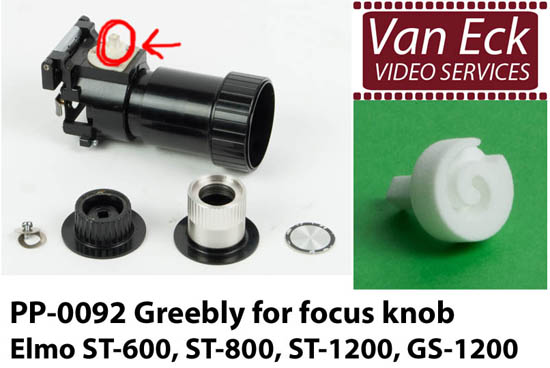

Hi Joel,

The Greebly (spiral part) of the Elmo ST-1200 (among others) is now ready!

See: http://shop.van-eck.net/?_globalsearch=pp-0092

Elmo ST-600, ST-800, GS-800, ST-1200, GS-1200, spiral part for the focus knob - PP-0092

New improved version made of solid nylon.

Fits on the following projectors:
- Elmo GS-800
- Elmo SC-18
- Elmo ST-160
- Elmo ST-180
- Elmo ST-600
- Elmo ST-800
- Elmo ST-1200

Color: white
Weight: 1 grams
Size: diameter: 15mm, lenght: 18mm

Design by Van Eck

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged
