Topic: Bauer P7 friction

Peter van Zand
Film Handler

Posts: 95
From: Amsterdam, Netherlands
Registered: Apr 2009

posted June 01, 2010 03:17 PM

I have a nice Bauer P7 but it has a problem with the feeding reel friction. It is too loose so the film "falls off" the reel. I opened it up but I can't seem to adjust the friction. Anyone has any advise on this?

--------------------
www.vergetenfilm.nl

| IP: Logged

Josef Grassmann
Expert Film Handler

Posts: 190
From: Hennef-Sieg, Germany
Registered: Apr 2005

posted June 07, 2010 12:02 PM

There is no direct adjustment provided.
Start to solve the problem as following:
+ Remove reel-axle, (take care for small, thin washers)
+ Clean needle bearing with solvent and dry
+ check that needles and cage run smoothly, otherwise clean again,
+ grease needle bearing with high viscosity grease (Grade 3)
+ reassemble axle, washers and c-clip

Problem solved now?

| IP: Logged

Joerg Polzfusz
Jedi Master Film Handler

Posts: 815
From: Berlin, Germany, Europe, Earth, Solar System
Registered: Apr 2006

posted June 08, 2010 01:59 AM

Hi,

http://www.olafs-16mm-kino.de/bauer.htm offers a lot of free "Reparaturanleitungen" (Service manuals) as PDF... not sure whether they're in German or multi-lingual (German/French/English)...

Hope this helps,
Jörg

| IP: Logged

Peter van Zand
Film Handler

Posts: 95
From: Amsterdam, Netherlands
Registered: Apr 2009

posted June 10, 2010 10:03 AM

Thank you for your help. I fixed the problem eventually by removing the rewind belt altogether, so the projector cannot rewind but the feeding friction is fine now. Maybe not the most elegant solution, but I have a usable P7 again. That site with the manuals is a great resource btw.
Josef, would you know where I can get the Bauer grease for the grease tanks of my Bauers?

Thanks, Peter

--------------------
www.vergetenfilm.nl

| IP: Logged

Josef Grassmann
Expert Film Handler

Posts: 190
From: Hennef-Sieg, Germany
Registered: Apr 2005

posted August 30, 2010 12:20 PM

the bronze cylinder get blocked after a few refilling and has to be replaced. Often wick strip from grease tank to cam is damaged or blocked as well and needs replacement.
And quite often black soft cover of grease tank falls apart in pieces.
Buying the white grease, only will not solve the problem. Further treatments are required.
If you send us grease tank together with leaf spring an wick as one unit you get a complete replacement unit back ready for installation. It contains freshly filled white BAUER-grease ( no old stored goods)

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted March 08, 2017 04:00 AM

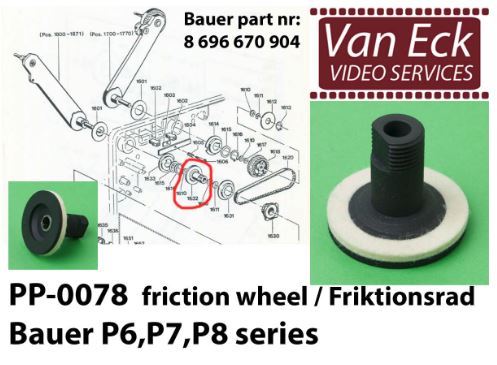

We encounter in many Bauer P6,P7 and P8 projectors problems with the friction. In many cases the cause was this broken part:

Therefore we have started the production of this part and it is now ready!

Bauer P6,P7,P8 - Friction wheel / Friktionsrad - PP-0078 (new)

Replacement part for Bauer nr: 8 696 670 904 (8696670904)

For 16mm Bauer film projectors inthe P6, P7 and P8 series.

Newly produced spare part

Fits among others the following projectors:
- Bauer P6 automatic
- Bauer P6 automatic 300
- Bauer P6 H-synchron
- Bauer P6 studio
- Bauer P7 studio / synchron
- Bauer P7 universal
- Bauer P7 TS universal
- Bauer P8 L universal
- Bauer P8 synchron
- Bauer P8 T400
- Bauer P8 TS universal
- Bauer P8 universal

Weight: 12 grams.
Size: 36mm (height) x 42,7mm (diameter)

Design by 3dformadesign.nl
Made in the Netherlands

More info / ordering:
http://shop.van-eck.net/film-projector-parts/p-1a/PP-0078.html

--------------------
Edwin van Eck
Van Eck Video Services
