Author Topic: ELMO 16-CL DeLuxe Service Manual
Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005


 - posted December 11, 2011 11:43 AM      Profile for Flavio Stabile     Send New Private Message       Edit/Delete Post
I'm looking for it... anyone has got it and can share a copy with me?
It should be the DELUXE version...

Thanks
F.

 |  IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005


 - posted January 19, 2014 02:04 PM      Profile for Flavio Stabile     Send New Private Message       Edit/Delete Post
Still looking for it.... Anyone?

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted January 19, 2014 02:52 PM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
If you understand German, Oldtimer Cameras have a service manual in that language.
http://www.oldtimercameras.com/stock/Model.asp?Model=3415&ModelPage=true

--------------------
Maurice

 |  IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005


 - posted February 08, 2014 10:22 AM      Profile for Flavio Stabile     Send New Private Message       Edit/Delete Post
Thanks but the STANDARD version is also available on internet, for instance here:

ELMO 16-Cl Service Manual

but I'm looking the DELUXE version, which is different... All the commands to start, stop, rewind, lamp, are switches and in my projector there is problem in the elctronic card somewhere... So I need to find the scheme to have it repaired.

Flavio

 |  IP: Logged

Jean-Louis Seguin
Junior
Posts: 20
From: Montreal Quebec Canada
Registered: Sep 2010


 - posted February 08, 2014 12:56 PM      Profile for Jean-Louis Seguin     Send New Private Message       Edit/Delete Post
Flavio,

I have the boards for this projector salvaged off another machine if you need it.
Of course, it may be defective also. No way to test.

Jean-Louis

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted February 10, 2014 02:24 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
I have never heard of this De-Luxe model. Can anybody post a picture of one?

--------------------
Maurice

 |  IP: Logged

Mitchell Dvoskin
Expert Film Handler

Posts: 128
From: West Milford, NJ
Registered: Jun 2008


 - posted February 11, 2014 02:43 PM      Profile for Mitchell Dvoskin   Email Mitchell Dvoskin   Send New Private Message       Edit/Delete Post

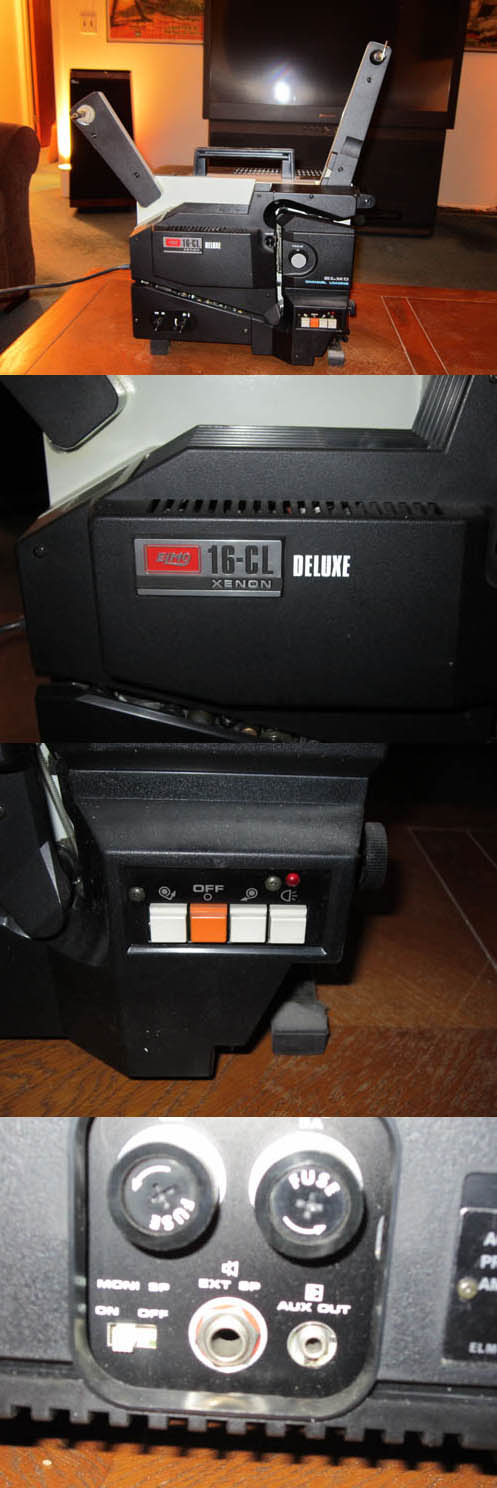

On the cart, behind the 35mm Marin MP-30, is an Elmo CL-16 Deluxe 250 watt Xenon. There is a row of electronic push buttons that activate all the motor functions, instead of the normal mechanical knob/lever. It's actually rather neat. About a decade ago, I upgraded the 35mm to a Kinoton FP-23, and the Elmo to a CX-550. I still have the CL-16 Deluxe Xenon, and if I get a chance I'll dig it out and take a better picture.

 -

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted February 11, 2014 03:06 PM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Thank you, Mitchell, for the information.
Do I take it that the Deluxe model is only supplied in a Xenon version?

--------------------
Maurice

 |  IP: Logged

Mitchell Dvoskin
Expert Film Handler

Posts: 128
From: West Milford, NJ
Registered: Jun 2008


 - posted February 21, 2014 01:42 PM      Profile for Mitchell Dvoskin   Email Mitchell Dvoskin   Send New Private Message       Edit/Delete Post
> Do I take it that the Deluxe model is only supplied in a Xenon version?

I do not know. The one I got is the only one I have personally seen. It actually says "CL-16 Deluxe Xenon" on the lamp house cover.

 |  IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005


 - posted March 22, 2014 09:24 AM      Profile for Flavio Stabile     Send New Private Message       Edit/Delete Post
Hi Jean-Louis,

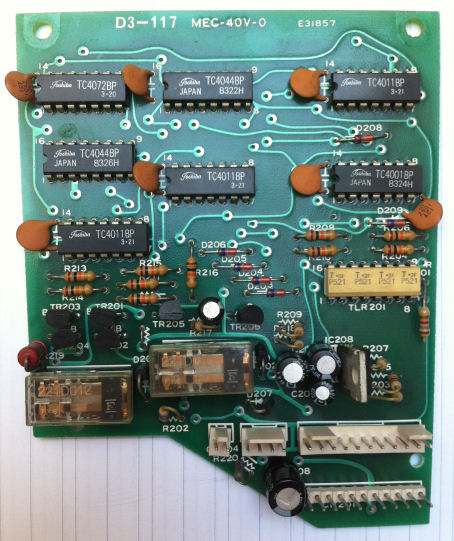

i'm trying to repair the following board which controls the start, stop and lamp on/off...

 -

Do you have also this one?

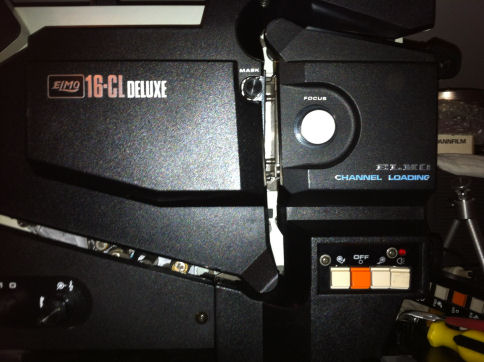

Here below is picture for Maurice to show the ELMO 16-CL DELUXE, but halogen not Xenon...
I Didn't know a Xenon version of the DELUXE existed!

 -

Thanks
Flavio

 |  IP: Logged

Mitchell Dvoskin
Expert Film Handler

Posts: 128
From: West Milford, NJ
Registered: Jun 2008


 - posted April 16, 2014 04:11 PM      Profile for Mitchell Dvoskin   Email Mitchell Dvoskin   Send New Private Message       Edit/Delete Post
I didn't know that a halogen version existed...

 -

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted April 17, 2014 02:20 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Flavio
I am sorry to be late in thanking you for posting your picture.

--------------------
Maurice

 |  IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005


 - posted April 19, 2014 07:46 AM      Profile for Flavio Stabile     Send New Private Message       Edit/Delete Post
Hi Maurice,

no problem at all! [Wink]

I only hope that someone will help me with any suggestion about how to repair the board...

Flavio

 |  IP: Logged

Flavio Stabile
Jedi Master Film Handler

Posts: 707
From: Roma, Italia
Registered: Feb 2005


 - posted May 30, 2014 01:35 AM      Profile for Flavio Stabile     Send New Private Message       Edit/Delete Post
Still looking for it...

 |  IP: Logged

Patric Favreau
Junior
Posts: 1
From: Laval, Quebec, Canada
Registered: Jan 2017


 - posted January 20, 2017 02:10 PM      Profile for Patric Favreau   Author's Homepage   Email Patric Favreau   Send New Private Message       Edit/Delete Post
Hi Flavio, i'm also looking for the service manual for a 16-CL ETC Deluxe or 16-CL Deluxe . Did you find one ?

 |  IP: Logged

Alessandro Pavoni
Master Film Handler

Posts: 255
From: Zürich/Switzerland
Registered: Sep 2009


 - posted July 31, 2019 11:27 AM      Profile for Alessandro Pavoni   Email Alessandro Pavoni   Send New Private Message       Edit/Delete Post
Hi Flavio, did you get the service manual for the Elmo CL Deluxe?
I need one, thanks

 |  IP: Logged
