Author

Topic: NATCO schematic

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted October 08, 2012 05:08 PM

Anybody know where I can get a schematic for NATCO model 3030 projector?
Thanks

| IP: Logged

Josef Grassmann
Expert Film Handler

Posts: 190
From: Hennef-Sieg, Germany
Registered: Apr 2005

posted May 16, 2016 02:47 PM

I´m also searching for NATCO circuit diagramms.
There is no serial number and no Model/ Type visible.
Tube amp will supply about 15 to 20 WATTS; I guess.
I`ll pay for it.

Thanks in advance
Josef

| IP: Logged

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted May 16, 2016 11:11 PM

I have schematics for the NATCO 3030 and the 3015. Does yours look like either of these?

| IP: Logged

Josef Grassmann
Expert Film Handler

Posts: 190
From: Hennef-Sieg, Germany
Registered: Apr 2005

posted May 17, 2016 09:47 AM

Hello Barry,
thanks for quick response and information that you own both.

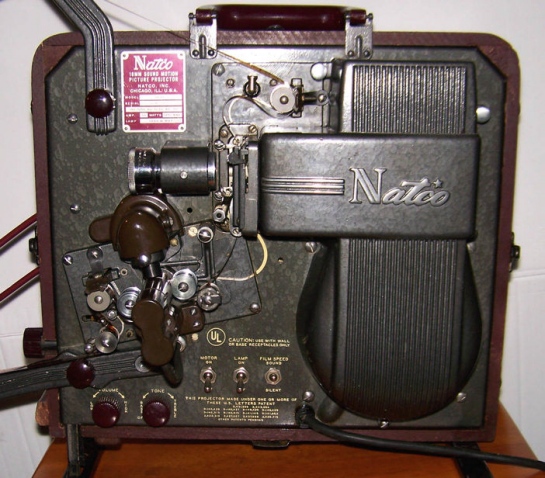

First picture on top shows my projector, but large label with threading diagram and small label on arm are missing.
How much cost circuit diagramm?

Regards
Josef

| IP: Logged

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted May 17, 2016 11:01 AM

No cost Josef. If you can PM me your email, I can send you a PDF file of the diagram. It is a model 3015.

| IP: Logged
