Topic: Ampro Stylist 16mm at thrift store

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted July 21, 2013 04:26 PM

Email James Peterson

Send New Private Message

Edit/Delete Post

Ok, I'm sick lol and couldn't pass on an Ampro Stylist 16mm tube sound projector I saw at the thrift store. I think I paid a lot for it ($38 USD w tax), but it was too interesting/beautiful to pass on. It is one beautiful piece!!

I have the slot load elmo and eiki models and 50 or so films already so I bought it just to have. I have not powered it up yet as my cold wiring inspection showed that the cord to the exciter lamp has bare wires. I'm going to replace that and see what she does.

Any ideas on safely powering these up? For tube stuff I use a Variac to power stuff up, but my Variac is only 500w. This Ampro has the biggest, largest, most intimidating bulb I've ever seen!!! DFD 1000watts?!!!!!!

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

Lee Bombard
Expert Film Handler

Posts: 139
From: Santa Clarita, CA, USA
Registered: May 2013

posted July 21, 2013 05:54 PM

Email Lee Bombard

Send New Private Message

Edit/Delete Post

James -
The Ampro's are very cool looking. How about a picture?

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted July 21, 2013 07:18 PM

Send New Private Message

Edit/Delete Post

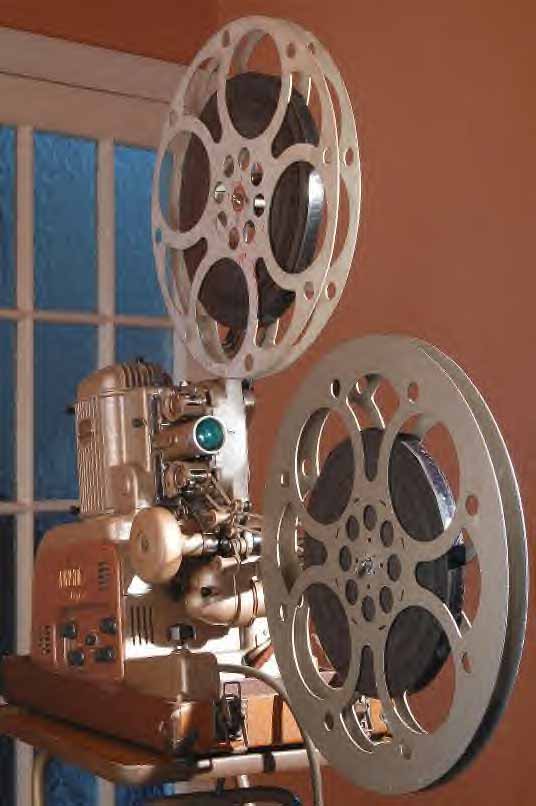

Not James's particular machine, but here is a great photo of the awesome Ampro:

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted July 21, 2013 08:53 PM

Email James Peterson

Send New Private Message

Edit/Delete Post

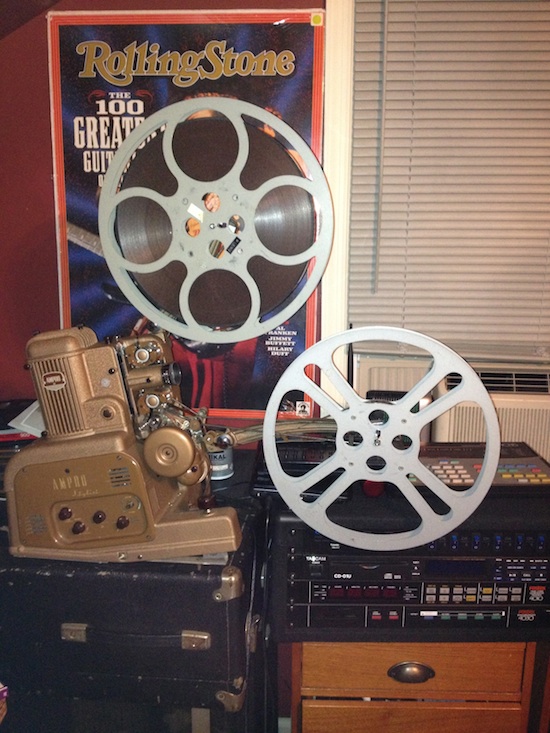

Here is a picture of my newly acquired Ampro Sylist sitting on top of my Fender Rhodes piano (sadly the Ampro is missing a tiny bakelite knob:

The case with speaker is in the shed out back--the wood needs to be sured up, but the speaker looks great!

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

Lee Bombard
Expert Film Handler

Posts: 139
From: Santa Clarita, CA, USA
Registered: May 2013

posted July 22, 2013 12:07 AM

Email Lee Bombard

Send New Private Message

Edit/Delete Post

James - That looks awesome!

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted July 22, 2013 02:34 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

James
Use your Variac to check the motor and, then, the amplifier.
Make sure you do not turn on the lamp! You can always check it with a meter, although a close visual inspection will reveal if the filament is intact.

--------------------
Maurice

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted July 22, 2013 11:11 AM

Email James Peterson

Send New Private Message

Edit/Delete Post

Thanks Lee and Paul! And thanks Maurice, that sounds like a good plan for the Variac power up. Hopefully I have time during the work week to cut up a brown extension cord to use as wire for the exciter socket. It looks like there are only 4v, but 3/4 amps going to it. I'll keep everyone posted once I get somewhere! Hopefully the tube amp isn't shot--recapping a tube amp is one of those all night weekend projects for me...lol!

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted July 24, 2013 11:36 PM

Email James Peterson

Send New Private Message

Edit/Delete Post

Replaced the exciter lamp wiring and 3 other frayed wires inside, removed/inspected the amp and brought it to life on my Variac. Tubes warmed up and exciter bulb lit!--no hum whatsoever!! ( I used my bell and howell speaker as a load for the tube amp) The capacitors are good! Pulled film manually around drum and heard it! I brought the motor up slowly and heard bad scrapping at 50volts. The cooling fan needed to be adjusted--no more scrapping all the way to 115 v!! Motor sounds great. Plugged it in the wall and the 1000w projection lamp lit up!! I am very happy so far!

Noticed that the motor belt inside is missing--anyone have a picture on how to route that belt and where I can source one? ( is it rubber, cloth???). I'm thinking it goes from the lamphouse to the motor with the idler pressing on the back of he belt.

Also noted that there's a selenium rectifier in there and thinking I need to replace I with a diode and resistor for safety.

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted July 25, 2013 11:58 AM

Email James Peterson

Send New Private Message

Edit/Delete Post

Wow, that belt on Ebay for the Ampro Sylist is close to $30! Anyone ever used a standard flat o-ring belt 12" L x 5/6" W?

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted August 01, 2013 10:10 PM

Email James Peterson

Send New Private Message

Edit/Delete Post

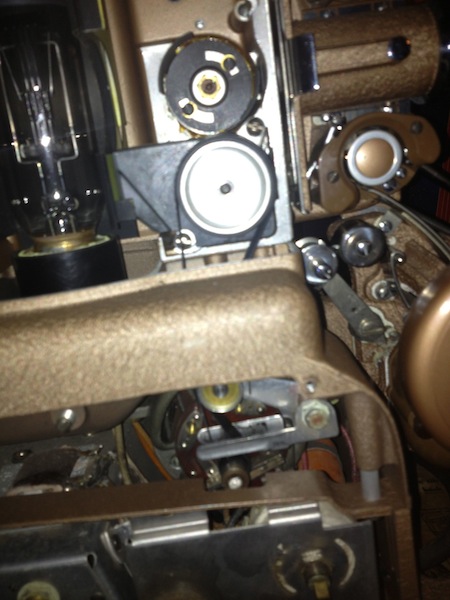

I received the drive belt for the Ampro Stylist today. Anyone with an Ampro know how to route that belt?? I took a picture (below) of how I routed it, but the motor seems to be loading up: It drags, smells, and sparks right around that area that looks like points on an old car.

Help!

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 02, 2013 09:55 AM

Email Maurice Leakey

Send New Private Message

Edit/Delete Post

James
Sorry I can't help with the belt, never having owned an Ampro (never very popular in the UK), but the "points in an old car" sound as if they may be connected with stabilising the speed. They open and close quite rapidly to keep the motor at a constant speed. They might be sparking. You could try cleaning the contacts with very fine emery paper. Very gently!

But, of course, I could be quite wrong with my diagnosis.

--------------------
Maurice

| IP: Logged

Robert Crewdson
Phenomenal Film Handler

Posts: 1031
From: UK
Registered: Jun 2013

posted August 02, 2013 11:21 AM

Send New Private Message

Edit/Delete Post

Unusual looking machines, the reels appear to get in the way of the lens.

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted August 02, 2013 11:42 AM

Email James Peterson

Send New Private Message

Edit/Delete Post

Actually, there is a lower position for the lower arm that sends the reel closer to the floor to clear the lens. I didn't have mine in the lower position when I took the picture. IMHO the lower position doesn't look as neat--but form follows function!

--------------------
James "Pete" Peterson II

Far too many machines--I'm sick

| IP: Logged

Robert Crewdson
Phenomenal Film Handler

Posts: 1031
From: UK
Registered: Jun 2013

posted August 02, 2013 12:24 PM

Send New Private Message

Edit/Delete Post

All I could find was that they were made in Chicago, same as B&H. So plenty of work in that city.

| IP: Logged

David Pannell
Phenomenal Film Handler

Posts: 1072
From: Horsham, West Sussex, UK
Registered: Nov 2004

posted August 03, 2013 01:32 PM

Author's Homepage

Send New Private Message

Edit/Delete Post

Hi James,

Thanks for your e-mail. I have replied with a few questions. Hopefully between us, we can get the beautiful Ampro singing again.

One point, however. Unless I am mistaken, or have mis-read what you say, I understand that you have replaced the photocell cable with ordinary twin cord. This is incorrect, as it should be high grade co-axial cable of 50 or 75 ohm impedance.

Also, I am not aware of any of the Stylist or Major models having an idler pulley - something strange there!

If you care to cast a look over some early posts of mine, using either my name or Ampro, you will find some pictures and info on my Ampros. As I said earlier, they are BEAUTIFUL machines, especially the Major series.

Speak later, no doubt!

Cheers,

--------------------
Dave.

Valves and celluloid - a great combination!
Early technology rules OK!

| IP: Logged

James Peterson
Film Handler

Posts: 64
From: Williamsburg, VA, USA
Registered: Jun 2013

posted August 03, 2013 03:14 PM

Email James Peterson

Send New Private Message

Edit/Delete Post

Thanks Dave for responding. I replaced the exciter lamp cord with twin cord--the photocell cord was in perfect condition so I didn't have to mess with that. If you look at my picture a few posts up, you can see the idler pulley (name?) near the bottom of the picture. I think I read in the service manual that this pulley goes on the back of the belt.

Talks about the "idler roller" on page 15 here--this is my exact model:
http://www.paulivester.com/films/projector/Ampro_Stylist.pdf

And I agree, it's a beautiful machine--certainly want to fix it!

Thanks,
James

--------------------
