Topic: Eiki 16mm loudspeaker splitter

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted June 04, 2017 05:51 AM

Hi All,
I came accross a new Eiki 16mm loudspeaker splitter (don't know if it's its real name), but I got no specs on it and found nothing on the net.
Does any of you know how it works in terms of Ohms of the two speakers?
Should I consider the usual rule for resistance of objects connected in parallel?

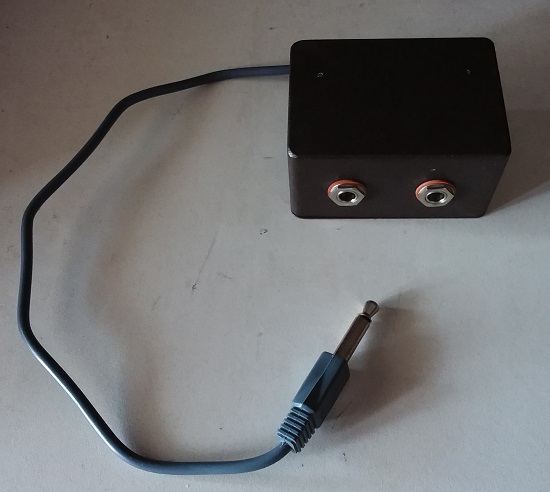

Here's a picture:

Thanks!

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted June 04, 2017 06:07 AM

Fabrizio
Why not open it and check the wiring. The plug certainly looks like those used with Eiki speaker leads.

--------------------
Maurice

| IP: Logged

Fabrizio Mosca
Master Film Handler

Posts: 346
From: Milano, Italy
Registered: Jan 2004

posted June 04, 2017 06:28 AM

Hi Maurice,

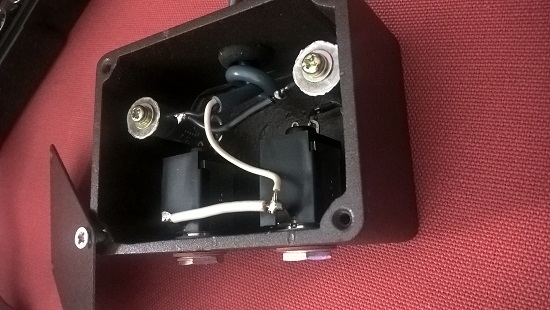

I've done, but there are some components I'm not able to recognize (see pic)

Consider that it's an origial Eiki piece. Apart from the cable and marked Eiki plug, it came from a technician who repaired projectors (he mainly had xenon spare parts)

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted June 04, 2017 10:02 AM

Fabrizio

Looking at one of my Eiki/Elf projectors I see that the two speakers in its side cover are each 16 ohms. They are wired in parallel thus giving a total impedance of 8 ohms at the projector's speaker output socket. This is confirmed by the tag alongside the socket marked "SPEAKER 8 OHMS".

In the box illustrated the two jack sockets certainly look as if they are wired in parallel.

I suspect that the two unknown components provide some form of impedance matching to allow two standard Eiki/Elf side cover speakers to be connected for extra sound output.

Referring to the manual for a SNT/ENT there is no mention of this accessory, only "25 watt RMS into 8 ohm load".

Perhaps another member will know the correct details about this accessory.

--------------------
Maurice

| IP: Logged
