Topic: Anamorphic lens for my Euming S940

Garry Robert Duffield
Junior
Posts: 23
From: Sydney, Australia
Registered: Jul 2013

posted August 29, 2013 03:10 AM

I'm wondering if the Isco Gottingen Cinelox Anamorphic MC 2X Schneider 90m f/2 Lens will be OK for screening cinemascope films on my S940.
You can post or email me on garry.duffield@bydeluxe.com.au
I've only got till tommorrow to obtain it.

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 29, 2013 03:36 AM

If this is the item, it is for a 35mm cinema projector and would probably not be suitable for your requirements.
http://www.ebay.com/itm/ISCO-GOTTINGEN-CINELUX-ANAMORPHIC-MC-2X-Schneider-90m-f-2-Projector-Lens-/321191628775?pt=LH_DefaultDomain_0&hash=item4ac8834fe7

--------------------
Maurice

| IP: Logged

Alexander Vandeputte
Expert Film Handler

Posts: 243
From: Belgium
Registered: Nov 2009

posted August 29, 2013 04:00 AM

Hello Gary, if you refer to the Ebay offering: yes you can use it but it is not ideal. As you can clearly see on the pictures: the back element is, a 90mm Schneider lens, which is screwed onto an Isco anamorphic attachment. The 90mm will be useless for you, but the anamorphic attachment will do the job. However this is one big heavy lens and you will have to find a way to place it in front of your machine. You may also experience some vignetting when using your zoom lens at its wider setting. For super 8 scope projection, I find the 16mm scope lenses far more ideal. They are more compact allowing for easier installation and are more flexible allowing for a wider angle of projection without vignetting.

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted August 29, 2013 06:27 AM

Garry
Most scope lenses will probably actually work, but you have to consider how they are to be installed. The two that you have mentioned are very large and obviously quite heavy, therefore you will need some form of very sturdy bracket or something similar to support the lens in front of your prime lens.

Look for a much smaller and compact lens which will be more easy to connect in some way with your Eumig.

--------------------
Maurice

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted February 24, 2015 11:05 AM

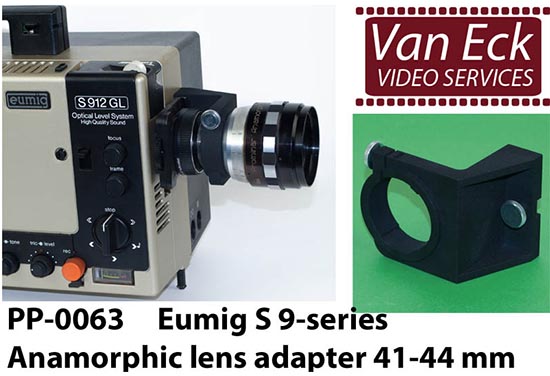

we have now developed a lens adaptor for Anamorphic lenses for the Eumig 9xx serie.

see: http://shop.van-eck.net/PP-0063.html?_globalsearch=pp-0063

Note, because we make it using 3D printing, it is relatively easy to create adaptors for other lenzes/projectors. If you have a specific need, please let me know.

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013

posted February 24, 2015 11:35 AM

Great, I have two Eumig projectors for which that accessory would fit.

--------------------
Dominique

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted February 24, 2015 12:31 PM

Is the Van Eck bracket made of metal or plastic?

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted February 24, 2015 12:34 PM

The web-site says it's nylon.
http://shop.van-eck.net/PP-0063.html?_globalsearch=pp-0063

--------------------
Maurice

| IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012

posted February 25, 2015 02:44 AM

Yes Maurice, all these 3D printed parts have to made from some kind of acrylic. No metal 3D printers yet. Just CNC machines.

--------------------
