8mm Forum: Eumig Mark S 709 Control

»	8mm Forum » 8mm Forum » Eumig Mark S 709 Control

UBBFriend: Email this page to someone!

Author

Topic: Eumig Mark S 709 Control

Bob Furmanek
Film Handler

Posts: 79
From: Clifton, NJ, USA
Registered: May 2013

posted January 20, 2018 04:18 PM

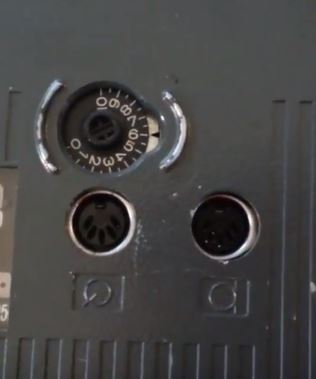

Someone recently borrowed my Eumig projector and changed this setting on the back thinking it was a volume control. In all the years of owning it, I've never touched this control and can't find my manual. There are numbers from 1 through 10. Does anyone know what number this indicator should be set to?

Now I'm wondering, what does it do?

Many thanks!

--------------------
Bob Furmanek
www.3dFilmArchive.com

| IP: Logged

frank arnstein
Jedi Master Film Handler

Posts: 534
From: Gold Coast. Australia
Registered: Jan 2005

posted January 21, 2018 02:10 AM

Hi Bob

That's the sound recording level control. It's not relevant unless you want to record more sound onto the existing film sound track.

dogtor frankarnstein
[Smile]

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted January 21, 2018 02:29 AM

Frank is correct.

It is used to match the sound source used and is set at the factory to an average level. You can adjust the level.

1) Press the grey super-imposition key and the red recording key
2) Start the sound source to be used
3) Turn the recording level control clockwise until the red recording signal lights up
4) Release the over-recording key by pressing it again

--------------------
Maurice

| IP: Logged

Bob Furmanek
Film Handler

Posts: 79
From: Clifton, NJ, USA
Registered: May 2013

posted January 21, 2018 07:59 AM

That's great information. We've had this projector since 1971 and the manual is around here - someplace.

It hasn't been used in several years and takes a little while to get up to speed. Is that normal when a projector has been sitting or does something need grease or lubrication?

--------------------
Bob Furmanek
www.3dFilmArchive.com

| IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007

posted January 21, 2018 09:51 AM

It's always a good idea to run the motor for a few minutes to warm up before engaging its drive.

--------------------
Maurice

| IP: Logged

Bob Furmanek
Film Handler

Posts: 79
From: Clifton, NJ, USA
Registered: May 2013

posted January 21, 2018 10:21 AM

I appreciate the advice and will do that.

Thank you, Maurice.

--------------------
Bob Furmanek
www.3dFilmArchive.com

| IP: Logged
