Author Topic: My new and first 9,5 projector
Pierre Mdihi
Film Handler

Posts: 86
From: Strasbourg, France
Registered: Jan 2019


 - posted June 10, 2019 02:11 PM      Profile for Pierre Mdihi   Email Pierre Mdihi   Send New Private Message       Edit/Delete Post
hi everyone,

This week-end at the flees market, i found this pathé projector. It's seem in good condition, no signs of rust and no signs of impacts and the motor seems to turn without problem. I don't know if it's a good projector for projection because i just collecting projector that can be use for projection i'm not intrested to make a museum. Searching on internet i found that the sound part is missing, there is alternative to get sound?

The upper belt is missing, do you know were i kind found it ? This one can work on it:
https://www.ebay.fr/itm/Courroie-acier-de-bras-projecteur-Pathe-Kok-type-C/163663020642

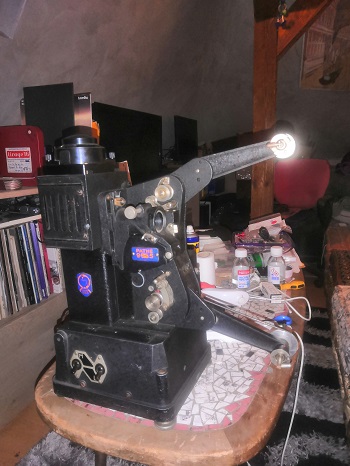

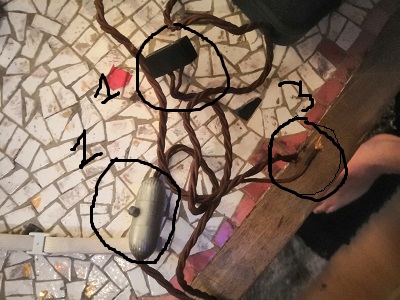

Here some pictures of my new acquisition:

 -

 -

If you have some advice to use or restore this projector, i will gladly take it.

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted June 10, 2019 03:03 PM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
The projector is a Pathe silent model S introduced in November 1937. It had a 15volt, 200watt lamp.

The sound Vox arrived in April 1938. The amplifier had an output of 2 watts. At this same time an S owner could buy the amplifier, soundhead and loudspeaker to convert his S into a Vox.

They were manufactured in France and after the invasion in 1940 production ceased, and was never to reappear after the war.

However, they are a sturdy projector and many are still in use. In fact, I have one which has been converted with a transistorised amplifier and an A1/232 lamp.

Here's a Vox working with the film "Betty Boop and Grampy."

https://www.youtube.com/watch?v=GGTrM0b7Lz0

--------------------
Maurice

 |  IP: Logged

Dominique De Bast
Film God

Posts: 4486
From: Brussels, Belgium
Registered: Jun 2013


 - posted June 10, 2019 03:05 PM      Profile for Dominique De Bast   Email Dominique De Bast   Send New Private Message       Edit/Delete Post
Congratulations. I haven't a projector like this so I don't know what it worths. I assume the lamp is a P28. Don't put a higher wattage than the one advised for this projector. I personnally try to be very carefull with any metallic device that has electrical wires inside. Take the time to look carefully at the state of those wires. Many old projectors have no belt on the feeding harm and work without problem. This belt is usually needed only if you want to rewind with the projector, something I would not advise. Should your model (again, I don't know it) need thé belt to avoid the uper spool to run to quickly, you could still use (softly) your finger to make a test (before investing any money or time). About the sound, it looks like being an original silent model (I looked at the pictures on my tiny phone screen). The most important thing is your safety. Remember there is no ground on this machine that was designed at a time when safety had different standards than now. The fact that the projector is well used should make you very carefull about electric shoks risks.

--------------------
Dominique

 |  IP: Logged

Lee Mannering
Film God

Posts: 3216
From: The Projection Box
Registered: Nov 2006


 - posted June 11, 2019 12:32 AM      Profile for Lee Mannering     Send New Private Message       Edit/Delete Post
Electrical rewire for your own safety my friend will be the first thing.
Like Maurice mine have had a soup up as we used to call it. Transistor amp, Halogen lamp and I shortened the drive chain in the back one link as these stretch over 80 years of use pretty much eliminating audio wow.
I also recently fitted a analogue to digital sound circuit as well which now has a digital optical feed to my AV amp. Bit of a 9-5 first perhaps.

 |  IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003


 - posted June 11, 2019 10:27 AM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Well done Lee - Digital 9.5mm sound! [Smile]

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Pierre Mdihi
Film Handler

Posts: 86
From: Strasbourg, France
Registered: Jan 2019


 - posted June 11, 2019 02:42 PM      Profile for Pierre Mdihi   Email Pierre Mdihi   Send New Private Message       Edit/Delete Post
Thanks for the comments. I'm glad to hear that it's a projector who can be use for looking at movie not just a piece of museum. I will take a look inside and see if it's easy to change the electric wire. I have never do this but if i have to simply change a wire i may be able to make it. I will inform you if the projector is working.
I may come back to you to know how to place a more recent light inside and how your system to have sound is working.

 |  IP: Logged
