Topic: Elmo ST-1200 - one-way wheel for take up arm - PP-0156 (new)

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted April 05, 2016 04:53 AM

Hello all,

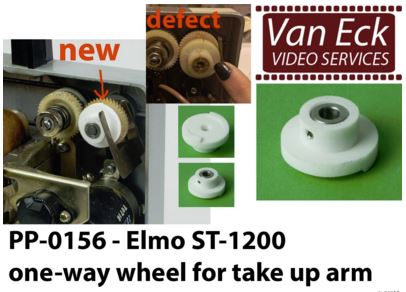

It got requests from Sweden and Italy and from our own film projector repair workshop to fabricate the one-way whell for the take up arm of for the Elmo ST-1200 series.

In many of the Elmo ST-1200s, this parts is developing cracks.

This part is ready now. See for more information:

http://shop.van-eck.net/p-1a/PP-0156.html?_globalsearch=pp-0156

If you know of an other projector, which uses this same wheel, please let me know!

Greetings from the Netherlands.

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Mathew James
Jedi Master Film Handler

Posts: 740
From: Hamilton, Ontario, Canada
Registered: Dec 2014

posted April 05, 2016 07:02 AM

Yes ,indeed!!!
Thanx Edwin! That looks like a great fix.
I may need one of these myself soon as i see some small cracking starting on some gears....

--------------------
--
Cheers,
Matt 📽

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted April 07, 2016 08:33 AM

I'm pretty sure this part is used in ST-800 too.

-mostly because mine cracked and I installed one of my spares.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015

posted April 07, 2016 08:55 AM

Here are some pictures of the inside op the ST-800:

http://www.van-eck.net/itable.php?lang=en&size=0&cat=film&merk=52&type=ST-800%20M

On these pictures, I can't find the part, or am I looking wrong?

--------------------
Edwin van Eck
Van Eck Video Services

| IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003

posted April 07, 2016 09:04 AM

It is the exact same spot as on the ST-1200.

Your picture of the ST-800 with the back off would show the part, except there is other stuff in the way (power transformer, for one thing).

The machine in the picture has some funky assembly I don't recognize. It looks like extra fuses mine doesn't have. I have the single 3 Amp fuse on the rear panel.

--------------------
All I ask is a wide screen and a projector to light her by...

| IP: Logged

Luis Caramelo
Master Film Handler

Posts: 494
From: Funchal
Registered: Feb 2011

posted April 12, 2016 01:27 PM

hello! Edwin you got an p,m

best;
luis caramelo

| IP: Logged

Tom Photiou
Film God

Posts: 4837
From: Plymouth U.K
Registered: Dec 2003

posted April 12, 2016 04:19 PM

This is a good release, well done,
one of the biggest culprits of these being broken over the years is the users, us. As was explained to me by an Elmo professional, upon rewinding one of the things that puts stress on these is when the film has rewound and the rear reel is stopped dead from spinning, its always best to let it stop on its own. [Wink]
