Eiki SL2 scope lens holder question

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Eiki SL2 scope lens holder question

    Something I've been looking for is the screw on scope lens holder for my SL2 super slot loader, I have found one for the smaller lens's but I have a sankor 16D which I think is 52mm at the rear so I need the larger lens holder. I make do at present time but it would be nice to get the correct holder for my projector which will make life much easier for scope shows.

  • #2
    How about going (semi) DIY route? That's how I got my scope attachment made.

    If you can get the exact measurement and know someone willing to do 3D printing as per your design, the rest would be pretty straightforward then.😀

    Click image for larger version

Name:	20230923_113354.jpg
Views:	152
Size:	47.1 KB
ID:	87451

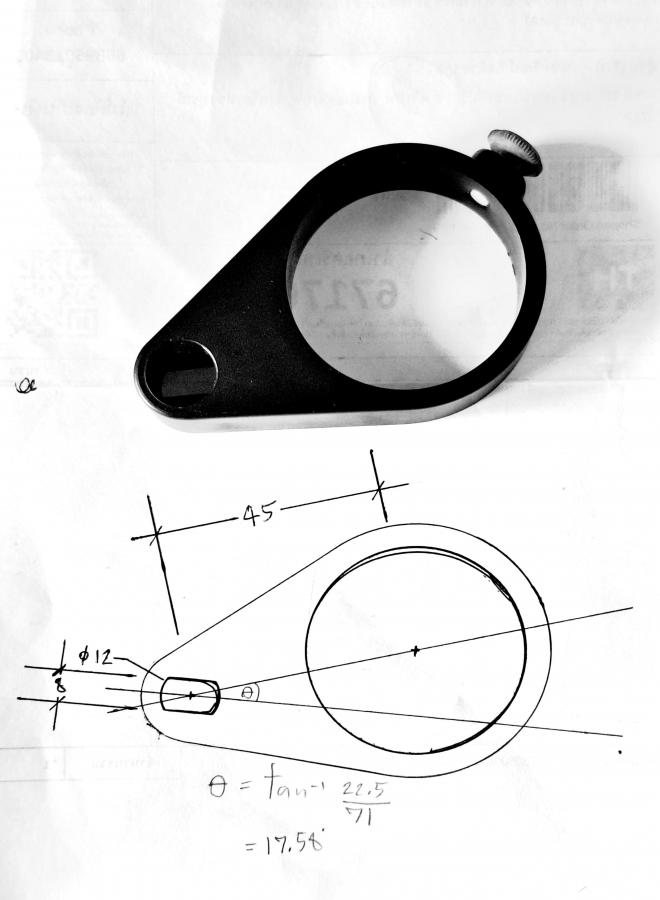

    For example this is the layout for NT2's attachment which I provided to a local 3D printing service a while back. Came out just perfect, and still in use today.

    Click image for larger version

Name:	20230923_120243.jpg
Views:	157
Size:	45.8 KB
ID:	87452

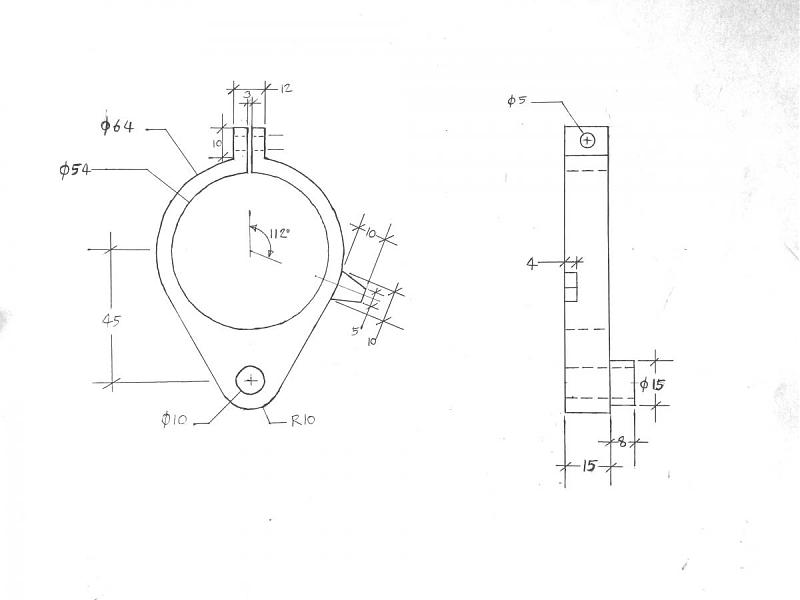

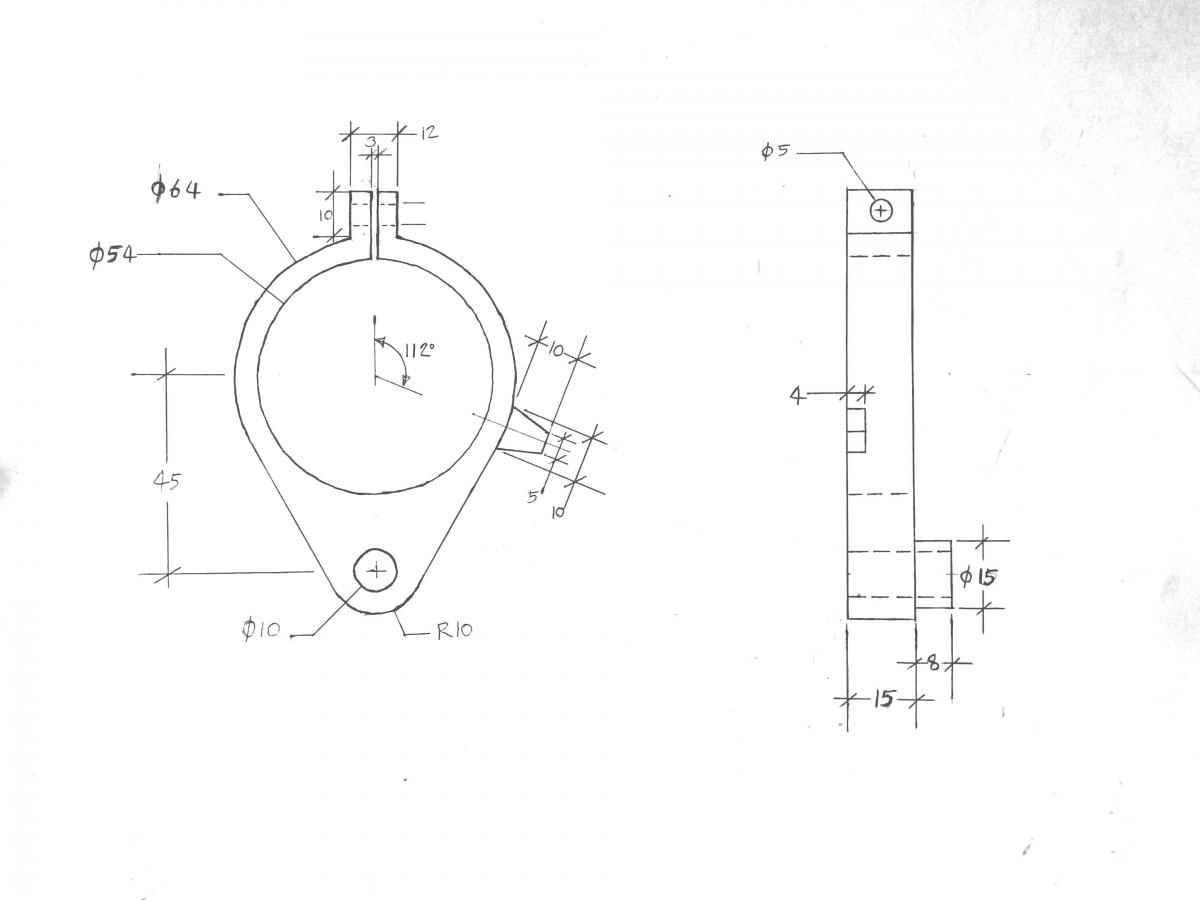

    Also about to do the same for my SL2 as well. Not yet finished, but now I have all vital dimensions in my hands. The rest should be fairly easy then.😉

    Comment


    • #3
      Thats very good, Thank you, If I cant find a ready made one then this is useful.
