  • HIGH INTENSITY DISCHARGE Bolex/Eumig sound projector lamp conversion

    The first thing to say is all this is new to me although I have seen converted Elmo projectors using this modification to achieve greater screen illumination and a Elf 16mm projector. The light is good but the colour temperature from the HID lamp is different so the projected image will look somewhat different to a regular Halogen lamp which will probably trouble this Super 8 film maker a little always striving for perfection.

    I believe the colour temperature of this HTI lamp to be around 6000K whereas a standard 12 volt 100 watt Halogen lamp is 3350K so that's going to be quite a different look on screen.

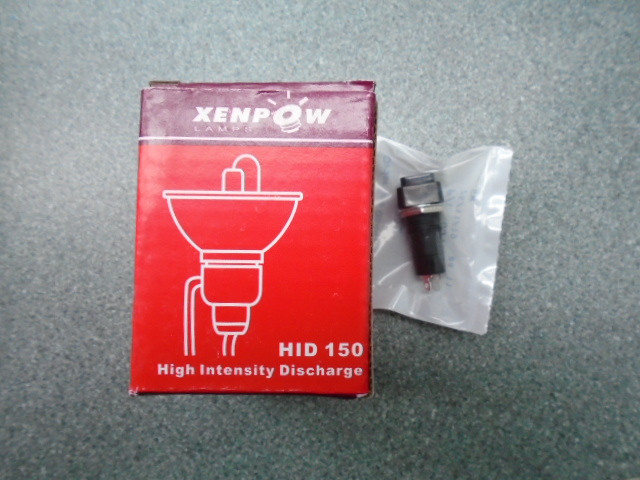

    Click image for larger version  Name:	DSC04860.JPG Views:	0 Size:	90.1 KB ID:	12050 One HID lamp and one 240V on off push switch

    I'm probably going to use a Bolex S8 sound projector as a suck it and see project, then if it works satisfactory alter one of my loved Eumig 807D machines.

    Part 1. Order a HID 150 High Intensity Discharge lamp costing around £65, Ballast to drive it £58 Ventronic 150w and a mains on off switch 45p.

    I think the first two problems to surmount will be making a dowser to block heat from the lamp damaging the film when not in motion and I'm guessing extra lamp cooling is going to be needed as well.

    Watch this space!

  • #2
    I must stress that the Xenpow HID 150 lamp cannot be switched on and off like a conventual lamp at the end of each reel change. It has to stay on for the duration of the show. Therefore, it needs a dowser to completely block the light during the change of spools.

    But as Lee says, a more significant problem will be cooling. Most 8mm projectors seem to use a 100watt lamp. The HID emits 150watts of light and, of course, 150watts of heat. And as stated above, the lamp will stay on for possibly an hour or even more.

    I suggest that anyone considering such a conversion should choose a 8mm projector with a 150 watt lamp, or even better, the 200watt of the Elmo GS-1200. This suggestion would probably negate the need for extra cooling.


    Maurice
    Last edited by Maurice Leakey; June 18, 2020, 10:21 AM.

    Comment


    • #3
      It should probably be wise to use a projector that has a permanent fan in use or to modify the existing system to make it cooling without break.

      Comment


      • #4
        I'm already formulating ideas for a switchable dowser in out to protect those valuable frames from frying, also a powerful fan which will be permanently on and although the humble Eumig does have permanent cooling it wont be enough for this job. Something along the lines of the HTI Beaulieu style fan would be ideal.
        Lets not forget Eumig did actually modify a 810D to Xenon in prototype form 😍 You have to love a Eumig.

        Comment


        • #5
          Wouldn't it be great if we can get the sort of light output of HID lamps (or 200W / 250W halogens) from an LED? Perhaps it'll happen in the future. There shouldn't be any need for a cooling fan at all with LED.

          Comment


          • #6
            Here's the Eumig 850 :-

            https://www.filmkorn.org/super8data/.../eumig_850.htm



            Maurice

            Comment


            • #7
              Those Marc 300 power supplies weighed as much as the B&H 16mm projector fitted with it, I used one once and had to put it away after!!!
              Last edited by Brian Fretwell; June 18, 2020, 02:16 PM.

              Comment


              • #8
                There is a great advantage in using the Xenpow HID 150 lamp.
                As its colour temperature is somewhat around that of the sun there is quite a lot of blue in it. This is a great assistance when showing faded prints on old Eastmancolor stock.


                Maurice

                Comment


                • #9
                  Yes the Xenon 850 was a real projector and Dad and I got to see it at the Kent photo show. It was either 1976 or 77 bit foggy on date. Impressive to look at and the stand eumig had was something to behold, along with Noris and others. Memorable.
                  Oh and Fuji were also there promoting its film.

                  The LED lamp will eventually happen John it's already changed the way we film video in the trade along with stage and tv.

                  Project update: Ballast is up for delivery and I've a plan for a mechanical link to move dowser in and out.
                  Last edited by Lee Mannering; June 18, 2020, 01:42 PM.

                  Comment


                  • #10
                    I believe a modern day film projector would be shutterless: a solid state pulsing power supply would turn the LED lamp on and off in sync with the film transport. It would flip from "two blade" to "three blade" automatically.

                    -just maybe we could have color compensation for red prints, but maybe in a world where we could buy a brand new machine now, we wouldn't be projecting red prints too.

                    Comment


                    • #11
                      Steve
                      Were you aware that Philips pioneered a shutterless 35mm projector, the FP20, which actually had a pulsed lamp?
