Regular 8mm Projector Recommendations for Archival Film Screening

[John Capazzo]

Missing gates are more common than a missing pressure pad. I have acquired many dual 8 machines over the years. Some remove the pads and end up breaking the claw when the dot isn't at 12 0'clock. A broken claw is not fun to replace as I have done so. I still enjoy running my regular 8 sound prints on either my 824 D or 804 D.

[Brian Fretwell]

With those projectors I also check by eye by the gate to see that the claw if fully retracted, just to make sure. It is easy to see,

[Brian Virostek]

I looked more closely at the interchangeable sprockets of the Mark 8 and found them less solid in their construction and in their registration to their respective shafts than I had hoped.

From the postings in this forum and over in the Film Tech forum, most people prefer the efficiency of the halogen bulbs, but the transport of the older silent film machines. This has me thinking of a modification.

In fact, there is a projectionist/mechanic here who put a Xetron lamphouse from a 16 mm Bell and Howell JAN onto a 8 mm Kodak or Keystone. With the proper lens, such a set up could help create a larger, brighter projection.

Would anyone be able to comment as to how Xenon bulbs compare for heat and efficiency?

I will have more information about the desired size of the audience and the room soon. There are certainly issues about how to present the work in a way that approaches how the artist presented this work. As they were shot on 8 mm, an intimate format, some of that intimacy will be lost in a larger room, a more distant screen, and with more people. It is true that when this avant-garde filmmaker would screen his films for classes at NYU in the 60s, he would go into the projection booth (for 16mm) and throw the film out of focus or turn the projector on its side to experiment with the image and to see how his compositions were working an abstract level. That is to say, he was open to experimentation in projection in the context of research. However, he regarded video and digital transfers as something quite different, like looking at reproductions of Jackson Pollack paintings in a book: extremely useful as a reference or to reach a wider audience, but removed from the work itself. It is just one point of view, but the point of view of the maker of the art we are attempting to present.

I appreciate all of your input, the precise information is useful as are the subjective opinions. I am enjoying the discussion.

[Joseph Banfield]

Brian, if what you are looking for is the perfect standard 8mm projector, it simply does not exist period. There is always going to be a compromise with any projector, especially standard 8mm. You have more options with Super 8 machines, but far fewer with standard 8.

You're now discussing using Xenon lamp modifications but at the same time wanting to keep the room intimate and not too far from the screen. With 8mm and even Super 8mm a certain distance is always going to be neceassary to perceive a reasonable sharp image on screen...there are no work arounds for that, not even in a cinema! The people in the last row will always perceive a much sharper image than those in the front row. And using more light is not going to change anything other than brightness...it will always be the distance from the screen that will determine perceived quality and sharpness, especially with standard 8mm film. Like I mentioned earlier in a post, the larger the image you project in any film format requires the seating to be moved further back from the screen or you just see a grainy unpleasant image. No extra bright lighting or film projector quality will ever change that...in fact if you're looking for something intimate a brighter light may not be the best choice unless you are projecting a larger than normal image with the seating much further away from the screen. I suggest a projected image of no more than five feet across with seating about 15 feet from the screen for the closest row and a totally dark room. Without a totally dark room you are going to get terrible contrast like in the old days in school during a film with far too much ambient light entering the room through the windows...it's only when the room is totally dark that you perceive excellent contrast, which is why cinemas always go totally dark during projection.

[Martin Davey]

Its probably better just to project the footage from a digital source via a modern LCD or similar projector. It will make your life and everyone else's simpler, and give you a large image that can be seen in many conditions and suit any size of audience, and suit your art 'installation'. Leave the original footage well alone as it is valuable. Dealing with cine projectors always have a slight risk even with those experienced in running them, but when inexperienced people get involved you're asking for trouble. As the post above says you won't find a machine able to do that task. Rebuilding machines to a different specification is really not an option as its like changing a mini into a four door estate car, changing every single part in the process. Standard 8mm was designed for living rooms.

[Thomas Dafnides]

I remember in the 60s, we projected 8mm/super 8 films during a student film festival on a 6 to 8 foot wide screen in an auditorium with at least 500 people. The images were beautiful. They were standard projectors with 12v 100 watt lamps. One was a Noris.

[Nantawat Kittiwarakul]

Still 2 unanswered (and VERY important) questions.
- How many audience expected to attend?
- What's the screen size? More info about the viewing condition would be very useful also.

Most, if not all, regular/dual 8 projectors were designed for home viewing. That translates to 3-5ft screen for no more than 5-10 people. That could be stretched to 5-10ft max screen size (and in ideal viewing condition) for 50 people - a very stretched condition. May have to keep this in mind too.

With these questions unanswered, it's still impractical to get definite decision.

If it turns out that you need to show the work to, for example, 200-250 people on 15' screen in normal lighting condition all day long or so, then forget it - no 8mm projector in the world is capable of that task. That's why it's ABSOLUTELY NECESSARY to have these questions answered first.

[Nick Regan]

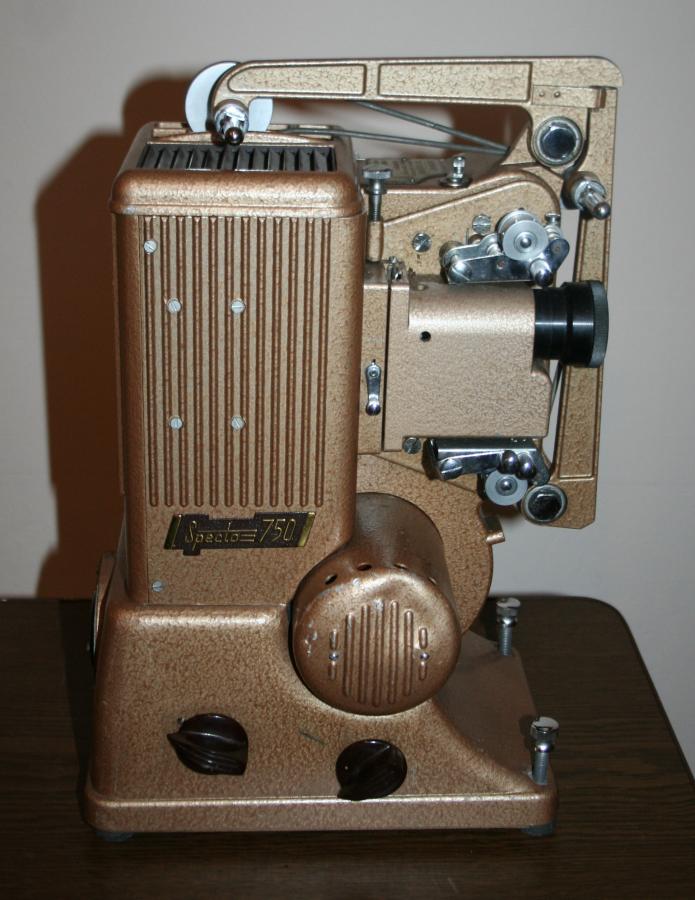

If you can find one there is a Specto 750 silent 8mm projector, looks good, same output (or more) as some 16 mm machines. Uses a 220v 750w lamp. These unfortunately are getting rarer but are still around.

http://www.pathefilm.uk/95gear/95gearspecto.htm

I have had a couple of these machines the later 8 mm format. Great piece of gear

Nick
