Hanimex dualmatic 500

[Ian Morris]

Hi All.
i have resurrected a Hanimex Dualmatic and have no instructions. Can anybody describe the film feed process please?

[Nantawat Kittiwarakul]

Although I've never own this projector before...

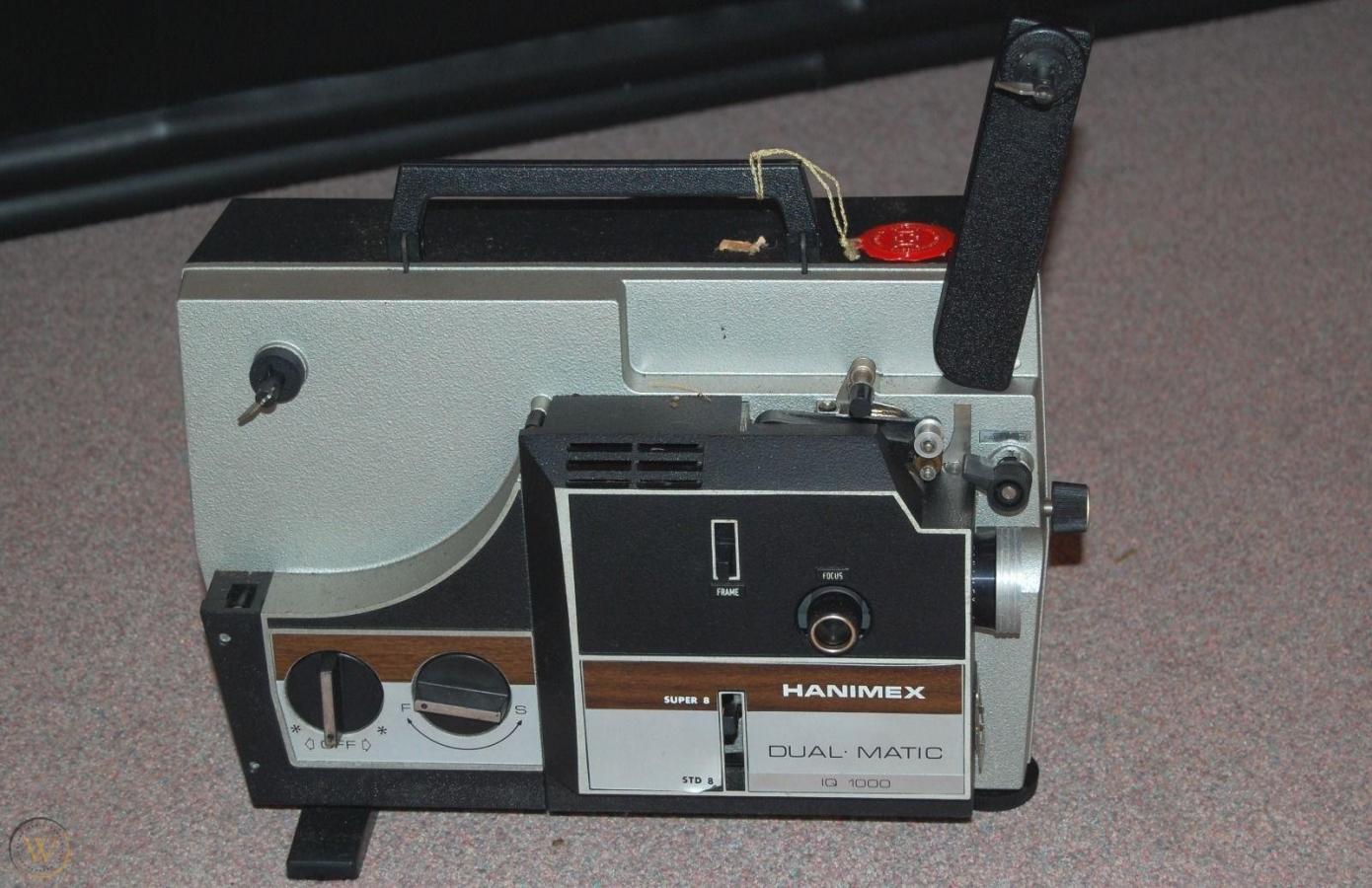

But judging from the picture, I believe I can figure it out somewhat.
To thread the film:
1.Rotate the main control knob (leftmost in the pic) ccw to first click. Motor should turn on, but no lamp.
2.Insert the film BETWEEN the first roller pair on the front, and ABOVE the second spring-loaded roller. Then push it into the film gate.
3.If all OK, the film should start to be drawn in automatically.
4.When the film exits from the rear into the take up reel, rotate the knob to the next click to project. The lamp should lit up by now.
5. The next knob is for varying the running speed of the projector. The rest controls are self-explanatory.

[Tom Dennis]

Good day IAN, regarding your request for an instruction book. This machine was sold under several different brands. I have an instruction leaflet for the same machine sold in U.K. as Boots Dichroic 2000. I can e-mail to yourself should you wish. Please PM me if so desired

Regards Tom,
