Bolex H8 Reflex Camera Question

[Richard Bock]

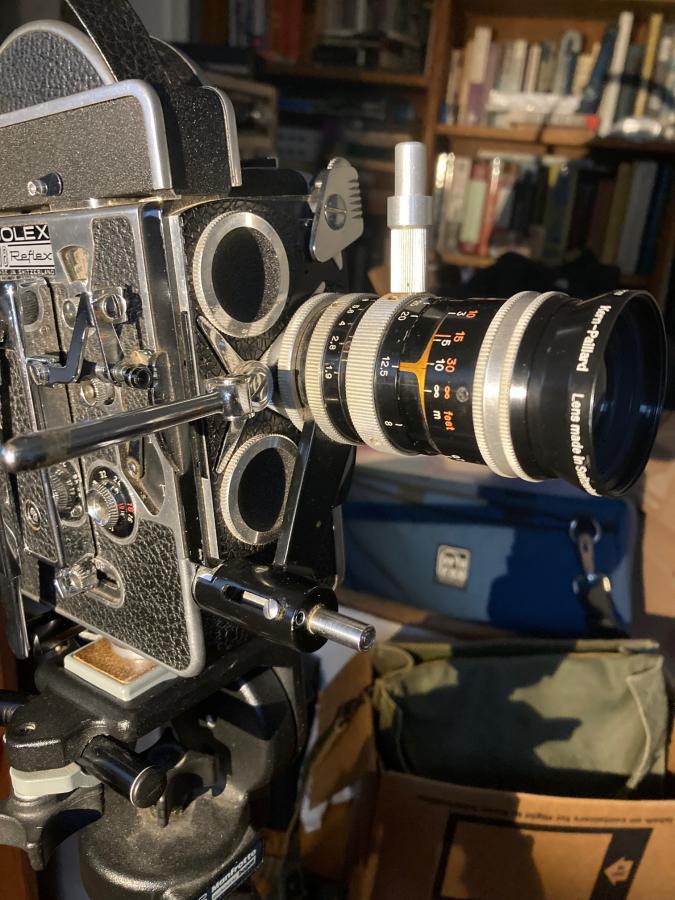

What luck, I found a beautiful 8mm Bolex H8 Reflex in excellent condition and bought it for a song on Craigslist. A bit crazy I know as film is so expensive these days. However I'm going to shoot some with it..I need to detach the zoom lens (VarioSwitar 36 (8 - 36/1.9-D-Mount) to clean it but I am not sure how to get the lens off. It looks as if I have to unscrew the sleeve around the trigger but want to make sure.. Anyone know how I go about it or a website that will tell me? Let me know if you need more pics.

[Maurice Leakey]

Richard
Have a look the following:-
Bolex Collector | Cameras | H-8 REX
It does look as if your camera's release button has undergone some form of attachment which is not original.

[Douglas Meltzer]

Richard,

Congratulations on getting your Bolex. You can download the manual for the H8 here.

I used to film with a 16mm Bolex that used C-mount lenses. I recall being able to screw the lenses directly onto the turret.

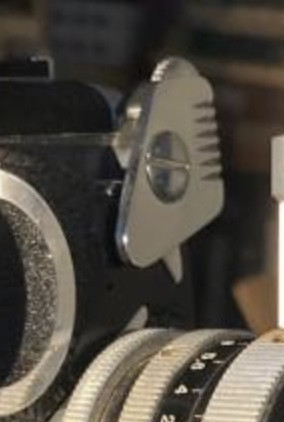

It looks like the turret locking clamp (top right) is in the "lock" position.

[Richard Bock]

Thanks Maurice. I did find on a Euro Ebay page the lens that is mounted on my camera. As you can see it's all fused together and is made especially for the Bolex, as it slips right over the trigger. It is described in the Ebay page as being rare.

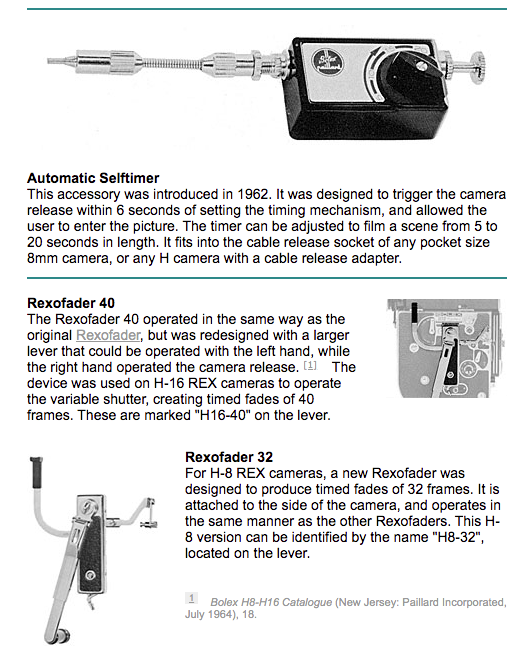

Also thanks for the link as it describes the Rex O Fader and the Automatic Self Timer which came with the camera I bought



http://www.bolexcollector.com/accessories/misc60.html#4

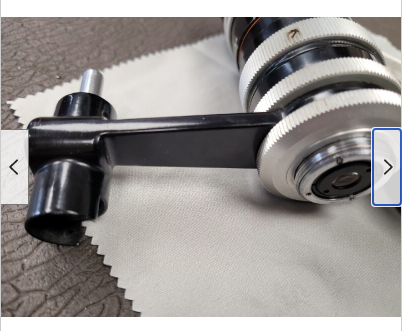

Also thanks Douglas, luckily the camera came with the manual but doesn't mention this somewhat 'rare' lens. Here's the link for the lens on Euro Ebay. With broken Iris blades it's still selling for $550/ There oughta be a law!

https://tinyurl.com/mr22vkzv

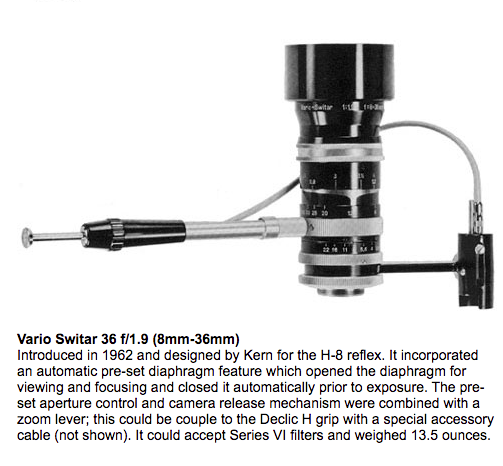

Here's another description of this lens (but not how to mount and dismount-still looking!)

[Richard Bock]

Found the answer in case someone has similar question, which is quite simple...the base of that lens has a silver knurled ring. Simply turn it counter-clockwise to remove the lens. And the trigger part is not attached but slips right off/ I had to use a hand wrench to GENTLY move that knurled ring as time seems to have fused it somewhat to the turret.
