  • Elmo ST-600D belt problem

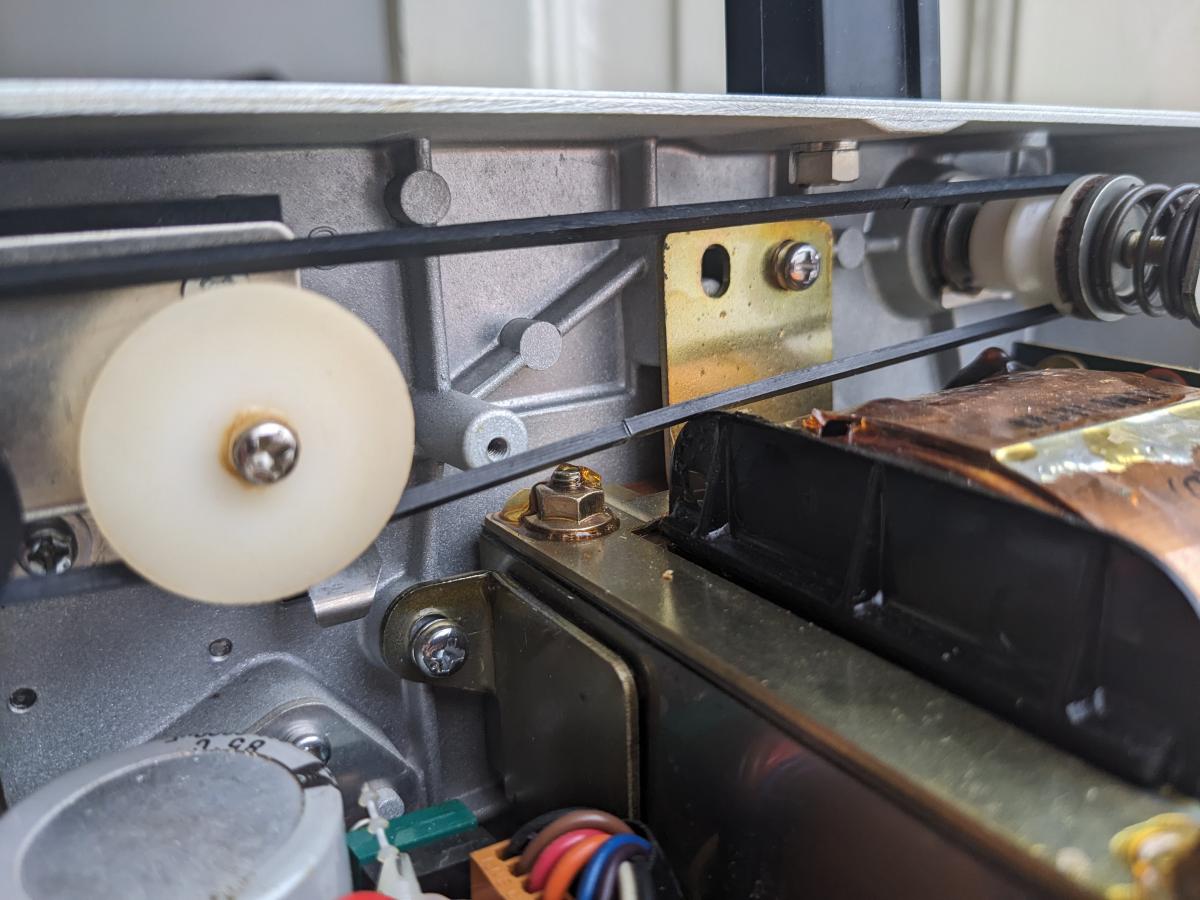

    I got an Elmo ST-600D with broken belts so I was going to replace them. However, the belt for the take up reel is touching the transformer. It doesn't look like anyone's ever taken it apart and screwed it back wrong so how can this be happening?
    Click image for larger version  Name:	PXL_20230722_110702380.jpg Views:	0 Size:	144.3 KB ID:	84347
    Click image for larger version  Name:	PXL_20230722_110708710.jpg Views:	0 Size:	112.8 KB ID:	84348
    Last edited by John Bakker; July 22, 2023, 05:21 AM. Reason: Typo

  • #2

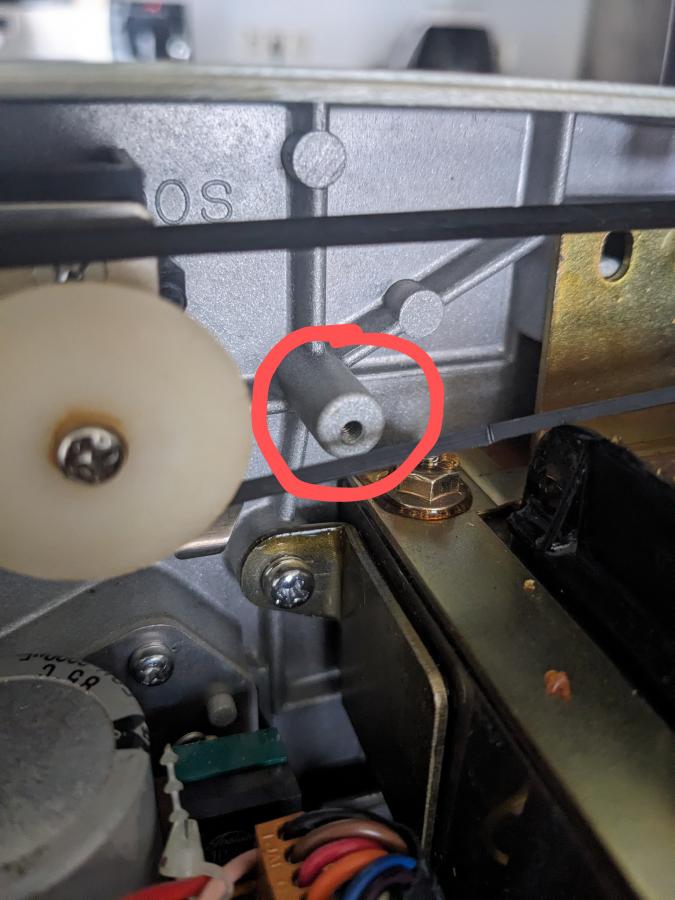

    Just noticed this screw hole. Shouldn't there be a guide roller which takes the belt up and away from the transformer?

    Click image for larger version  Name:	PXL_20230722_113943942~2.jpg Views:	0 Size:	65.7 KB ID:	84351

    Comment


    • #3
      Doh!
      Never mind, it should go OVER the middle guide roller
