    Hello GS1200 Fans,

    First of all, special thanks for Bill Parson and J-C (From French Forum "Le Transfert De Pellicule") who supplied me with very valuable informations to allow me to achive quietly this project.


    Here is the NEW BOARD installed in a GS1200 :




    New Board is based on BA6301 I/C which is easier to find on components market. Connectors are common MOLEX 3.96 Plugs , very easy to find .(Original Board To Board MOLEX Connectors are not easier to find at a good price and often time stock is depleted).

    Card used is Epoxy FR4 material (Fiber reinforced) , dual tracks.
    Both Trim Pots are 10K fine adjustment to allow a precise speed setting.

    An other view of the card :


    The new card has worked fine at first Test , for 18 and 24 Fps as well.

    The new card is Directly Interchangeable with former ones.
    As necessary, New card is easy to repair, BA6301 I/C is just clipped on !!



    The "ESS Mode" has not been tested yet , this will come soon..........


    Happy Christmas to All

  • #2
    Bravo!!!!

    Comment


    • #3
      I don’t have a GS1200 and I still think this is great!

      It’s the kind of thing that needs to happen to keep this hobby going!
      Last edited by Steve Klare; December 15, 2019, 06:22 AM.

      Comment


      • #4
        Hello,

        Thanks for your comments.

        For information , this New Board has just been tested in "ESS" mode and it's working fine too.

        To Follow

        Comment


        • #5
          That's great Phil, well done on your efforts, Mark

          Comment


          • #6
            During miscellaneous Tests performed, I take this oportunity to report what I observed for the GS1200 :

            Available Speed Range in 24 Fps mode ==> From 21,52 Fps to 27,40 Fps
            Available Speed Range in 18 Fps mode ==> From 16,57 Fps to 19,87 Fps

            Nominal "Still" Speed : 6,91 Fps (Can be adjusted)

            Nominal (24 or 18) Speeds Fluctuation observed : +/- 0,04 Fps

            Speeds were recorded with I/R sensor fitted on shutter blades.

            To be continued....................

            Comment


            • #7
              This is a very good Option for the GS 1200. Some Years ago I copied this Board with the BA6301 too.

              Comment


              • #8
                Hello,

                I am still working on this project :

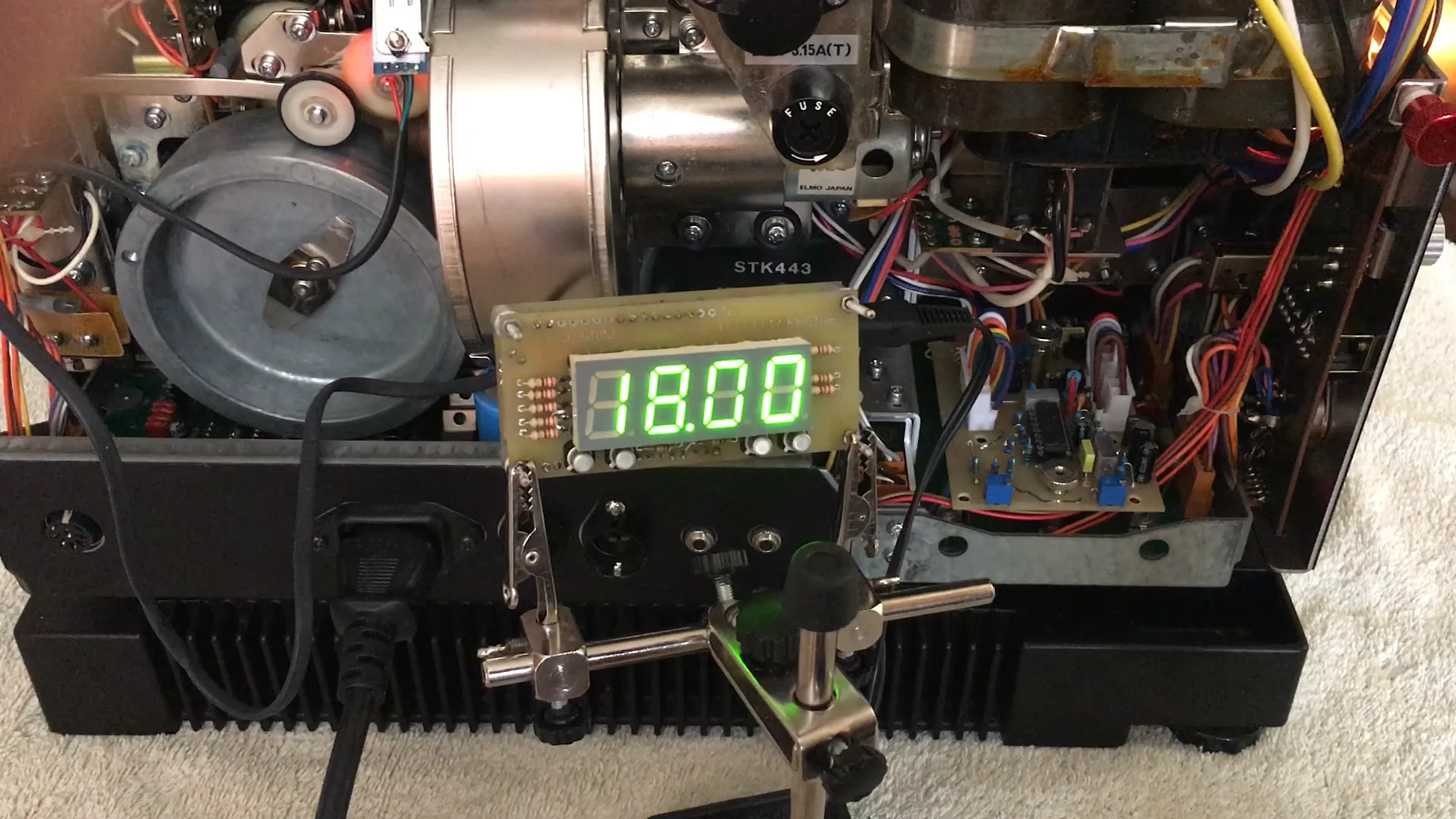

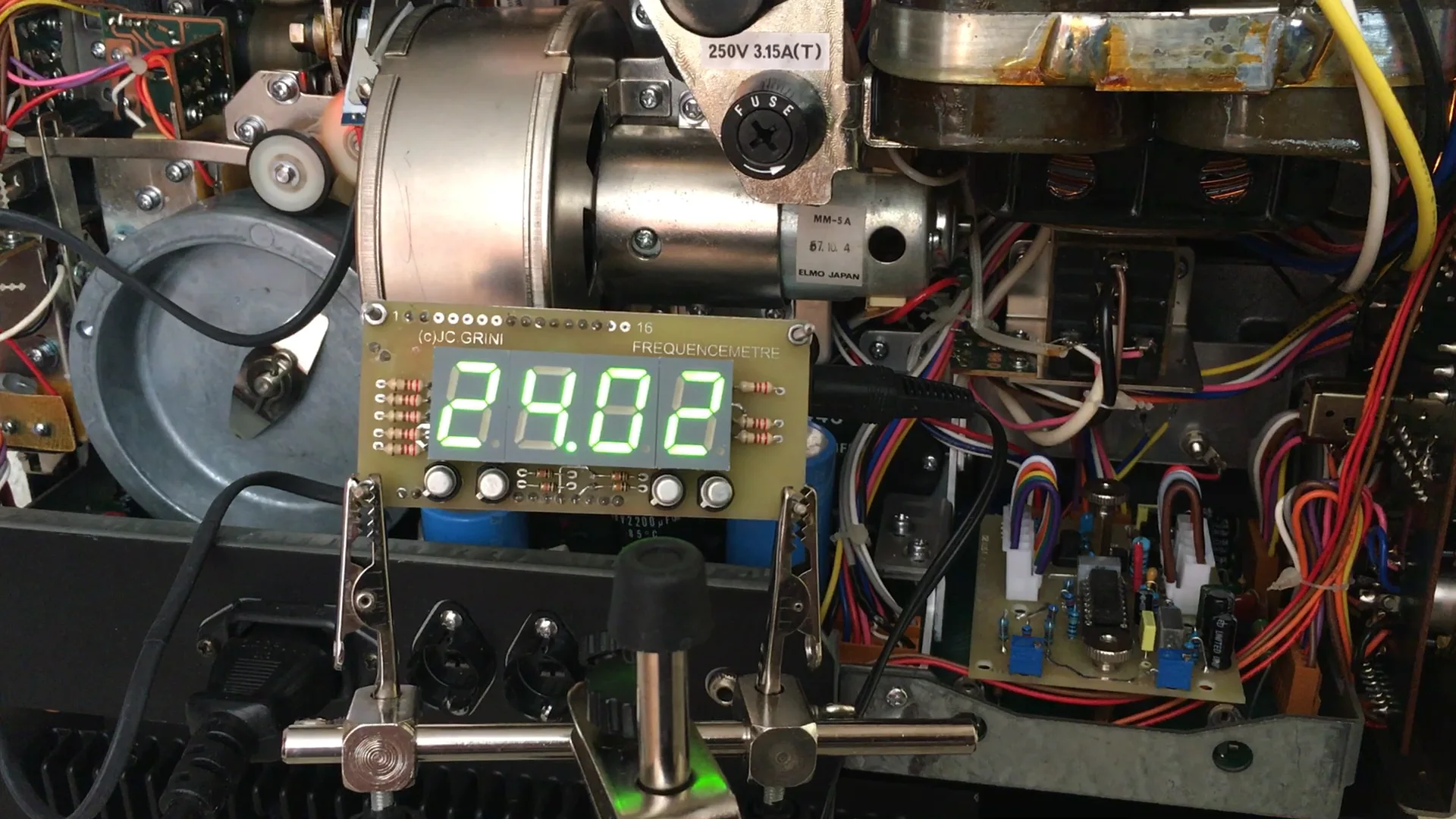

                Here are some videos concerning Board testing , 24 and 18 Fps, ......... Very steady Speeds (New board is installed in a GS1200 PCOM for these tests)!!
                Observe Mini / Maxi speed fluctuation is .........0,04 Fps for Nominal 24.

                24 FPS



                18FPS



                As projector was running (for 24 or 18fps as well) , I applied a good pressure on Main motor shaft (with 2 fingers) , attempting to break down speed and the board immediatly compensated.....



                Tests were realized with a Special Low Speeds "Frequencemeter" which has been designed (by J-C Griny ; French Forum) for films projectors (Range from 1 to 100 Fps, so 1Hz to 100Hz).
                Accuracy is 2 numbers after dot !!
                Last edited by Phil Murat; April 03, 2020, 12:16 PM.

                Comment


                • #9

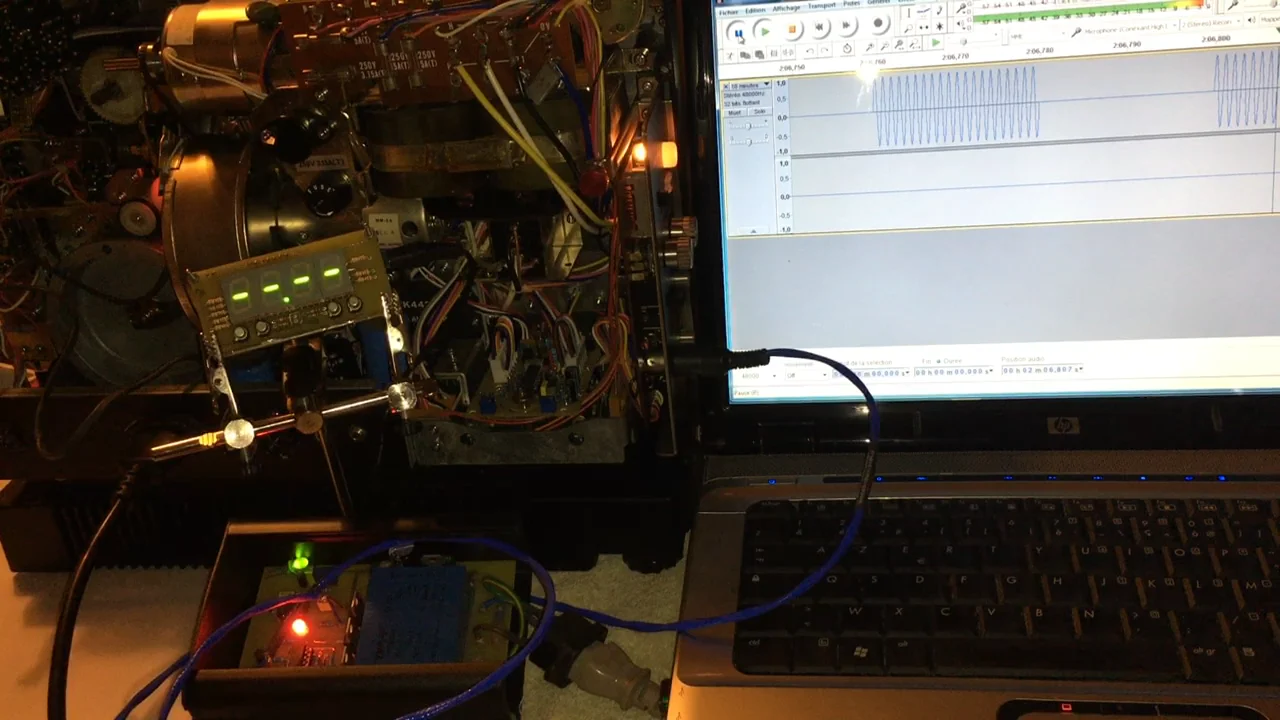

                  New Test in ESS Mode at 25Fps, same machine. Synchro Box on left side of Lap Top has been designed by Leon (French Forum) .

                  Very limited fluctuation : 25 +/- 0,02 Fps

                  25Fps / ESS Mode

                  Comment


                  • #10
                    hello ,

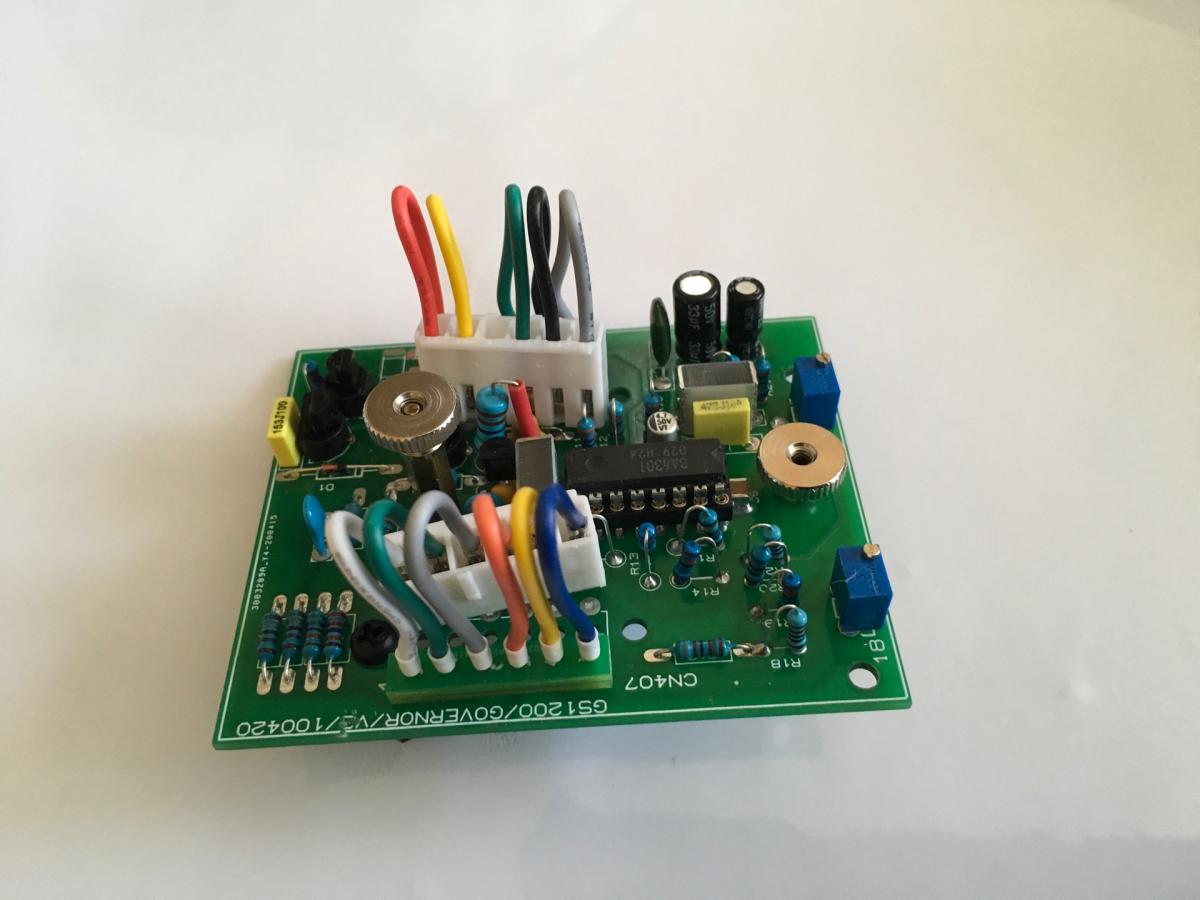

                    I am happy to introduce you PCB BA6301V3
                    Cards I released before were good ...............but V3 PCB is much better :

                    Many upgrades for a top notch result. ............... Plus something new which I'll introduce later .
                    Card shown is a V3 test card , fully workable, but not complete)
                    Project V3 is the last one , there is no more upgrade planned.

                    All improvement will be detailed in a few weeks......

                    See you soon.

                    Click image for larger version  Name:	BA6301-V3.ORI.JPG Views:	0 Size:	72.4 KB ID:	8417
