Topic: Bolex 18-5L Replacement Label for Front Cover

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted April 27, 2016 08:39 PM

Send New Private Message

Edit/Delete Post

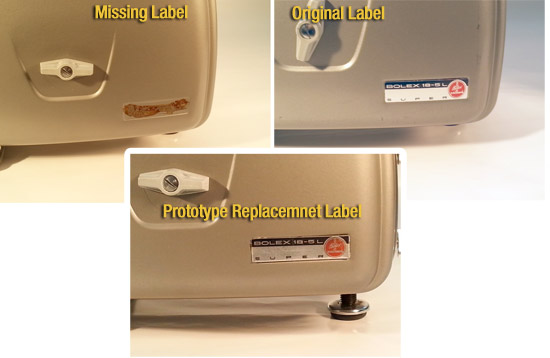

I have two Bolex 18-5L Super 8 projectors. One has the nice front cover label ... the other does not. The missing label is very common on these machines. Bolex must not have used very good glue on this part. For a long time I've been thinking about a way to create a new label. I made a prototype today and it came out pretty good. I'm going to work on cleaning it up and refining it a bit, but I think the proof of concept worked.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 27, 2016 10:35 PM

Send New Private Message

Edit/Delete Post

Well done Janice! I wonder if there is any way that you can get that printed onto a thin metal plate? Perhaps a place that makes trophy's and awards could do it at an affordable price.
My 18-5 also suffered from the label falling off, but fortunately I was around when it happened. I glued it back on with Scotchweld 2216 epoxy, so its in place forever!

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted April 28, 2016 01:45 AM

Send New Private Message

Edit/Delete Post

Paul...That's pretty much what I've done myself. I used a piece of scrap sheet metal for this test. In the next version I will start with a nicer sheet of metal and darken up the printing a bit. I think it will look great.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Pasquale DAlessio
Film God

Posts: 3523
From: Bristol,RI, USA
Registered: May 2010

posted April 28, 2016 01:48 AM

Send New Private Message

Edit/Delete Post

Great work as always Janice. I have done that with other projectors. Counterfeiting is fun at times. But I'm not going to move on to money!

| IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016

posted April 28, 2016 06:21 AM

Email Will Trenfield

Send New Private Message

Edit/Delete Post

That's impressive. Labels often come off Eumig projectors as well. They made some other models for Bolex so they must have used the same glue.

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 28, 2016 11:00 AM

Send New Private Message

Edit/Delete Post

Janice,
How on earth did you print on to sheet metal?

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Barry Fritz
Phenomenal Film Handler

Posts: 1061
From: Burnsville, MN, USA
Registered: Dec 2009

posted April 28, 2016 12:51 PM

Email Barry Fritz

Send New Private Message

Edit/Delete Post

I have some extras that I took pics of to see if I could some way duplicate them. Didn't work out that well. If somebody needed these to create duplicates somehow I would lend them to them.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted April 28, 2016 01:33 PM

Send New Private Message

Edit/Delete Post

I PM'd you Barry.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Alexander Vandeputte
Expert Film Handler

Posts: 243
From: Belgium
Registered: Nov 2009

posted April 28, 2016 01:47 PM

Send New Private Message

Edit/Delete Post

Cool Janice ! Since most of the Bolex machines I encounter seem to have lost their badge, I think you could set up a small business here...
If you would have home made labels for sale, you already have a customer here!

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted April 29, 2016 02:05 AM

Send New Private Message

Edit/Delete Post

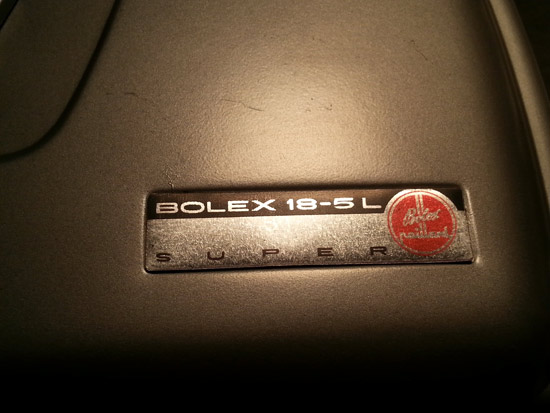

Here is a more finished version of the label. This is still using a slightly brushed finish piece of sheet metal. The printing is much darker and a lot cleaner.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003

posted April 29, 2016 10:56 AM

Send New Private Message

Edit/Delete Post

Awesome Janice!

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

| IP: Logged

Bryan Chernick
Jedi Master Film Handler

Posts: 654
From: Bothell, WA, USA
Registered: Mar 2010

posted April 29, 2016 01:13 PM

Email Bryan Chernick

Send New Private Message

Edit/Delete Post

That looks nice Janice! I've had to re-glue some of my emblems back onto a few of my 18-5's. On a rare occasion emblems come up on eBay when someone is parting out a projector.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted August 19, 2017 01:51 PM

Send New Private Message

Edit/Delete Post

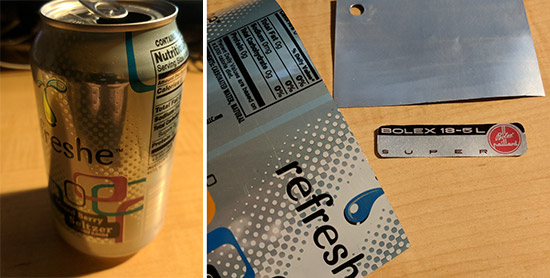

I did a fun experiment using the aluminum from a soda can instead of the thicker sheet metal. The aluminum from the can is so thin it can be cut with scissors or an exacto knife. If handled and cut carefully it can look very good. I always have plenty of cans in my recycle bin [Smile]

[Smile]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003

posted August 19, 2017 11:42 PM

Send New Private Message

Edit/Delete Post

Hi Janice...did you use an ordinary printer? Meaning used ink

Elaborate it please.

Cheers

--------------------
Winbert

| IP: Logged

Richard Whitman
Junior
Posts: 10
From: New Orleans, LA, USA
Registered: Mar 2017

posted August 22, 2017 12:01 PM

Send New Private Message

Edit/Delete Post

I'd also be interested in doing this, or buying a replacement.

| IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011

posted September 02, 2017 06:44 PM

Send New Private Message

Edit/Delete Post

Here's a sample of the labels I've produced so far on the thin aluminum. The most difficult to do are the ones with the rounded logo cutout.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

| IP: Logged
