Author Topic: DIY Eumig 824 Sprocket Storage
Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 19, 2017 03:40 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Anyone with this projector is probably not satisfied with Eumig's "non-storage" solution to storing the sprockets. You can store a gate inside the front projector cover, but not the sprockets. One way...if you have the original sprocket holder plate is to attach the plate some where on the case as Eumig suggests. But what if you don't have the holder plate?

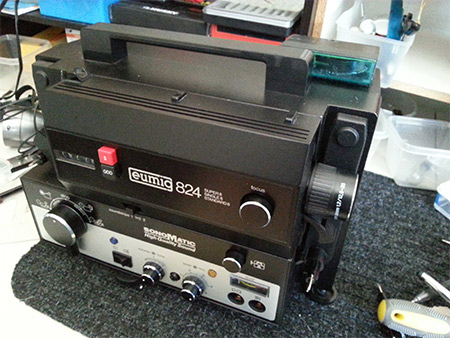

Here is what I've come up with for now until I can find a more attractive box. The box I used came with some toothpicks inside [Smile] . It was just deep enough to house the sprockets and fit the lid.

 -

I Velcroed the box to the top of the back cover and covered the lid with some black electrical tap just to camouflage it a little bit. A black or clear box might look better. Now thinking about it...I could spray paint the box [Smile] I preferred it positioned horizontal on the top rather vertical on a side or back and I still have full use of the handle.

 -

I'm now hoping it less likely to lose or misplace the darn sprockets. We'll see. [Wink] [Cool]

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Paul Adsett
Film God

Posts: 5003
From: USA
Registered: Jun 2003


 - posted May 19, 2017 07:33 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Well done Janice.
I guess I missed something in your 'sprocket saga'. Did your 824 in fact come with all the sprockets and gates, or were you able to locate them on the internet?

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Will Trenfield
Jedi Master Film Handler

Posts: 506
From: Shrewsbury, Shropshire, UK
Registered: Mar 2016


 - posted May 19, 2017 08:31 PM      Profile for Will Trenfield   Email Will Trenfield   Send New Private Message       Edit/Delete Post
I have a S712D with the alternative sprockets and gate housed in a separate plastic box. I was lucky that the box was included, I suppose, when I bought it for less than £16, including shipping, on eBay.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 19, 2017 11:20 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
@Paul...I was very fortunate. My gamble paid off and both the gates and sprockets were on the projector even though listed as missing. The projector just has a few audio issues I'm working on...but in the meantime I came up with this idea to store the sprockets so I wouldn't lose them.

[ May 20, 2017, 12:26 AM: Message edited by: Janice Glesser ]

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Maurice Leakey
Film God

Posts: 5895
From: Bristol. United Kingdom
Registered: Oct 2007


 - posted May 20, 2017 05:27 AM      Profile for Maurice Leakey   Email Maurice Leakey   Send New Private Message       Edit/Delete Post
Janice
Your box looks great, almost as if it was supplied by Eumig. [Smile]

--------------------
Maurice

 |  IP: Logged

Brian Fretwell
Phenomenal Film Handler

Posts: 1785
From: London, UK
Registered: Jun 2014


 - posted May 20, 2017 05:28 PM      Profile for Brian Fretwell   Email Brian Fretwell   Send New Private Message       Edit/Delete Post
It looks as if the frame counter has taken up the space that is used for sprocket storage in the 710D model. The are clipped to projections in the front cover behind the lamp.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3468
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted May 30, 2017 02:30 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post

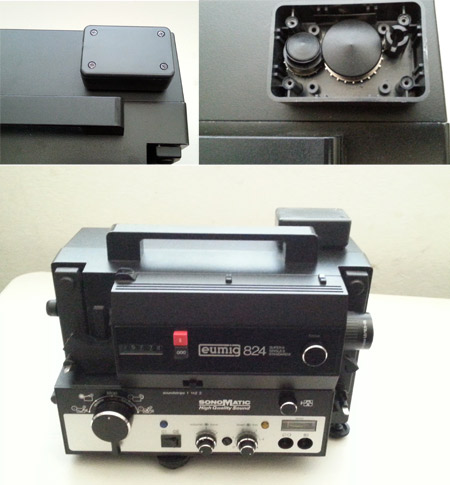

I've refinded my storage solution a little further. I ended up buying a small electronics project box. The top on the toothpick box would not fit tightly, but the top on the project box can be secured with screws and it also looks better.

 -

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Steve Klare
Film Guy

Posts: 7016
From: Long Island, NY, USA
Registered: Jun 2003


 - posted May 30, 2017 02:37 PM      Profile for Steve Klare   Email Steve Klare   Send New Private Message       Edit/Delete Post
Nnnnice!

-An old friend of mine always said "Anything worth doing is worth doing well".

--------------------
All I ask is a wide screen and a projector to light her by...

 |  IP: Logged

Andrew Woodcock
Film God

Posts: 7477
From: Manchester Uk
Registered: Aug 2012


 - posted May 30, 2017 03:15 PM      Profile for Andrew Woodcock         Edit/Delete Post
That's much more secure Janice. Good Job! [Smile]

--------------------
"C'mon Baggy..Get with the beat"

 |  IP: Logged

Clinton Hunt
Jedi Master Film Handler

Posts: 845
From: Waharoa,North Island,New Zealand
Registered: May 2010


 - posted May 30, 2017 07:10 PM      Profile for Clinton Hunt   Author's Homepage   Email Clinton Hunt   Send New Private Message       Edit/Delete Post
Well done Janice,the Eumig people should've done something like that from the start.So many projectors are turning up without the other sets of sprockets etc.

--------------------
Cheers from me in New Zealand :-)

 |  IP: Logged

Adrian Winchester
Film God

Posts: 2941
From: Croydon, London, UK
Registered: Aug 2004


 - posted May 30, 2017 07:57 PM      Profile for Adrian Winchester   Email Adrian Winchester   Send New Private Message       Edit/Delete Post
Compliments on a smart solution. My 824 came in the original box and fortunately had the sprocket holder plate, but it's difficult to find a good storage place even inside the box.

One tip I'd offer to people obtaining an 824, or any projector, in the original box: I initially thought my sprocket holder plate had been lost long ago, but as a last resort I looked under the polystyrene section at the bottom, and I found it there! That's not the only time I've found a small missing accessory underneath the lower polystyrene of a box.

--------------------
Adrian Winchester

 |  IP: Logged
