Author Topic: REVIEW: Van Eck Eumig 900 Series Wormwheel
Paul Adsett
Film God

Posts: 4889
From: USA
Registered: Jun 2003


 - posted March 11, 2019 11:11 AM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
My Eumig 938 has been making more noise than usual of late, and I suspect that the main plastic wormwheel on the drive shaft may be the culprit. I have a similar situation on my old 926G Stereo, which really makes a racket. So I decided to purchase one of Edwin Van Eck's replacement worm wheel's manufactured by the additive 3D printing process. I decided to do a 'trial run' on the 926GL before attempting the illustrious 938.
I ordered the part from Edwin in late December, but by the end of February it had not arrived. I emailed Edwin and they immediately sent another part via Deutche post, which arrived within 10 days.

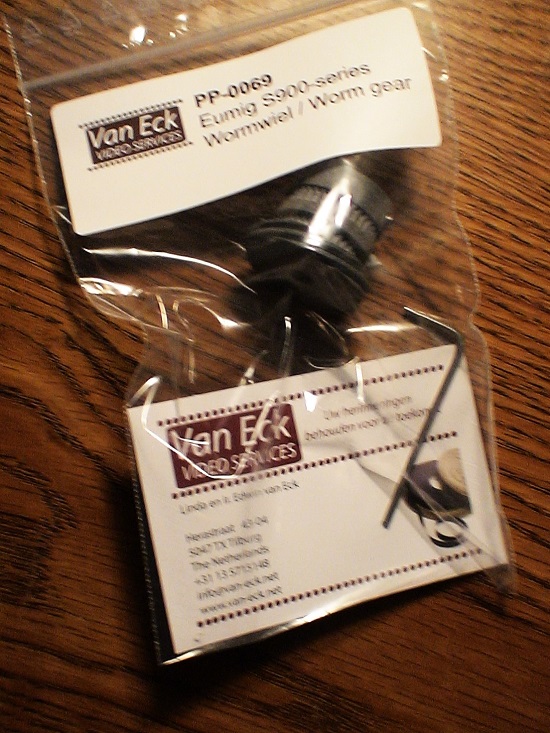

So here is the kit as received, which includes the 3D printed worm gear and the hex socket wrench for the set screws on the part.

 -

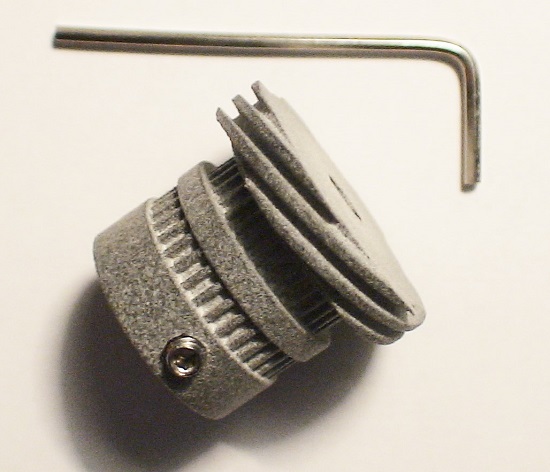

A close look reveals the surface finish of the part which, like all 3D printed parts, cannot attain the smooth polished surface finish of injection molded plastic parts. The part seems to have some filling fibers in the printing material, no doubt for additional structural strength.

 -

Inherent in Eumig's original design of this worm gear is the very thin feathered section of the gear thread at the transition points to the outer faces of the hub. In fact some of the thread actually broke away when I pushed on it. This is not a show stopper, all I had to do was file off a bit of the threads and round it off to eliminate the extremely thin cross section at the hub interface. Maybe Edwin can modify his CAD model to eliminate this issue on any future parts. Lets face it, this is another example of Eumig's poor engineering of plastic parts which are usually way too thin in cross section, and are designed more like metal components.

For the replacement operation I followed Edwin's excellent YouTube video:

https://www.youtube.com/watch?v=8HGUY2mnSRA

I found this video invaluable, although I did not find it necessary to remove the flywheel housing and the flywheel, so the exact procedure might be slightly different between the various 900 series projectors. In order to remove the worm gear it is first necessary to remove the transformer, the idler pulley system, and the spring loaded inching knob:

 -

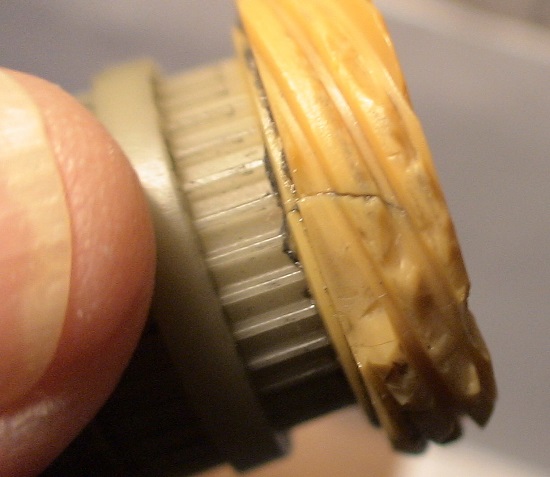

Here is the condition of the original worm gear as removed from the 926.As you can see it has pretty well disintegrated:

 -

Here is the new worm gear installed into the 926GL:

 -

Everything went well until I somehow managed to snap the drive belt when reinstalling it so I will have to get a replacement before I know how quiet the machine now is, although looking at the condition of the original wormwheel I think the new part will work well. Right now, turning the shaft by hand is smooth and quiet.
Let me conclude by thanking Edwin for making this, and many other parts, available for restoring our beloved projectors.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 861
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted March 11, 2019 01:05 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Paul, that part does go! I have one in stock! From van Eck! I repaired two 900 series Eumigs! That was a good move from van eck! I had the machine fixed in minutes!

 |  IP: Logged

Martin Dew
Expert Film Handler

Posts: 198
From: Henley-on-Thames, UK
Registered: Jan 2017


 - posted March 11, 2019 02:00 PM      Profile for Martin Dew   Email Martin Dew   Send New Private Message       Edit/Delete Post
Great post, Paul, thanks. Just took two 938s to Mr White today, mainly because they sounded a little noisy. Hope they don't have worm issues, but I'm sure John will find the source quickly.

 |  IP: Logged

Janice Glesser
Film Goddess

Posts: 3377
From: Sunnyvale, CA USA
Registered: Sep 2011


 - posted March 11, 2019 02:28 PM      Profile for Janice Glesser   Email Janice Glesser   Send New Private Message       Edit/Delete Post
Thank you Paul for a great post. We can never have enough "How-to" threads. I don't have one of these projectors...but owners will definitely benefit from your experience and the information you have shared.

--------------------
Janice

"I'm having a very good day!"
Richard Dreyfuss - Let It Ride (1989).

 |  IP: Logged

Jim Schrader
Phenomenal Film Handler

Posts: 1579
From: Savage, MN, USA
Registered: Jun 2003


 - posted March 11, 2019 07:03 PM      Profile for Jim Schrader   Author's Homepage   Email Jim Schrader   Send New Private Message       Edit/Delete Post
Now if the 16mm b&h’s were this easy

--------------------
jim schrader
"Let's see “do I have that title already?"

 |  IP: Logged

Edwin van Eck
Master Film Handler

Posts: 312
From: Tilburg, Netherlands
Registered: Feb 2015


 - posted March 12, 2019 01:48 AM      Profile for Edwin van Eck   Author's Homepage   Email Edwin van Eck   Send New Private Message       Edit/Delete Post
Hi,

Good to hear our efforts to supply new parts to keep slide and film projectors up and running as long as possible are well appreciated!

Quote from the original post:

"Inherent in Eumig's original design of this worm gear is the very thin feathered section of the gear thread at the transition points to the outer faces of the hub. In fact some of the thread actually broke away when I pushed on it. This is not a show stopper, all I had to do was file off a bit of the threads and round it off to eliminate the extremely thin cross section at the hub interface. Maybe Edwin can modify his CAD model to eliminate this issue on any future parts. Lets face it, this is another example of Eumig's poor engineering of plastic parts which are usually way too thin in cross section, and are designed more like metal components."

I will ask the CAD drawer for this model to update the design.

Also if you encounter parts which frequently break down, please check out our spare part finder: https://van-eck.net/itable.php?lang=en&size=0&cat=all&merk=none&type=none

If you can't find the part you are looking for, please let us know.

Greetings from the Netherlands,
Edwin van Eck
Van Eck Video Services

--------------------
Edwin van Eck
Van Eck Video Services

 |  IP: Logged

Paul Adsett
Film God

Posts: 4889
From: USA
Registered: Jun 2003


 - posted March 28, 2019 12:44 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Yesterday I received a new drive belt for my Eumig 926GL Stereo from Van Eck, so I was able to install it and finally able to test out the now replaced Van Eck wormwheel. I am pleased to report that the 3D printed wormwheel works just fine and the projector is now fully functional and projecting a rock steady picture, While I had the machine apart I also replaced the sound head with another one with less head wear. And I replaced the lamp socket and also added a tension spring to the auto threader lower guide. The machine now performs great, with belting sound.
I must say it is very satisfying to re-furb a projector back to full working order.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 861
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted March 28, 2019 03:59 PM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Paul, your becoming a real pro! It pays to learn and know your machine!

 |  IP: Logged

Paul Adsett
Film God

Posts: 4889
From: USA
Registered: Jun 2003


 - posted March 28, 2019 06:22 PM      Profile for Paul Adsett     Send New Private Message       Edit/Delete Post
Thanks Leon! This particular Eumig was a clunker parts machine until I was able to get the necessary replacement parts from Edwin Van Eck. It is now a projector that can come to life again! [Smile]
The Eumig 926GL is a great performing stereo machine with rock steady picture and superb quality sound, but the coaxial reels are a real pain, so it will never be a favored projector for me. The main problem with the 900 series Eumigs (not the 800's) is the really flimsy design of many of its plastic parts, many of which should have been metal That wormwheel should never have been plastic to start with, it should have been brass.
I now have both my GS1200'S performing well, and I really love the robust build quality and modular layout of the GS. I know many people have commented to the effect that the GS is the Ferrari of super 8 projectors, and they are right. I also love my Eumig S938 Stereo, but I have to limit its useage because the heads wear out fast. No such concern with the GS heads, they seem to last forever.

--------------------
The best of all worlds- 8mm, super 8mm, 9.5mm, and HD Digital Projection,
Elmo GS1200 f1.0 2-blade
Eumig S938 Stereo f1.0 Ektar
Panasonic PT-AE4000U digital pj

 |  IP: Logged

Leon Norris
Jedi Master Film Handler

Posts: 861
From: Elkins Park, PA, USA
Registered: Jun 2012


 - posted March 29, 2019 10:17 AM      Profile for Leon Norris   Email Leon Norris   Send New Private Message       Edit/Delete Post
Your right Paul, the sound heads in the GS1200 do last a long time! I hardly replaced these heads! And remember the same head fits the ST1200 HD Models also! If you keep this up I will be sending you some repair work ? Enjoy!

 |  IP: Logged
