Topic: Sankyoscope, what do you think?

Winbert Hutahaean
Film God

Posts: 5468
From: Nouméa, New Caledonia
Registered: Jun 2003

posted November 16, 2009 12:06 PM

We never discus Sankyoscope, what do you think of its performance?

I found one sold at Ebay at very OK price:

http://cgi.ebay.com.au/Sankyo-Sankyoscope-anamorphic-lens-for-8mm-projectors _W0QQitemZ250508889324

$20.49!!!

Unfortunately I found this after being sold.

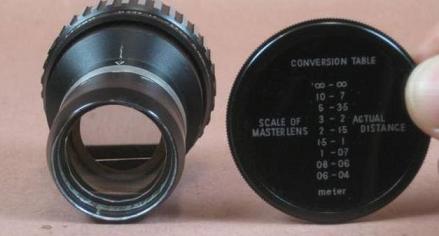

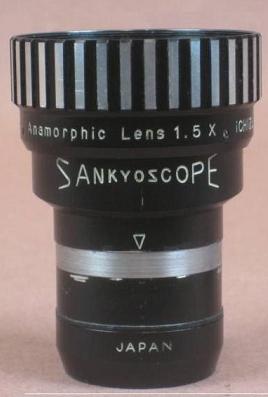

Below are pictures of the lens for reference/archive purposes in case the above link has been removed after 90 days of auction.

So can I have your words regarding this lens, please.

thanks

--------------------
Winbert

| IP: Logged

John Whittle
Jedi Master Film Handler

Posts: 791
From: Northridge, CA USA
Registered: Jun 2003

posted November 16, 2009 02:46 PM

This lens, like many others from the 1960s, were a 1.5 compression ratio which gives you about a 2:1 aspect ratio. Fine if you're shooting and showing the film yourself, but Cinemascope prints are 2x, so the lens won't work for commercial scope prints.

Various others of this type were sold by Bolex and Vistascope (Old Delft). Bolex in both 8mm and 16mm were 1.5x. Vistascope had a 2x 16mm lens for Cinemascope which can be determined by a number on the bottom of the lens.

While I have a similar lens (Yashiascope), I've never used it for projection so I can't attest to it's sharpness. The lens diameter is too small to use on a zoom lens so you're limited to a fixed focus focal length lens for photography.

John
